P0130
Component Description
The front heated oxygen sensor is placed into the front tube. It detects the amount of oxygen in the exhaust gas compared to the outside air. The front heated oxygen sensor has a closed-end tube made of ceramic zirconia.The zirconia generates voltage from approximately 1 V in richer conditions to 0 V in leaner conditions. The front heated oxygen sensor signal is sent to the ECM. The ECM adjusts the injection pulse duration to achieve the ideal air-fuel ratio. The ideal air-fuel ratio occurs near the radical change from 1 V to 0 V.
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.
On Board Diagnosis Logic
Under the condition in which the front heated oxygen sensor signal is not input, the ECM circuits will read a continuous approximately 0.3 V. Therefore, for this diagnosis, the time that output voltage is within 200 to 400 mV range is monitored, and the diagnosis checks that this time is not inordinately long.
Malfunction is detected when the voltage from the sensor is constantly approx. 0.3 V.
Possible Cause
- Harness or connectors
(The sensor circuit is open or shorted. )
- Front heated oxygen sensor
DTC Confirmation Procedure
CAUTION: Always drive vehicle at a safe speed.
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select "FR O2 SEN-B1 (-B2) P0130 (P0150)" of "FRONT O2 SENSOR" in "DTC WORK SUPPORT" mode with CONSULT-II.
3. Touch "START".
4. Let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 3,600 rpm after this step. If the engine speed limit is exceeded, return to step 4.
5. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 10 to 60 seconds.)
CKPS.RPM (POS) 1,400 - 2,400 rpm
Vehicle speed 70 - 120 KPH (43 - 75 MPH)
B/FUEL SCHDL 2.0 - 10 msec
Selector lever Suitable position
If "TESTING" is not displayed after 5 minutes, retry from step 2.
6. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "Diagnostic Procedure" below.
During this test, P1148 and P1168 may be stored in ECM.
Overall Function Check
Use this procedure to check the overall function of the front heated oxygen sensor circuit. During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM terminal 63 (Right bank front HO2S signal) or 62 (Left bank front HO2S signal) and engine ground.
3. Check the following with engine speed held at 2,000 rpm constant under no load.
- The voltage does not remain in the range of 0.2 - 0.4 V
4. If NG, go to "Diagnostic Procedure" below.
Wiring Diagram
EC-FRO2RH-01:
EC-FRO2RH-01 - Connector View:
RIGHT BANK
E87, E89, E83, B5, M17, M18, M19 Connector Views:

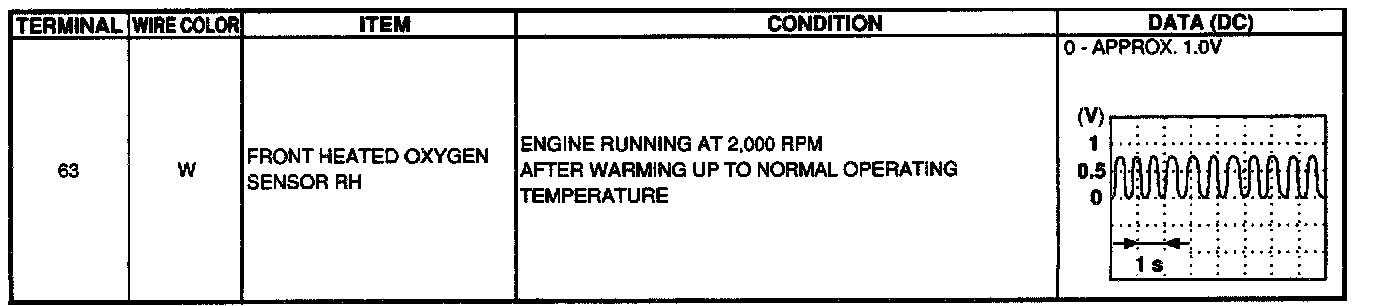

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 48.:
Diagnostic Procedure
