DTC 61

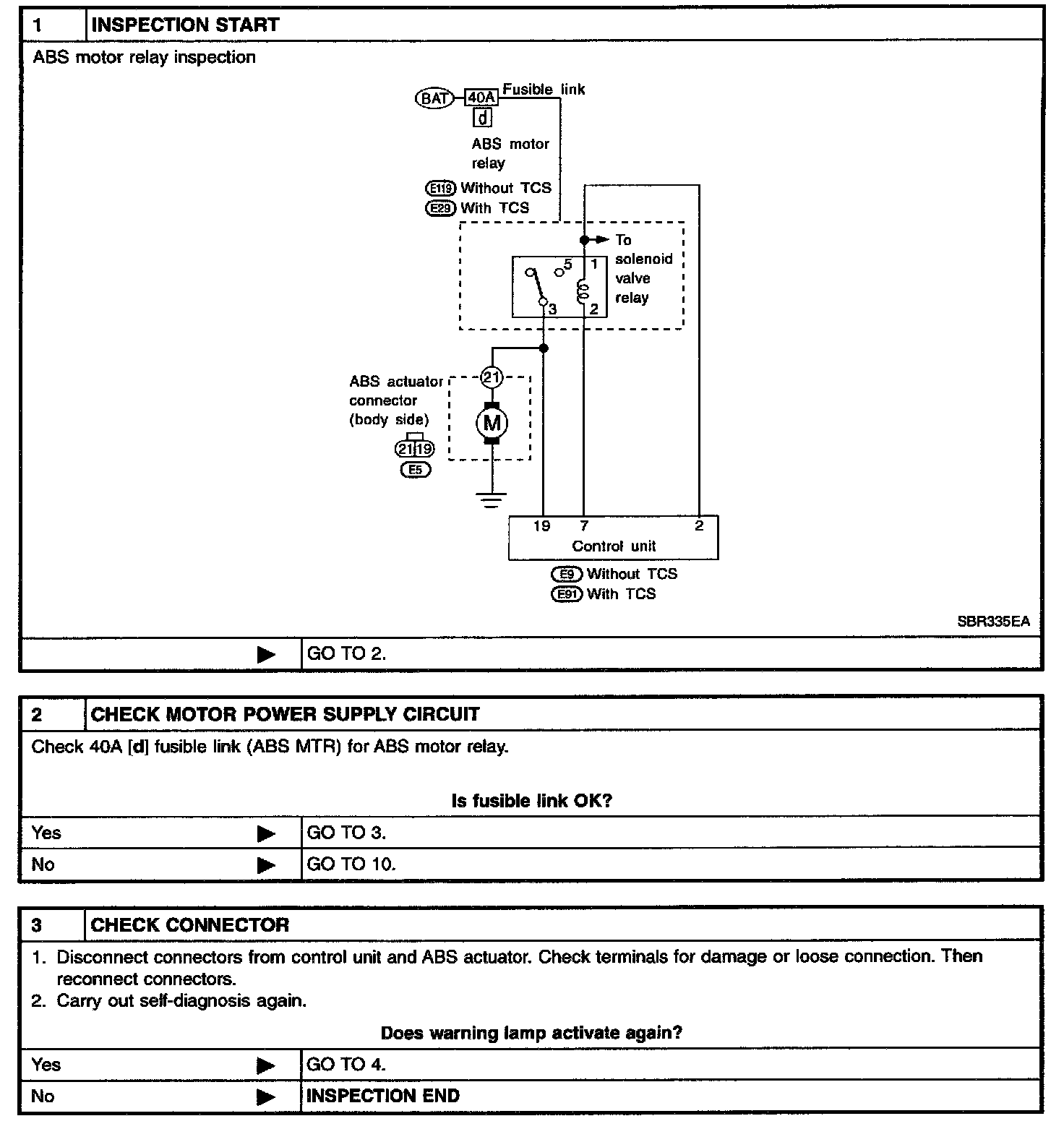

Steps 1 - 3:

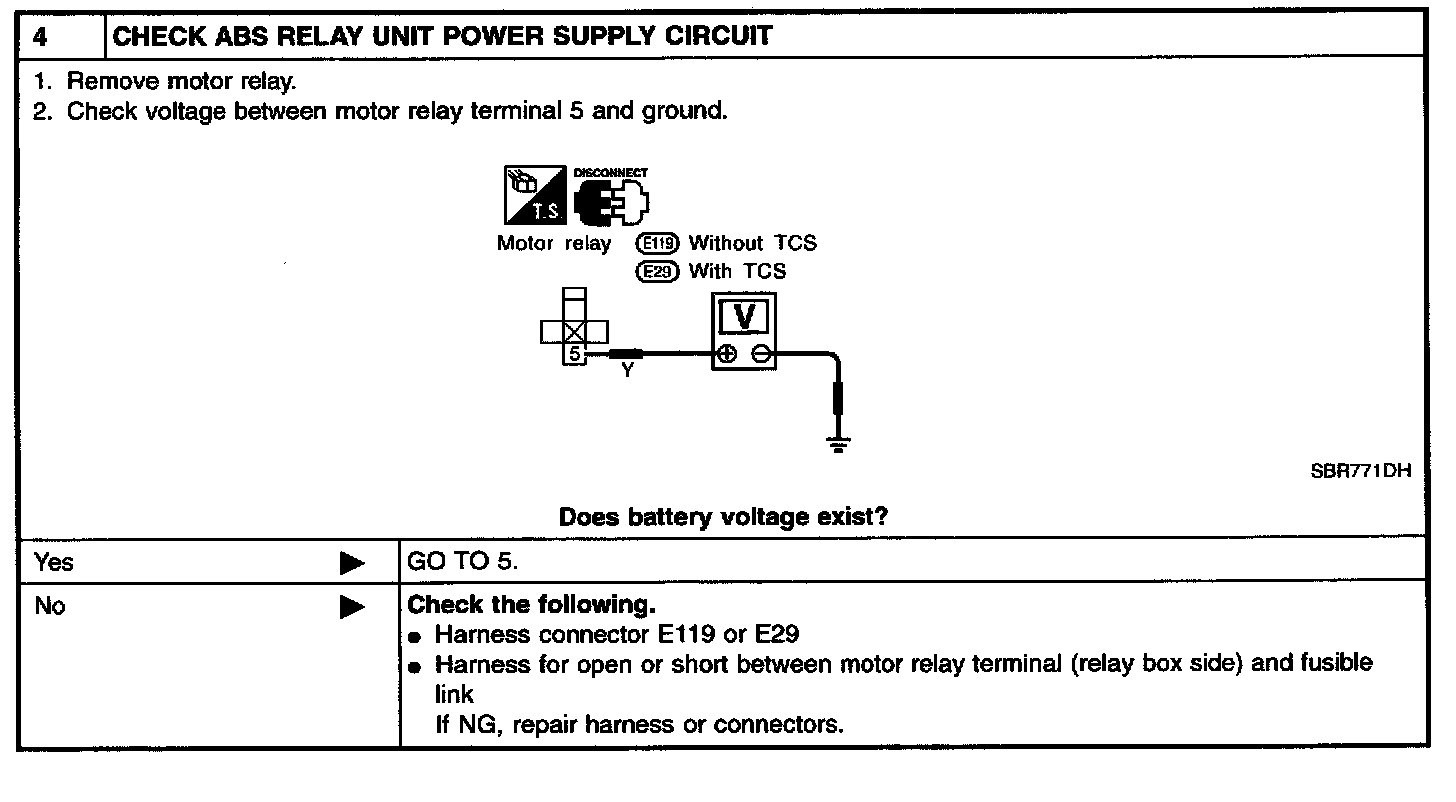

Step 4:

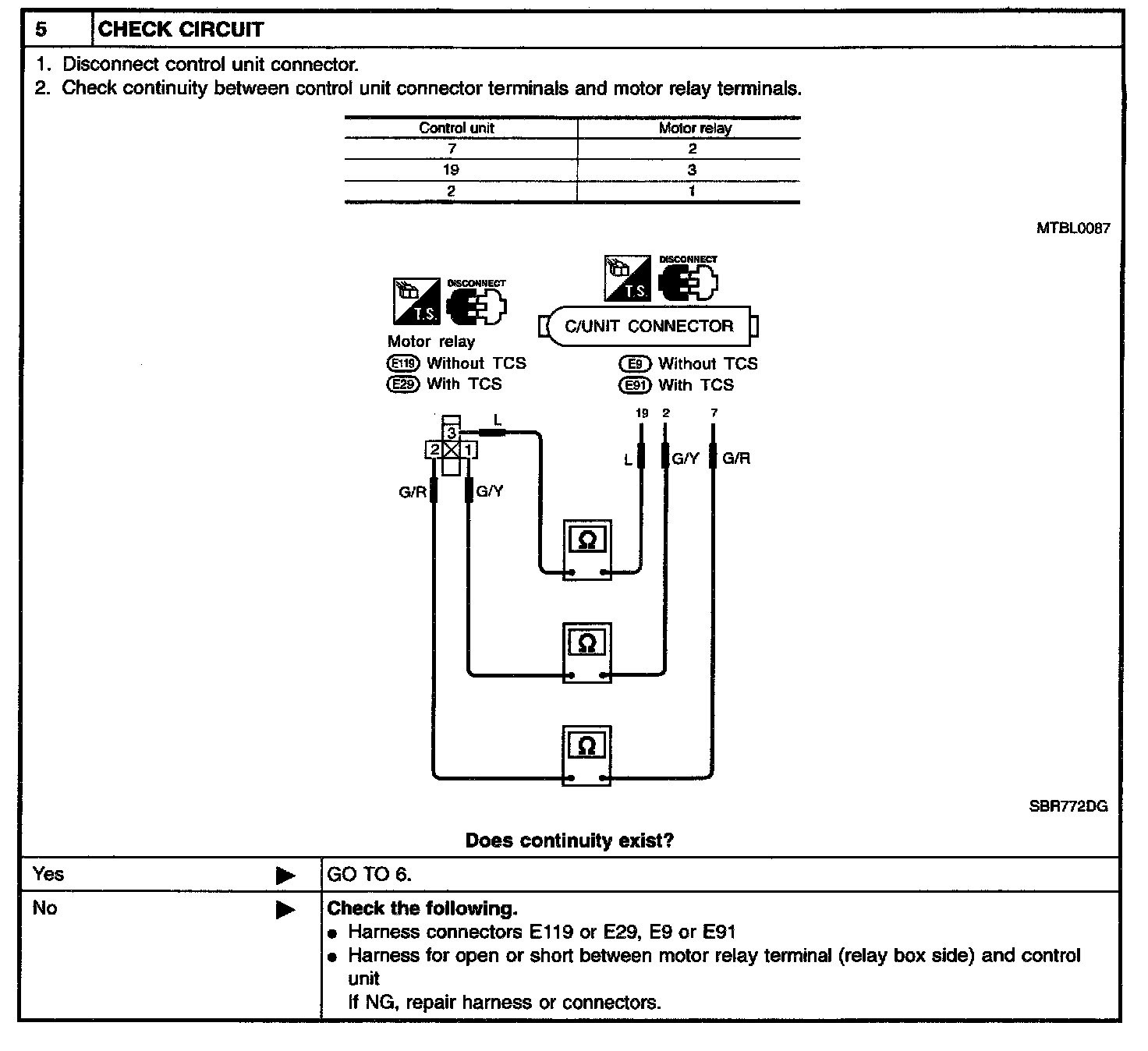

Step 5:

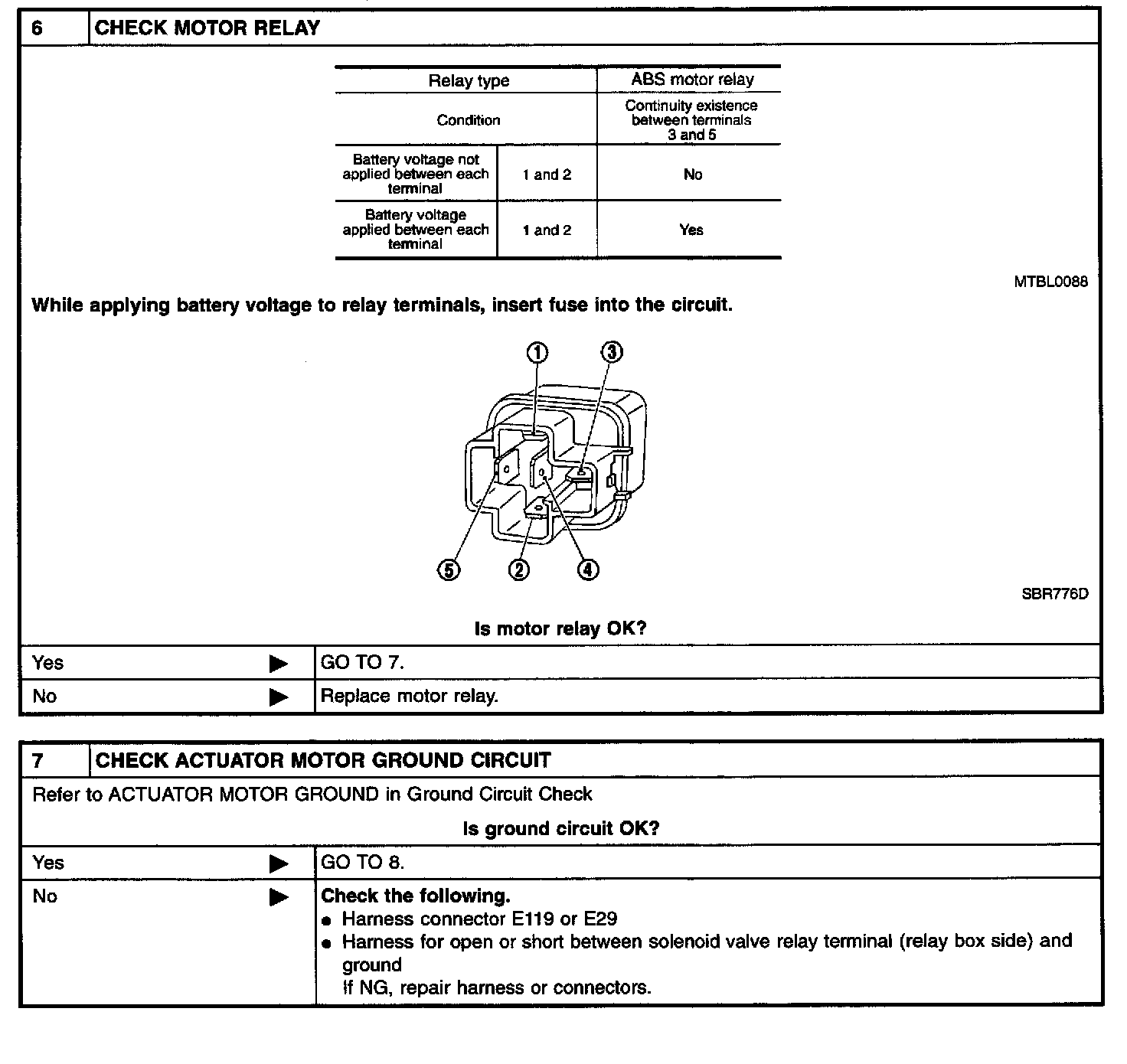

Steps 6 - 7:

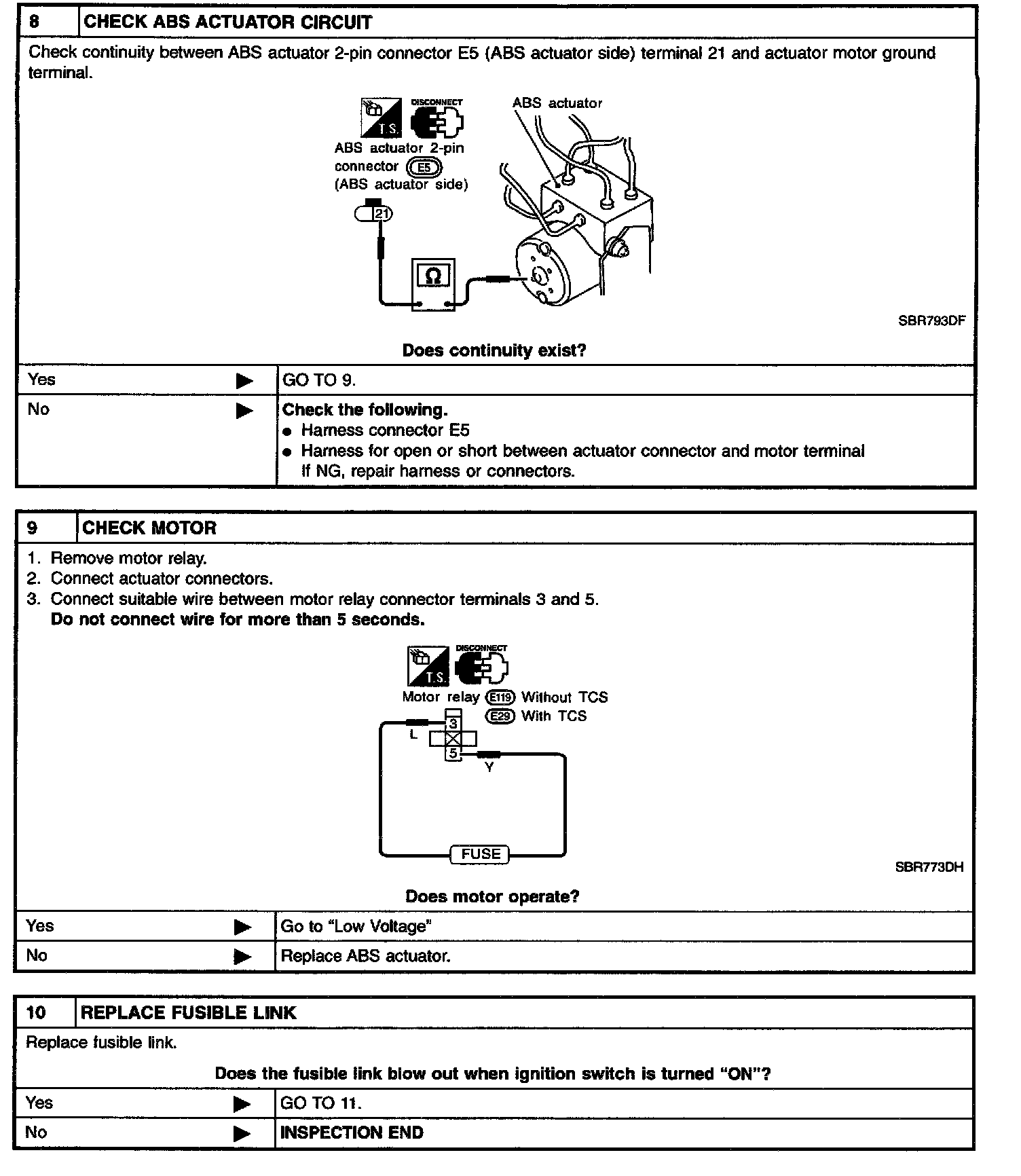

Steps 8 - 10:




Steps 11 - 12:

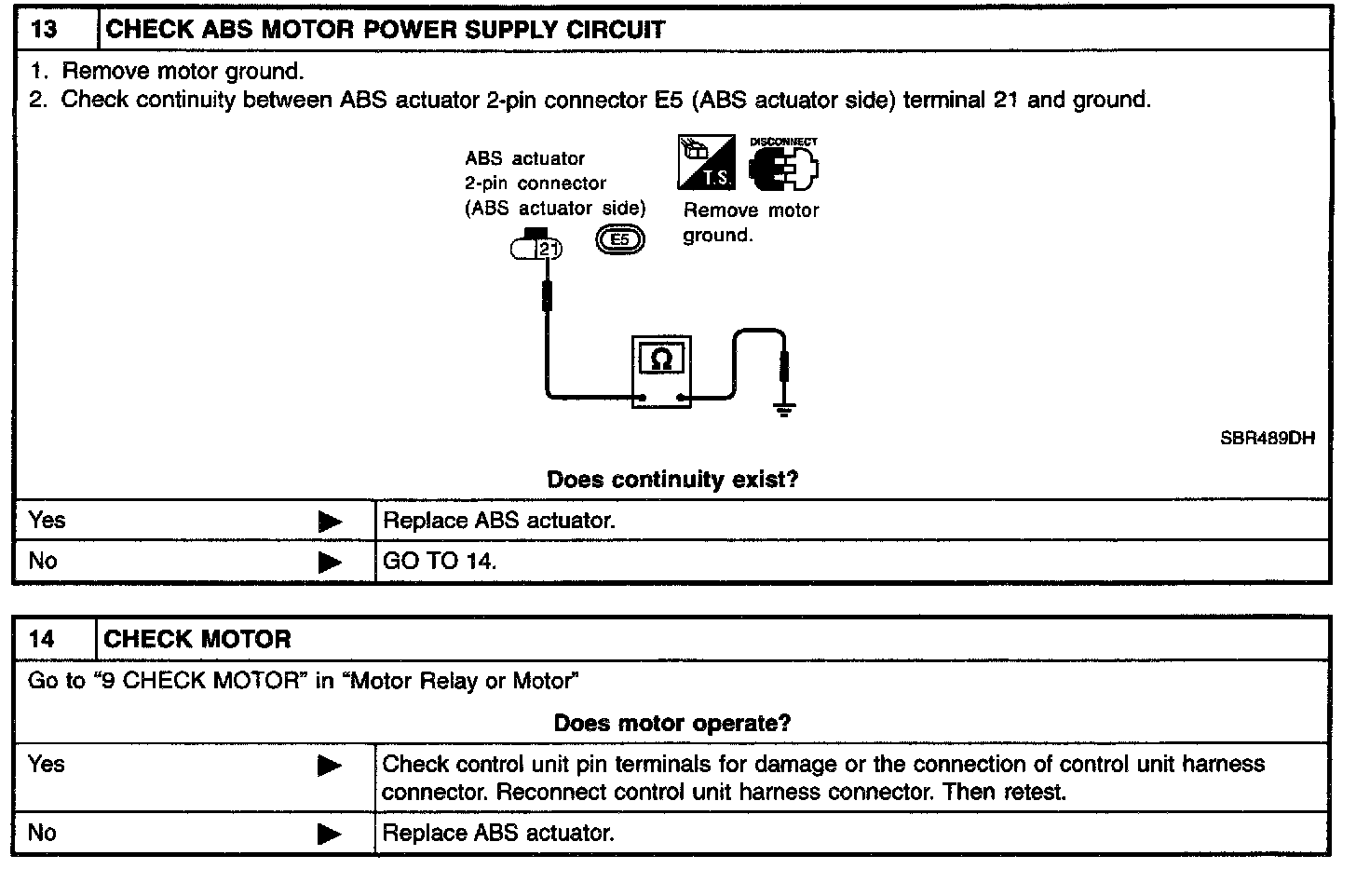

Step 13 - 14:






Motor Relay or Motor
