Wiper and Washer Systems: Adjustments

WASHER NOZZLE ADJUSTMENT

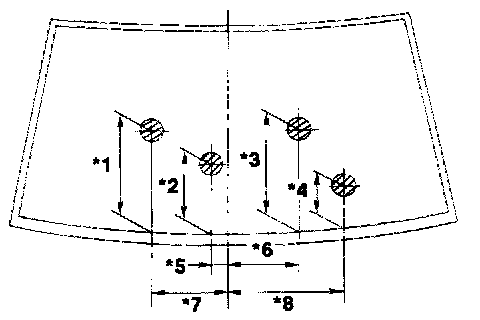

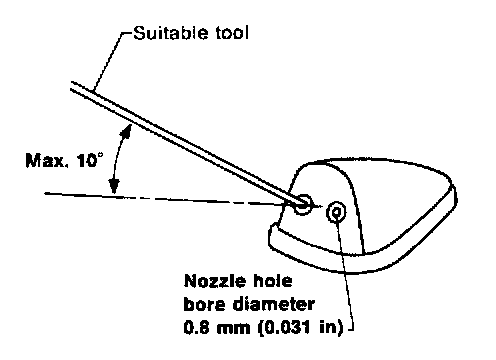

- Adjust washer nozzle with suitable tool as shown in the figure at left.

Adjustable range: ±10°
