Front

REMOVAL AND INSTALLATION

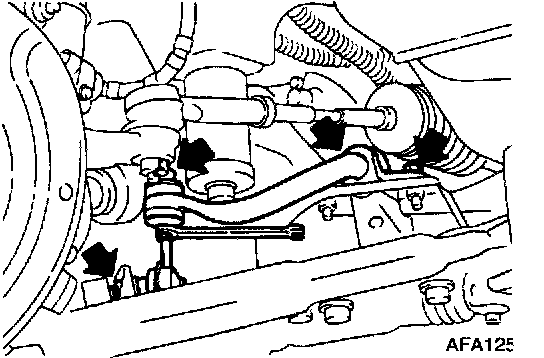

- Remove stabilizer bar.

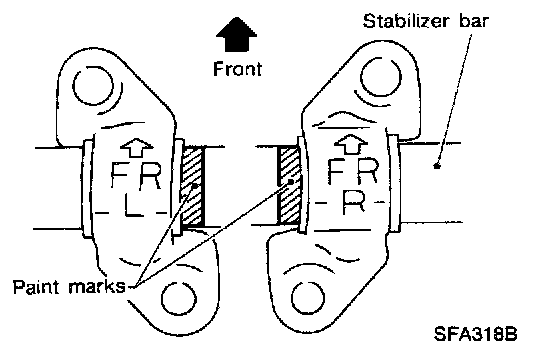

- When installing stabilizer, make sure the paint mark and clamp face in their correct directions.

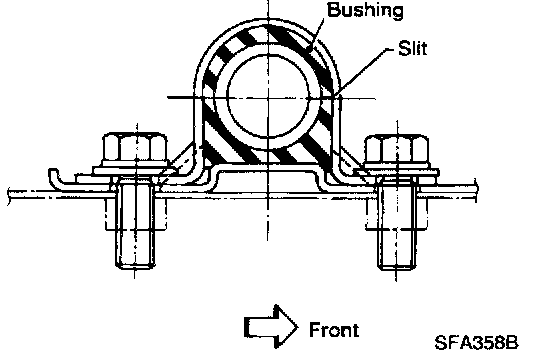

- Make sure that slit in bushing is in the position shown in the figure.

INSPECTION





- Check stabilizer for deformation or cracks. Replace if necessary.
- Check rubber bushings for deterioration or cracks. Replace if necessary.

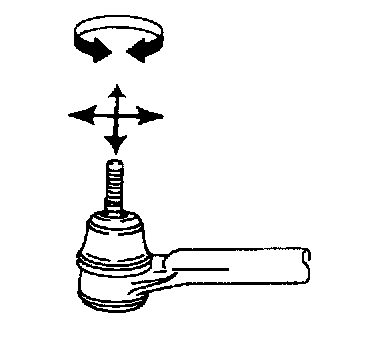

- Check that ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar link.
