Front Seat Belt

Front Seat Belts:

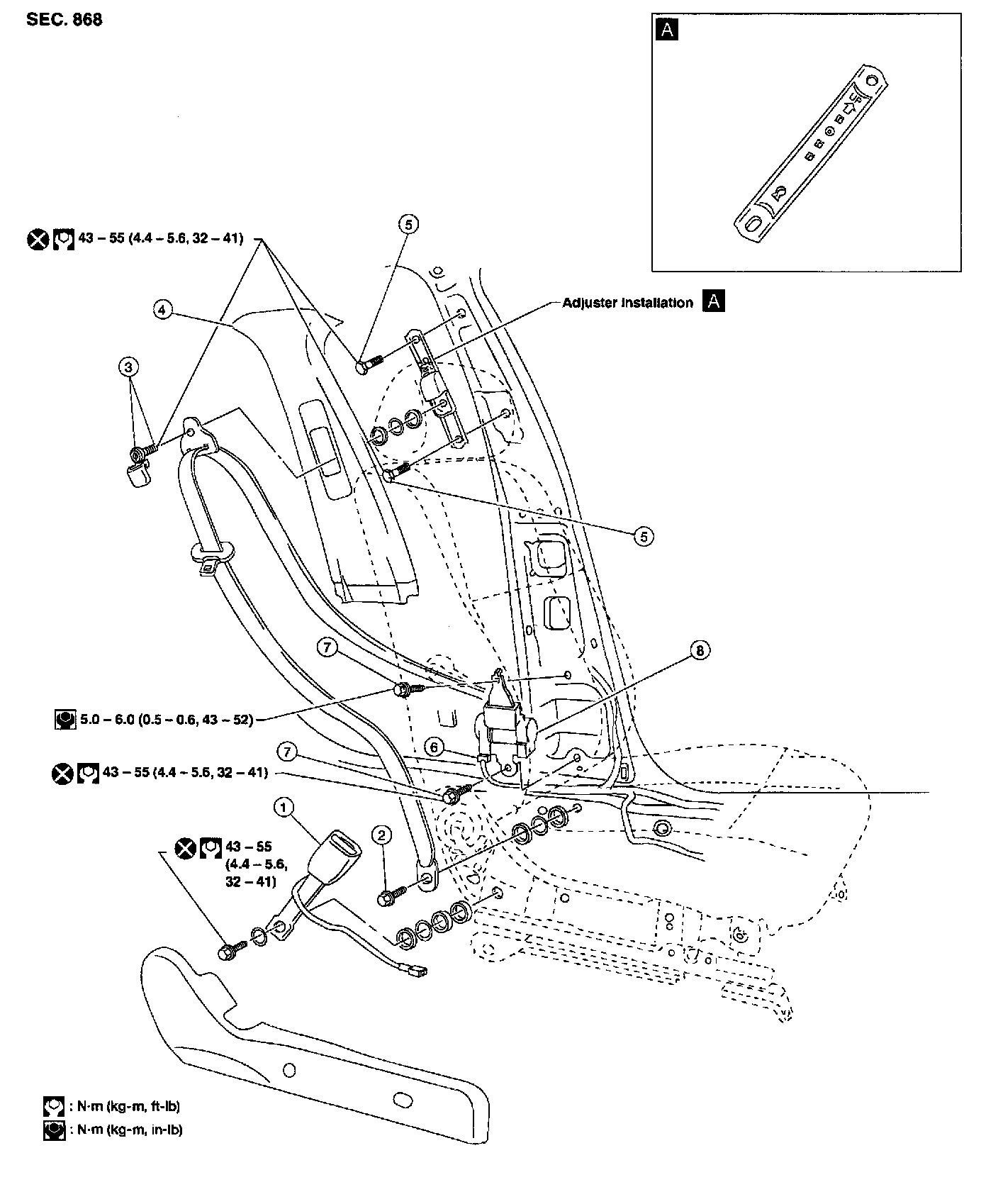

REMOVAL AND INSTALLATION

1. Remove front seat.
2. Remove buckle.
Remove front and rear inner kick plates.

3. Remove belt anchor bolts.
Remove center pillar lower garnish.

4. Remove adjuster cover and upper guide loop anchor bolt.
5. Remove center pillar upper garnish.
6. Remove two adjuster bolts and adjuster assembly. A
7. Disconnect seat belt pre-tensioner connector.
8. Remove seat belt pre-tensioner retractor bolt and screw.
9. Remove seat belt pre-tensioner retractor.

Reverse procedure to install.
