Removal and Installation

CAUTION
* Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
* The special bolts are coated with bonding agent while the other bolt is for ground. Do not use old bolts after removal; replace with new ones.
* Check diagnosis sensor unit, seat belt pre-tensioner and satellite sensor for proper installation.
* Check diagnosis sensor unit and satellite sensor to ensure they are free of deformities, dents, cracks or rust. If they show any visible signs of damage, replace them with new ones.
* Check diagnosis sensor unit brackets to ensure they are free of deformities and rust.
* After replacement of diagnosis sensor unit, seat belt pre*tensioner and satellite sensor, check SRS function and perform self*diagnosis for SRS. Refer to "Self-diagnosis" for details.
* Do not attempt to disassemble diagnosis sensor unit, seat belt pre*tensioner and satellite sensor.
* Replace diagnosis sensor unit, seat belt pre-tensioner and satellite sensor if it has been dropped or sustained an impact.
* Do not expose seat belt pre-tensioner to temperatures exceeding 80 °C (176 °F).

Front Seat Belts:

Seat Belt Pre-Tensioner:

REMOVAL AND INSTALLATION

1. Remove front seat.
2. Remove buckle.
Remove front and rear inner kick plates.

3. Remove belt anchor bolts.
Remove center pillar lower garnish.

4. Remove adjuster cover and upper guide loop anchor bolt.
5. Remove center pillar upper garnish.
6. Remove two adjuster bolts and adjuster assembly. A
7. Disconnect seat belt pre*tensioner connector.

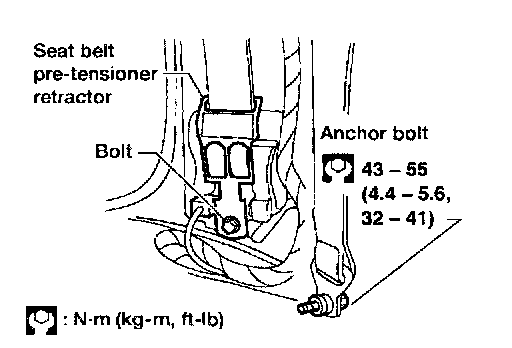

8. Remove seat belt pre-tensioner retractor bolt and screw.
9. Remove seat belt pre-tensioner retractor.


NOTE: To install, reverse the removal procedure sequence.
