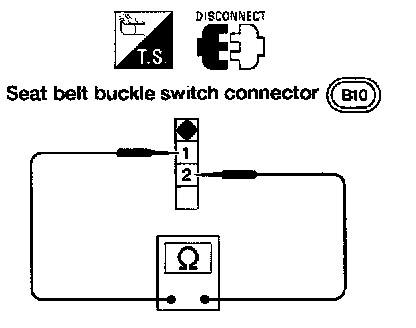

Seat Belt Buckle Switch

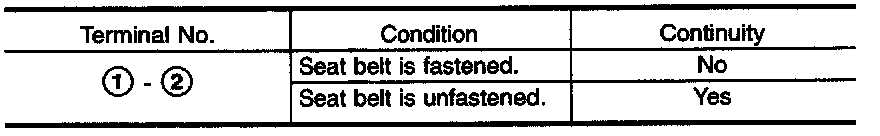

Check continuity between terminals when
seat belt
is fastened and unfastened.
