Evaporative Emission Control Canister: Testing and Inspection

EVAP CANISTER

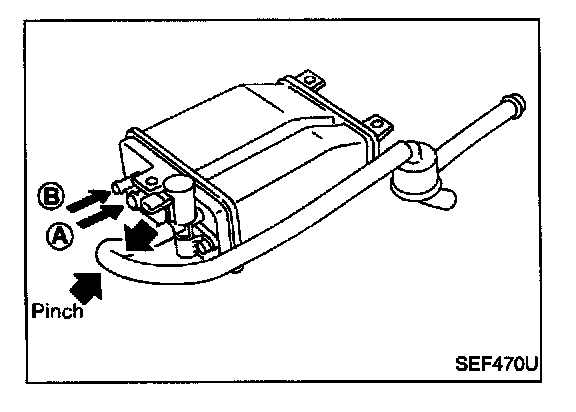

Check EVAP canister as follows:
1. Pinch the fresh air hose.
2. Blow air into port (A) and check that air flows freely through port (B).

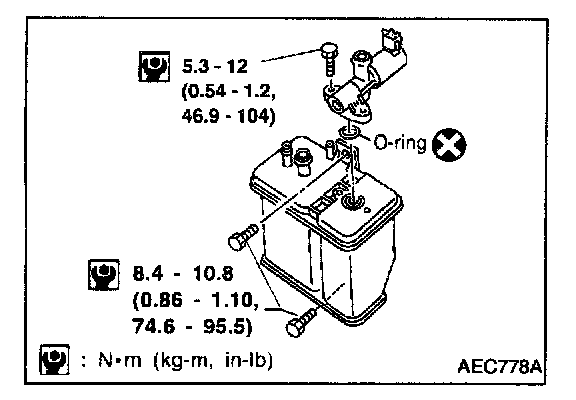

TIGHTENING TORQUE
Tighten EVAP canister as shown in the figure.
Make sure new O-ring is installed properly between EVAP canister and EVAP vent control valve.
