Thermal Transmitter

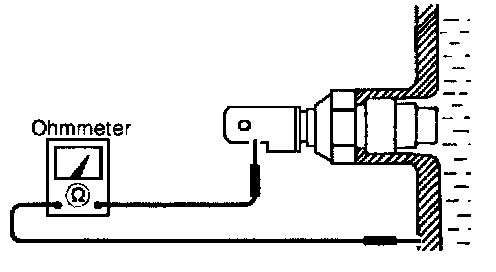

Thermal Transmitter Check

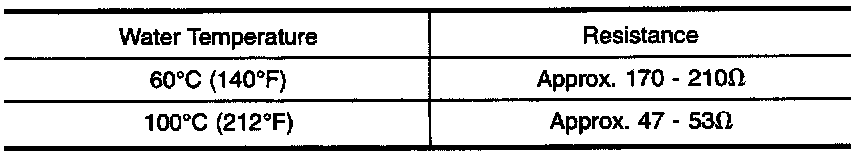

Check the resistance between the terminals of thermal transmitter and body ground.
