Mode Door

SYMPTOM: Air outlet does not change.

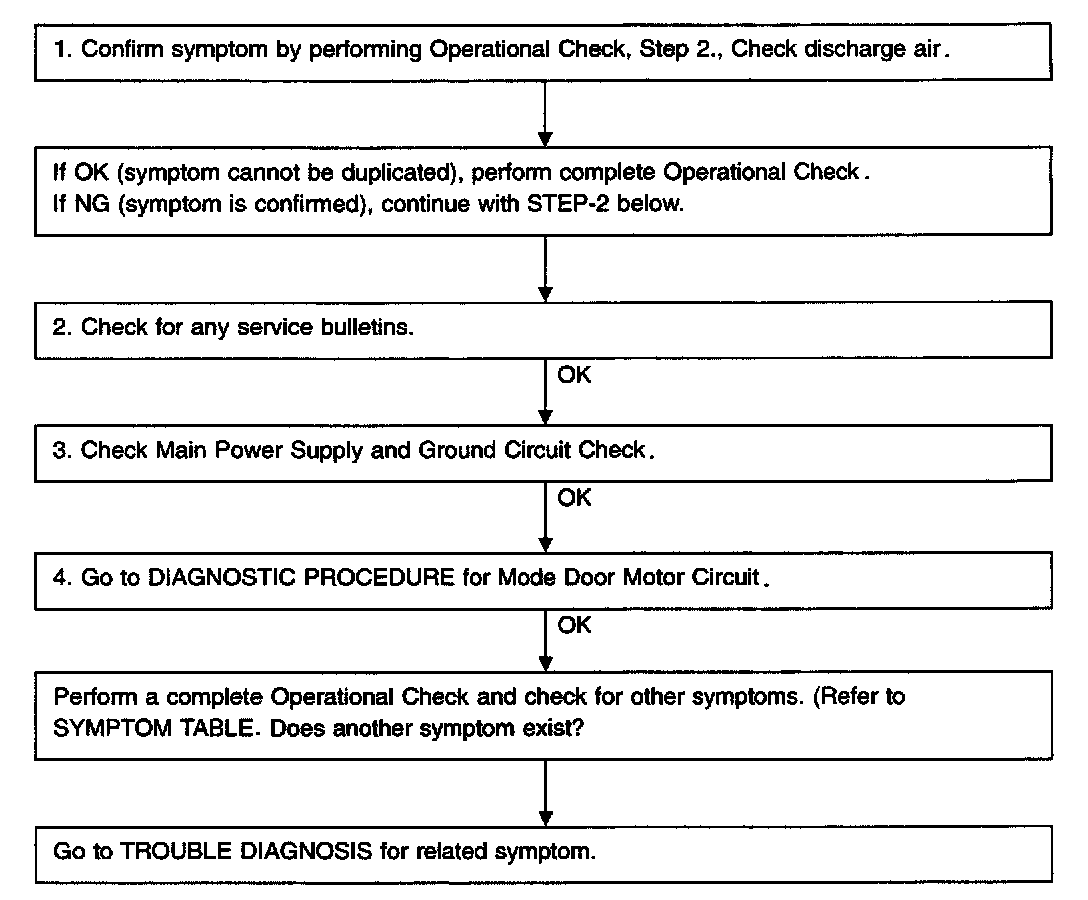

INSPECTION FLOW

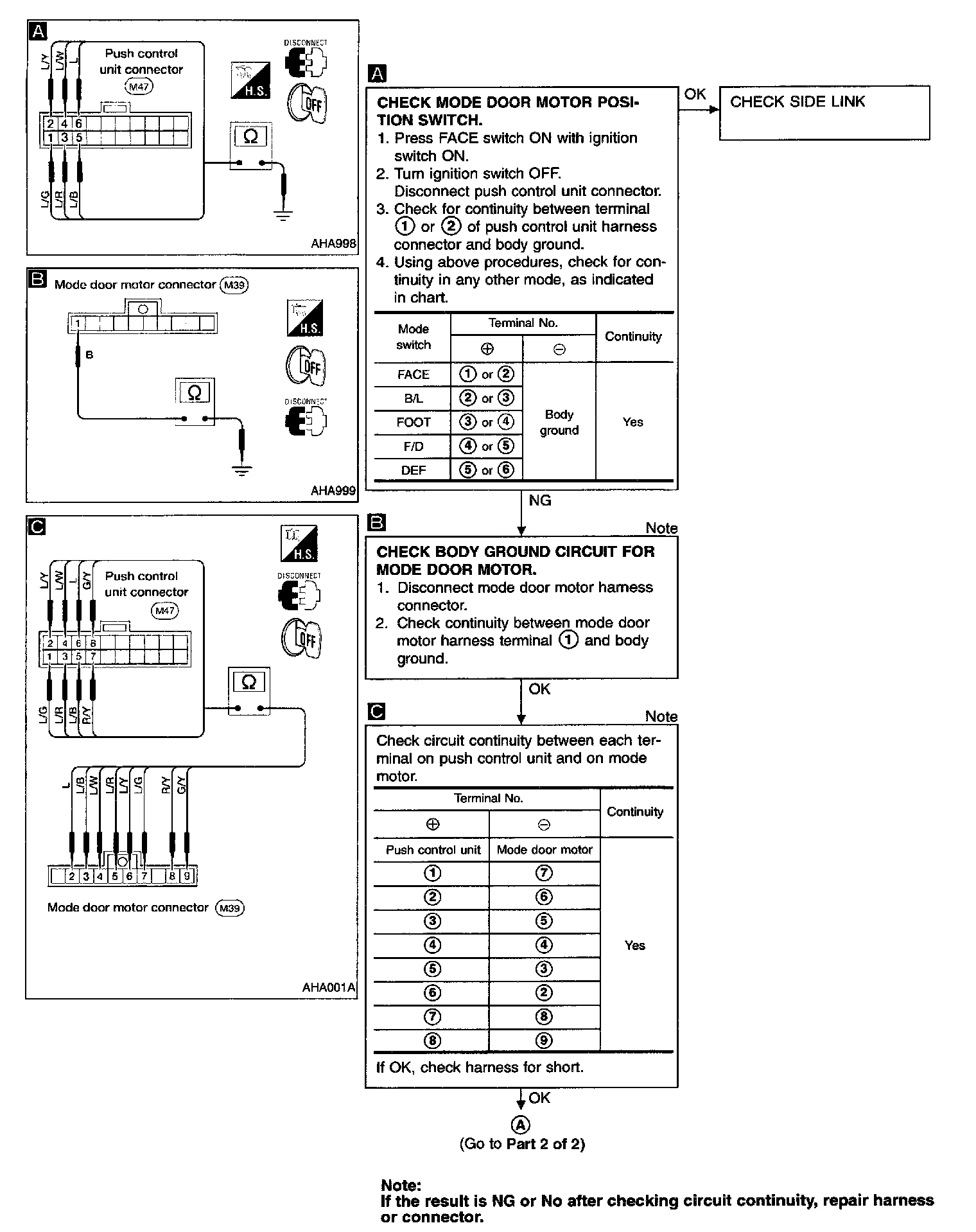

Part 1 Of 2:

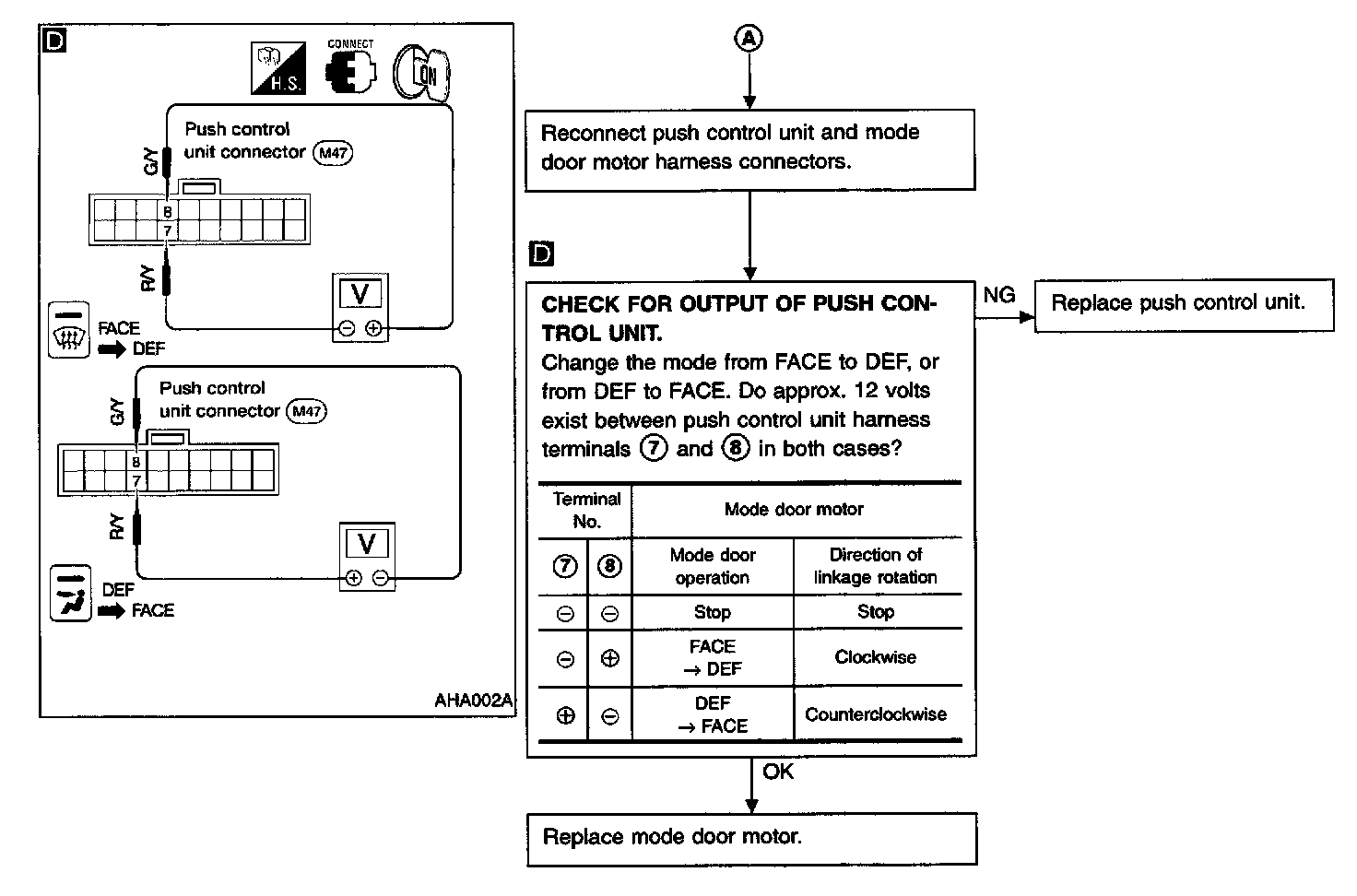

Part 2 Of 2:

DIAGNOSTIC PROCEDURE
SYMPTOM: Air outlet does not change.




CONTROL LINKAGE ADJUSTMENT
Mode Door
1. Move side link by hand and hold mode door in DEF mode.
2. Connect door motor to main harness.
3. Turn ignition switch ON.
4. Select DEF mode.
5. Install mode door motor on heater unit.
6. Attach mode door motor rod to side link rod holder.
After installing the mode door motor, check for proper operation.
