Valve Guide Seal: Service and Repair

Valve Oil Seal





1. Remove rocker cover.
2. Remove camshaft.

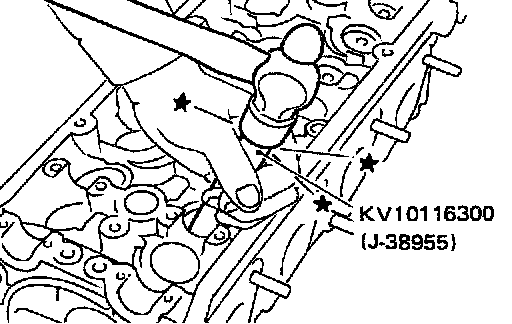

3. Remove valve spring and valve oil seal with Tool or suitable tool.
Piston must be set at TDC to prevent valve from falling.

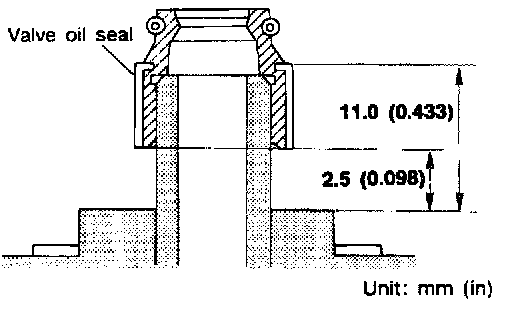

4. Apply engine oil to new valve oil seal and install it with Tool.
