Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

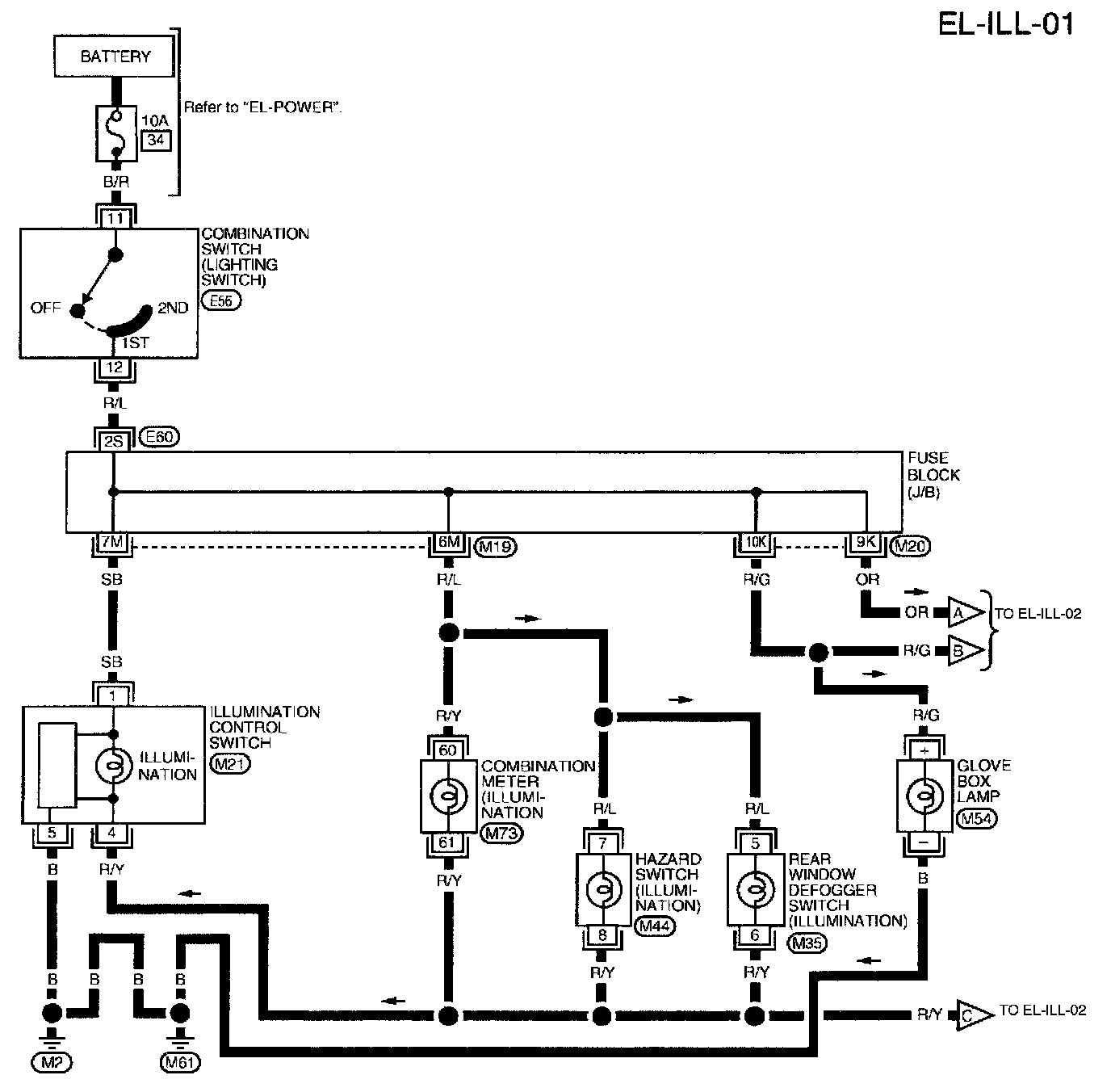

EL-ILL-01:

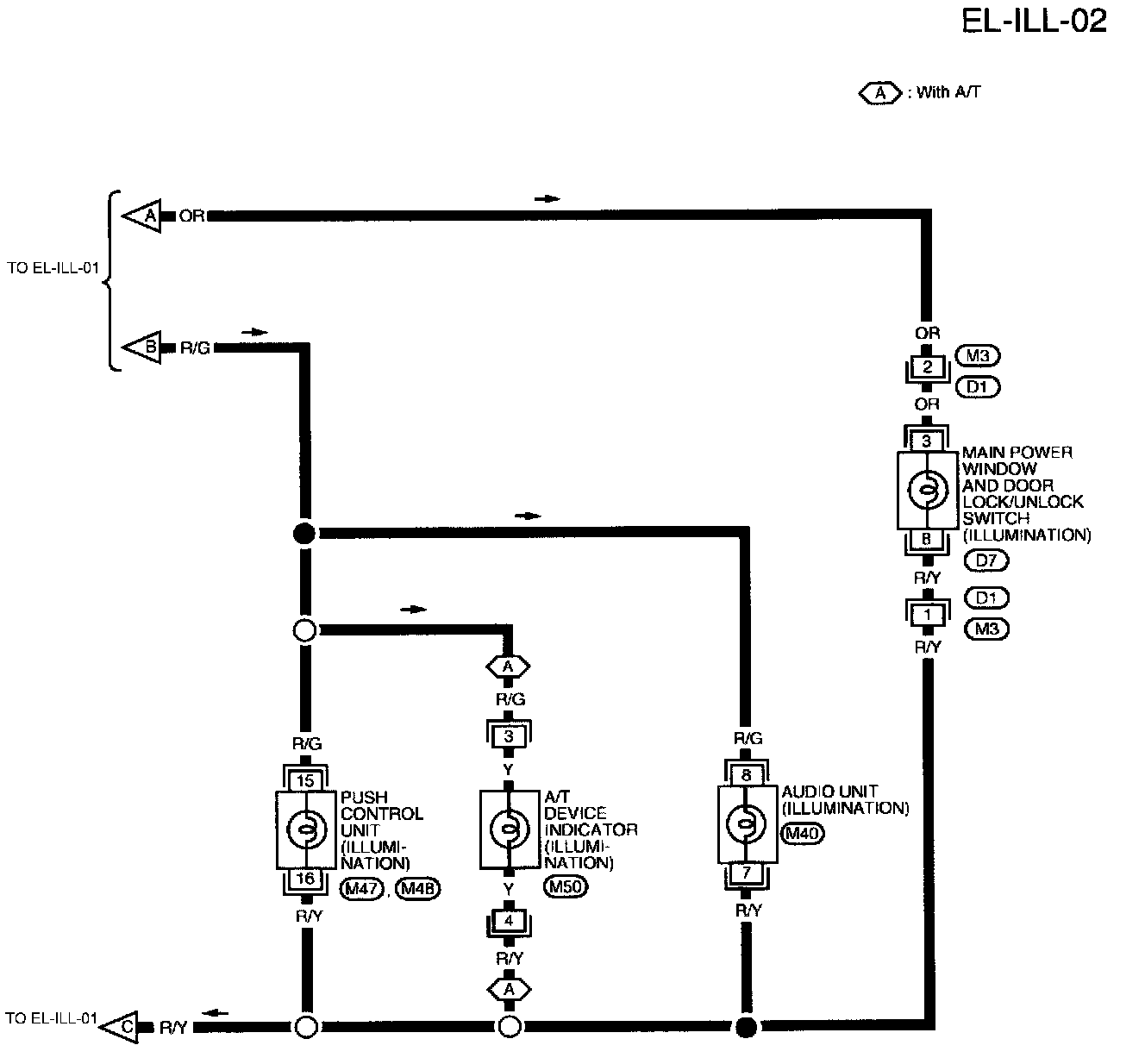

EL-ILL-02:
Circuit Diagrams

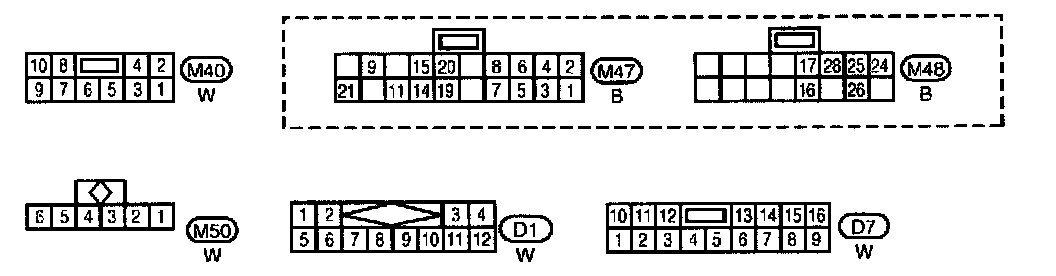

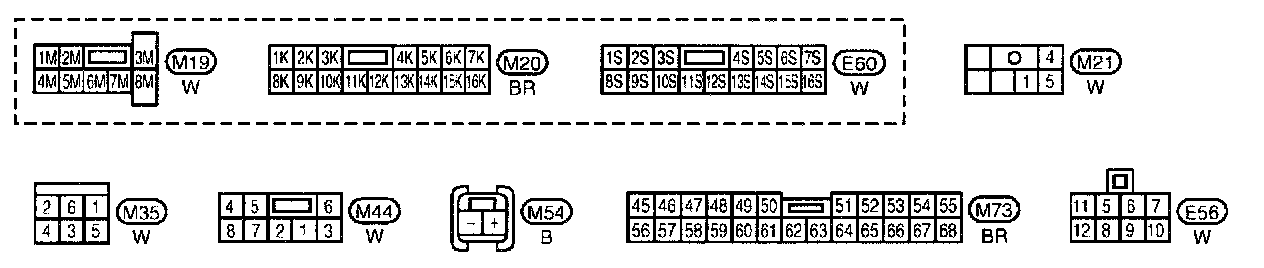

Circuit Connectors
