Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EL Diagrams (Electrical Systems)
>>
EL-TLID
EL-TLID

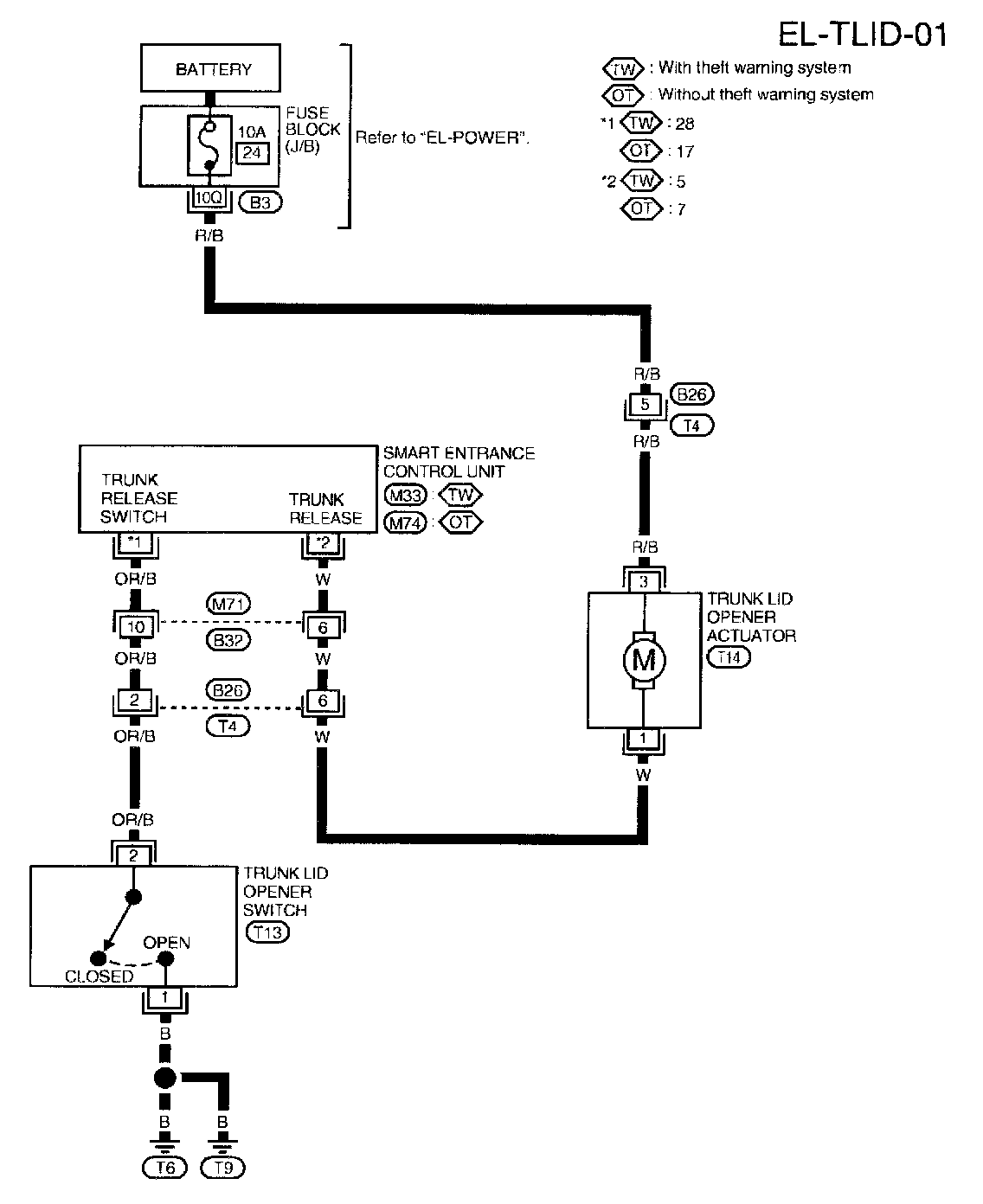

EL-TLID-01:
EL-TLID-01

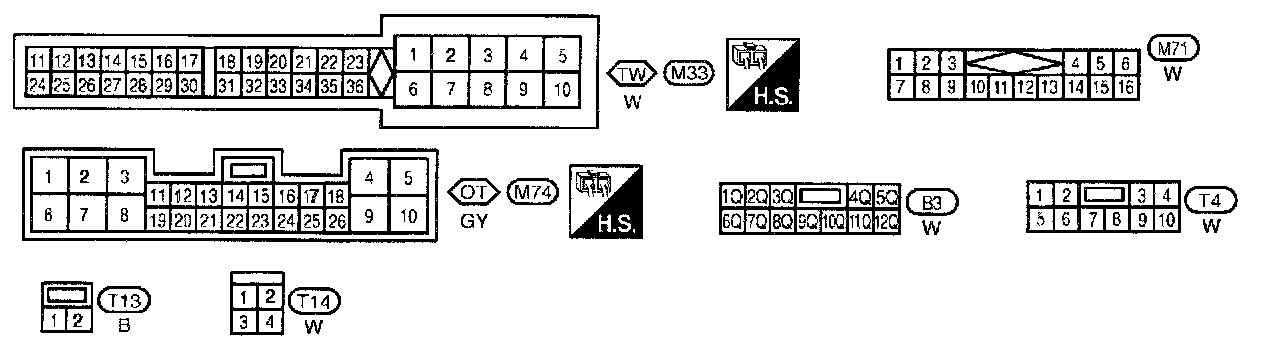

Circuit Connectors
