Door Harness
Door Harness

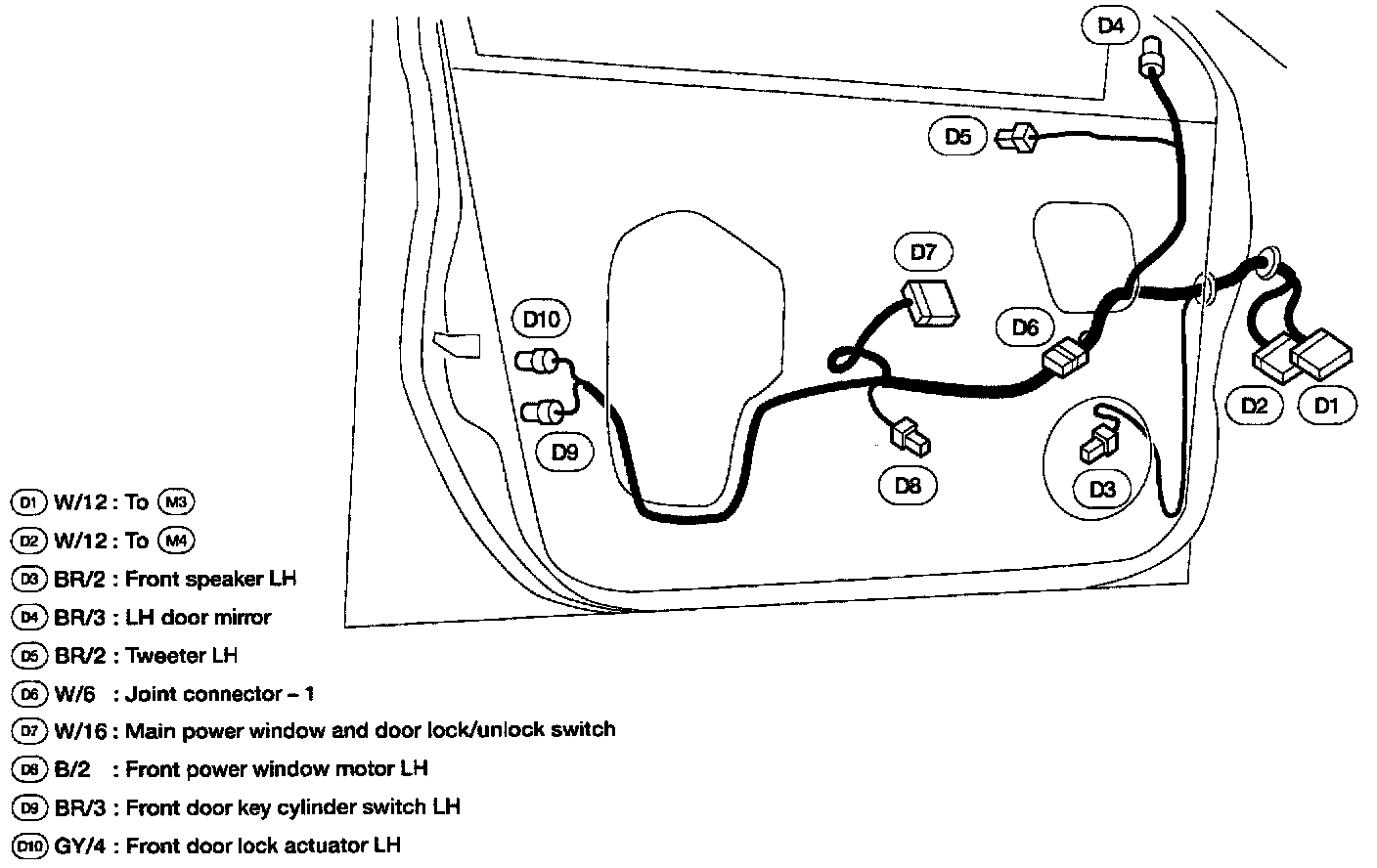

Door Harness (Front LH Side)
Door Harness (Rear LH Side)

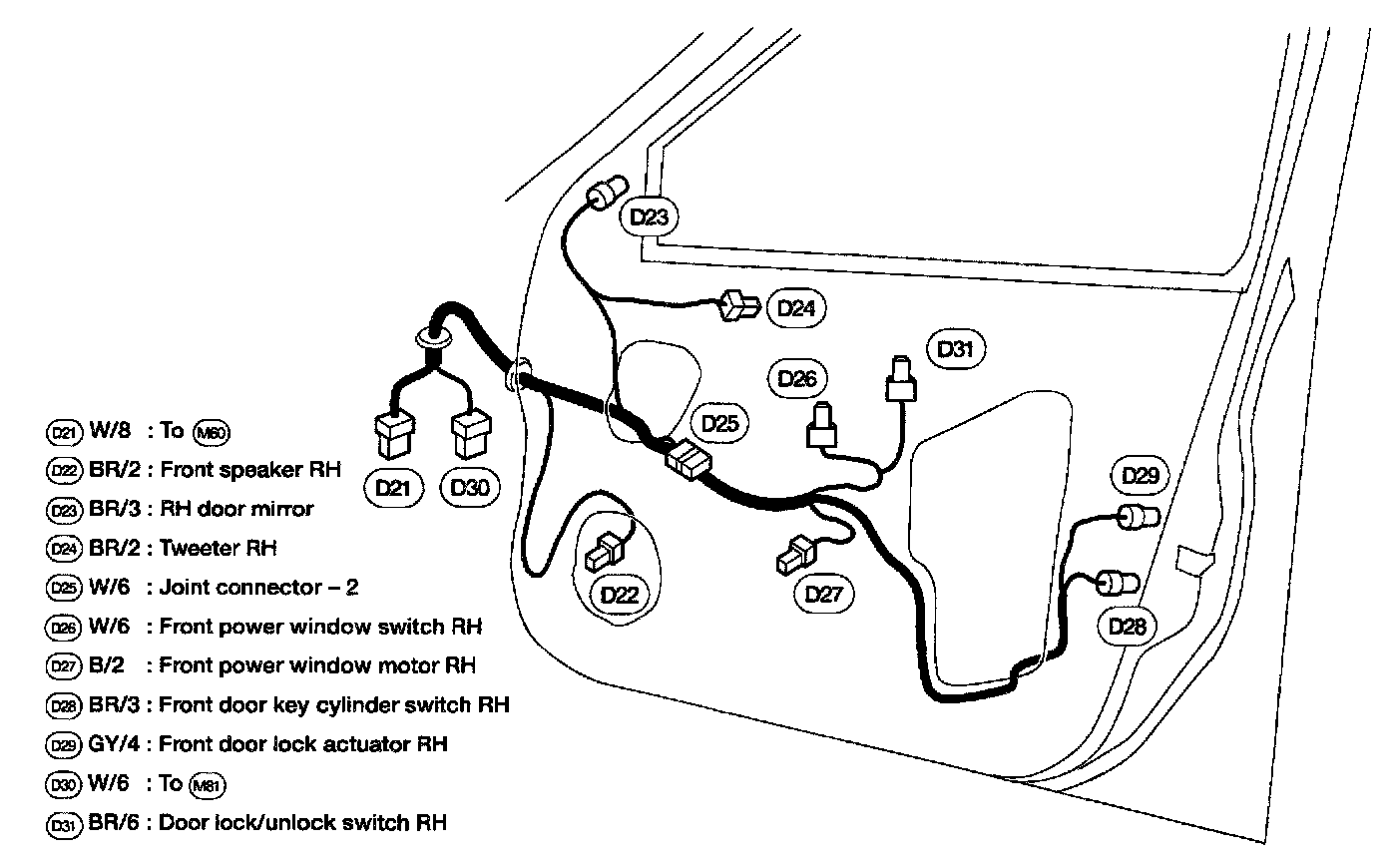

Door Harness (Front RH Side)

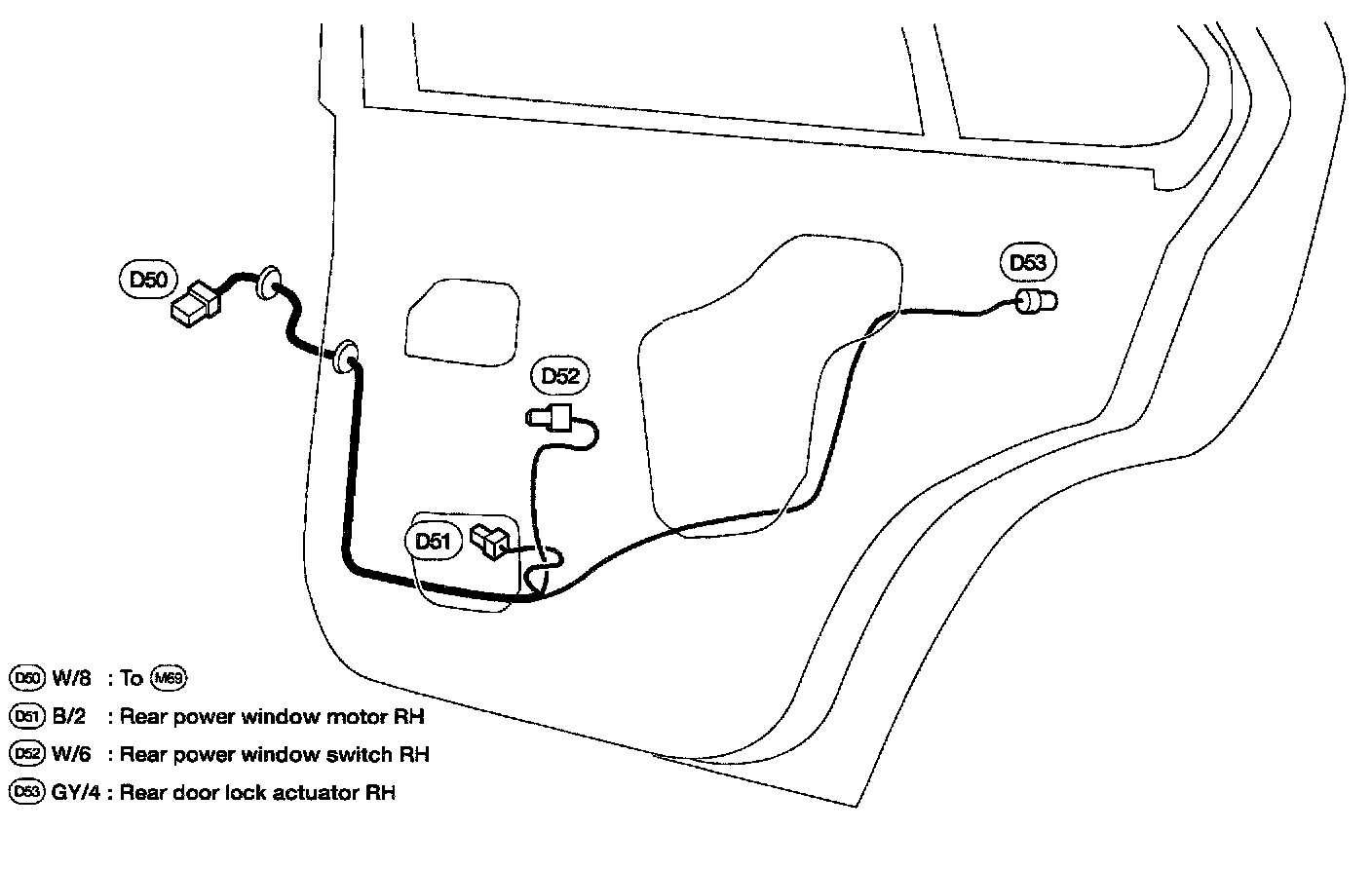

Door Harness (Rear RH Side)
