Home >> Nissan-Datsun >> 2000 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Pad >> Testing and Inspection

Brake Pad: Testing and Inspection







PAD

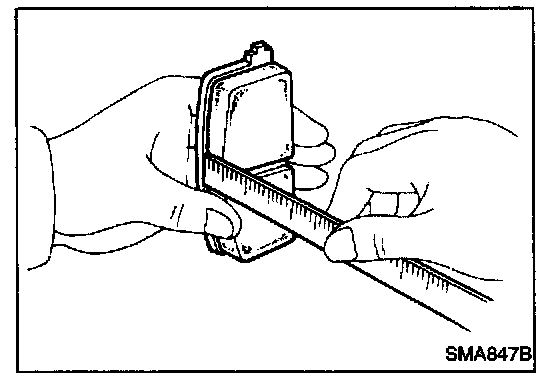

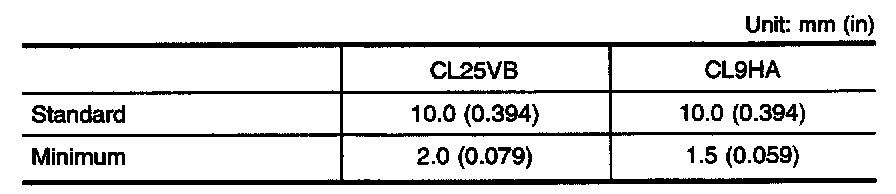

Measure wear and check for damage.
