Sunroof / Moonroof Drain: Testing and Inspection

1. Remove headlining to access drain hose connections. (Refer to "REMOVAL - Headlining" in "INTERIOR TRIM", for details.)

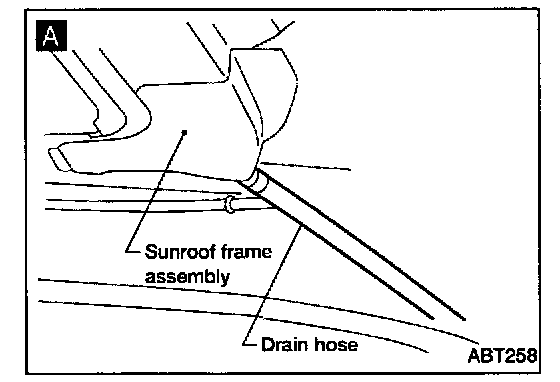

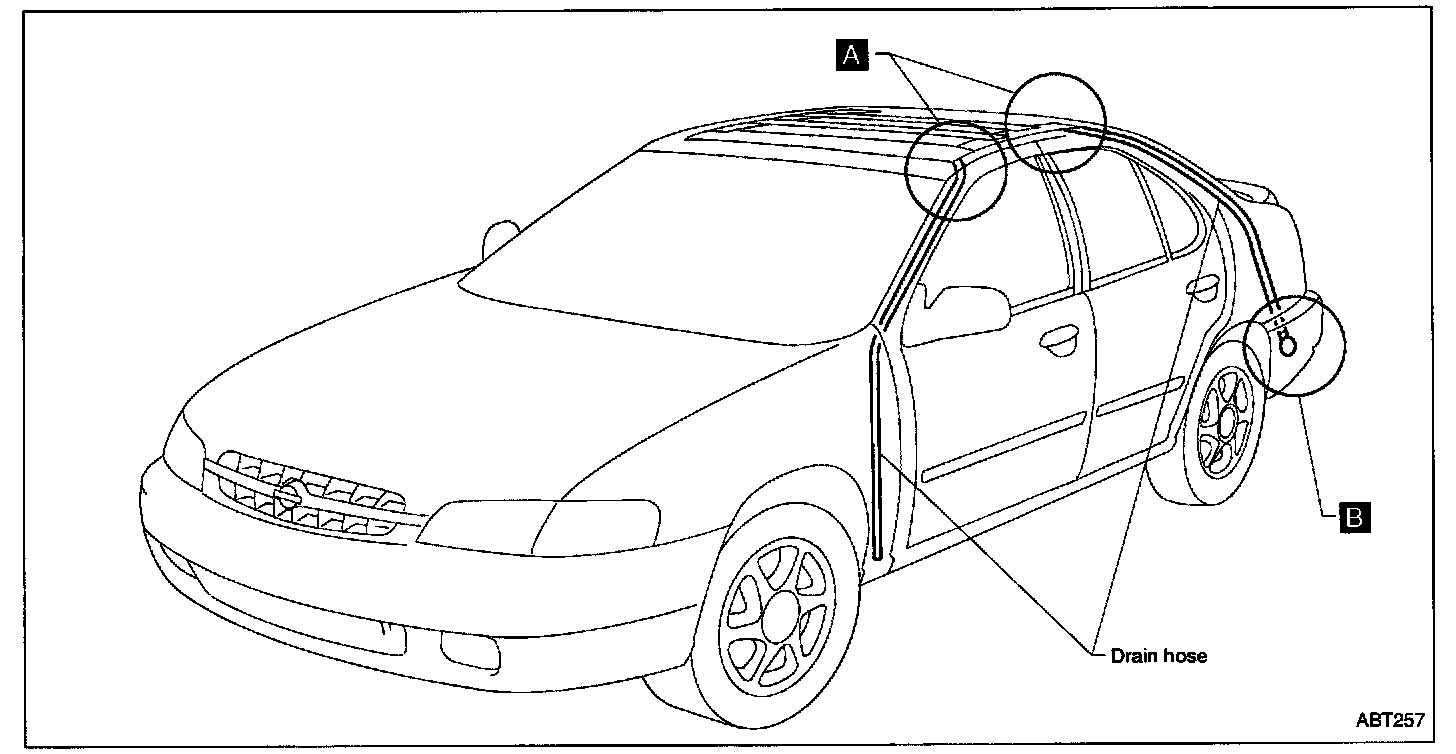

2. Check visually for proper connections, damage or deterioration. [A] (The figure shows only the front side.)

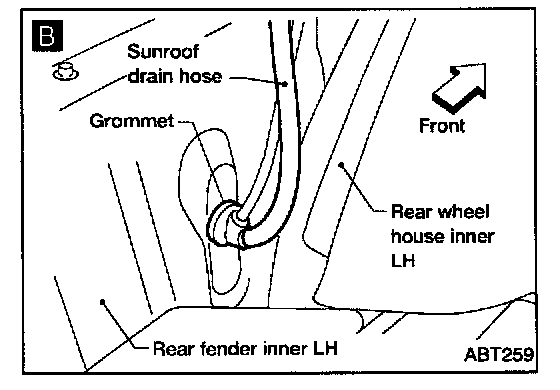

3. If leakage occurs around trunk room, remove trunk room side trim and check connecting area. Check for proper connection, damage. [B]
4. Remove drain hoses and check visually for any damage, cracks, or deterioration.
5. Pour water into drain hoses and find damaged portion.
- If any damaged portion is found at each step, replace the damaged part.
