Shift Interlock: Testing and Inspection

Diagnostic Procedure

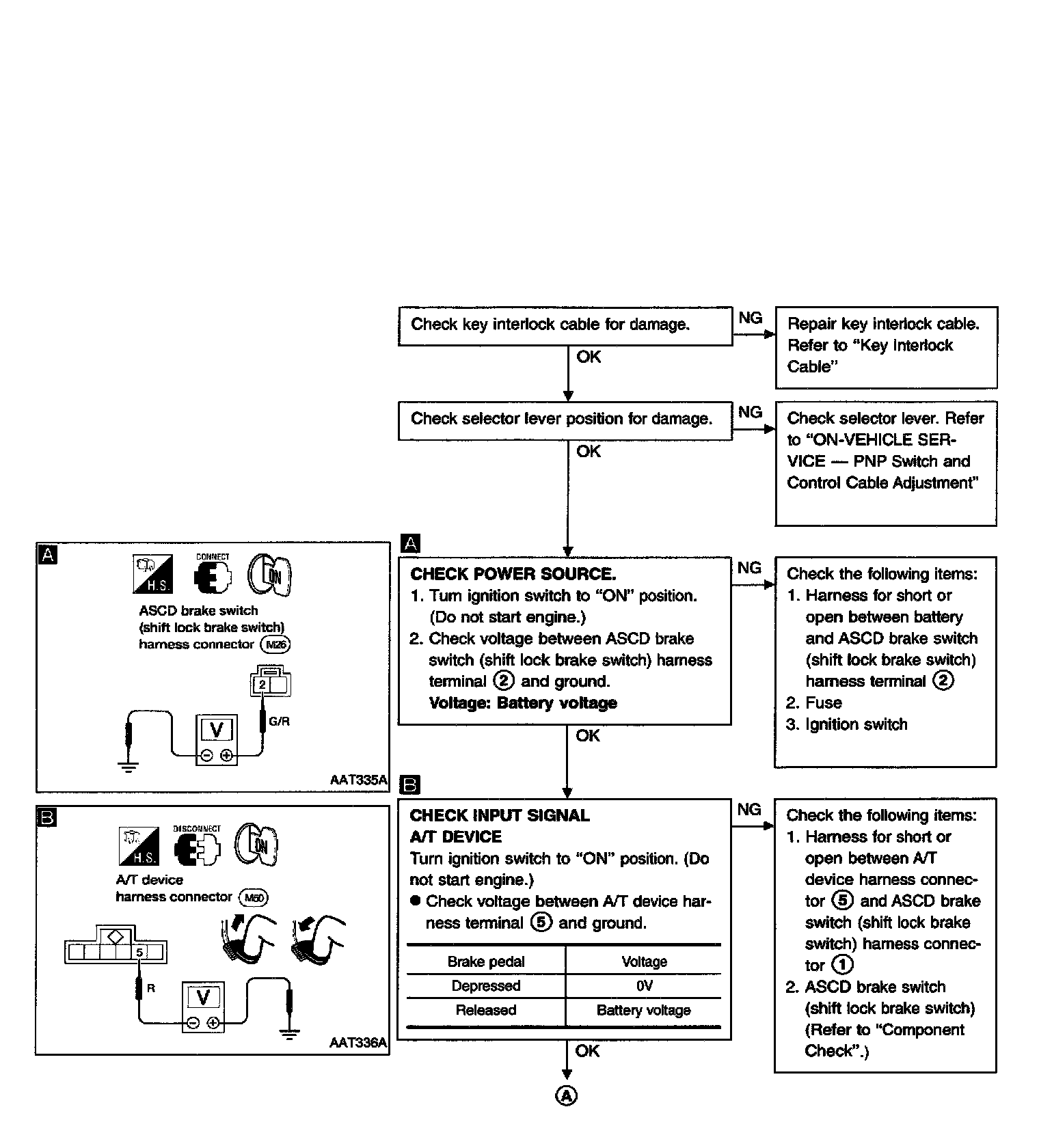

PART 1 OF 2

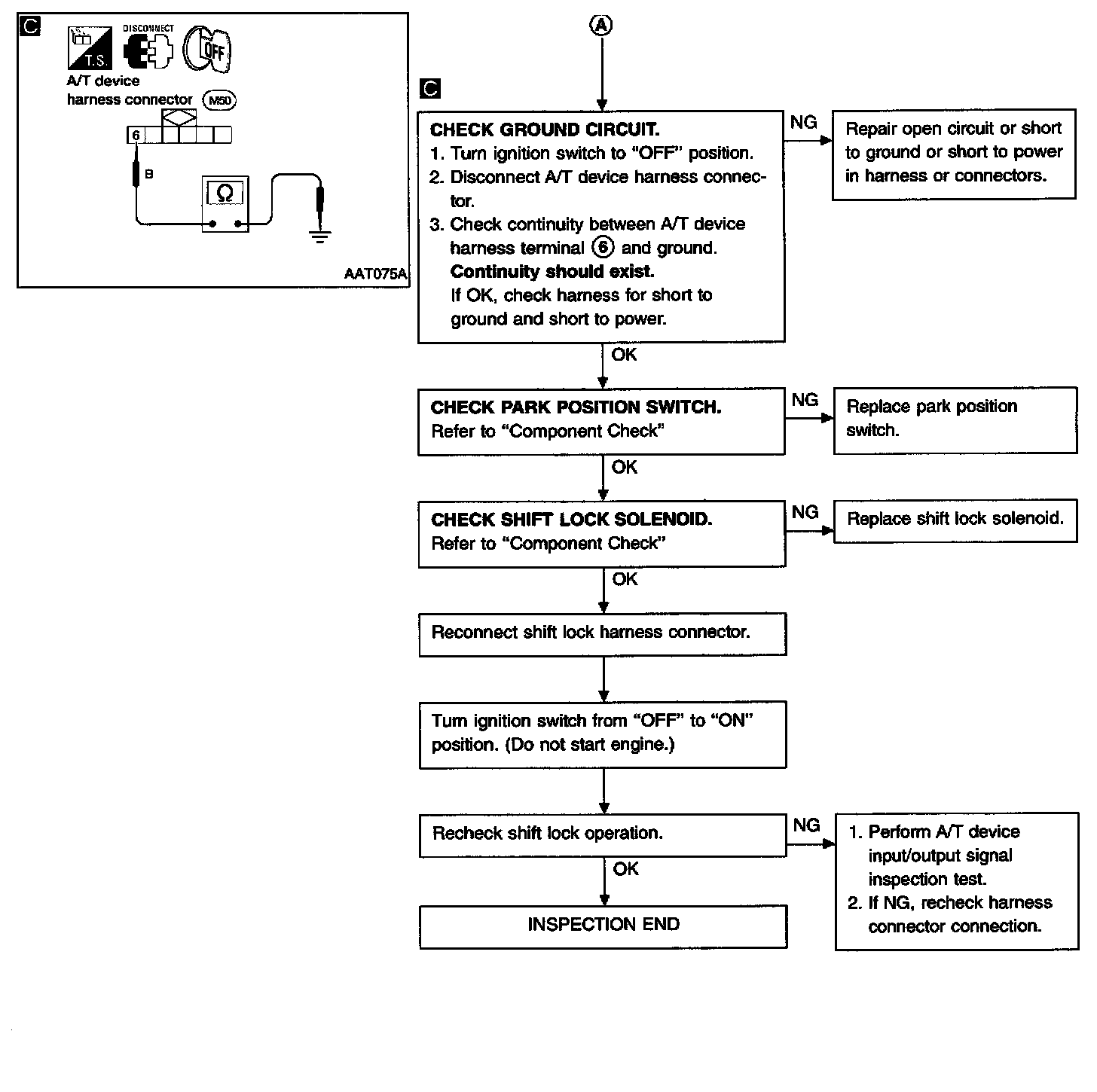

PART 2 OF 2

SYMPTOM 1:
- Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
- Selector lever can be moved from "P" position with key in ON position and brake pedal released.
- Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to "P" position. It can be removed when selector lever is set to any position except "P".
