System Inspection

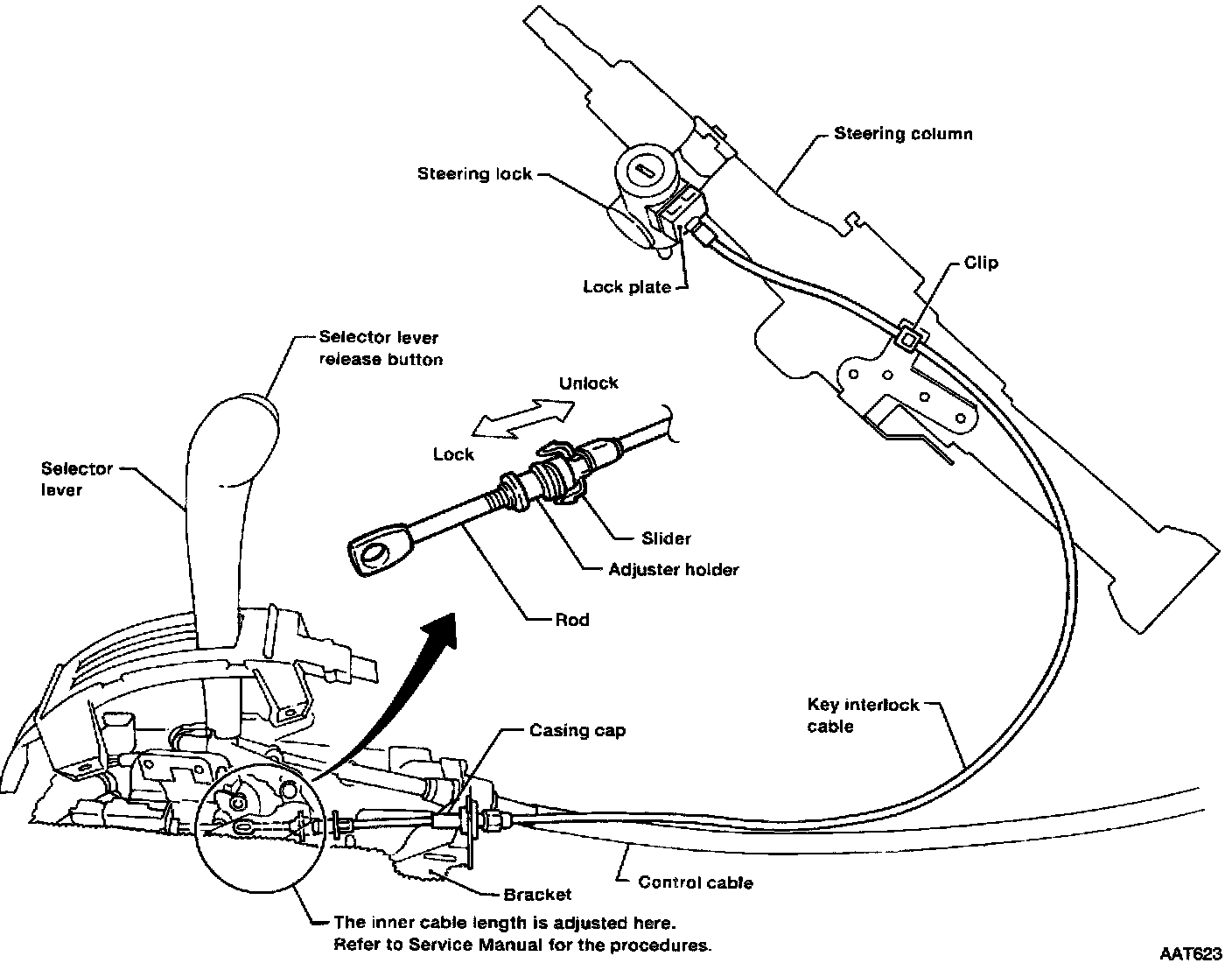

Key Interlock Cable





CAUTION:
- Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
- After installing key interlock cable to control device, make sure that casing cap and bracket are firmly secured in their positions. If casing cap can be removed with an external load of less than 39.2 N (4.0 kg, 8.8 lbs.), replace key interlock cable with new one.





REMOVAL

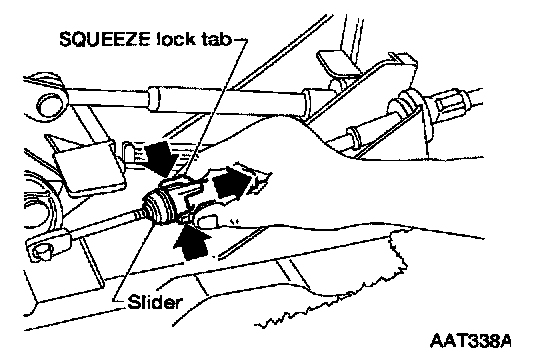

Unlock slider by squeezing lock tabs from adjuster holder and remove rod from cable.

INSTALLATION





1. Remove key from key cylinder.

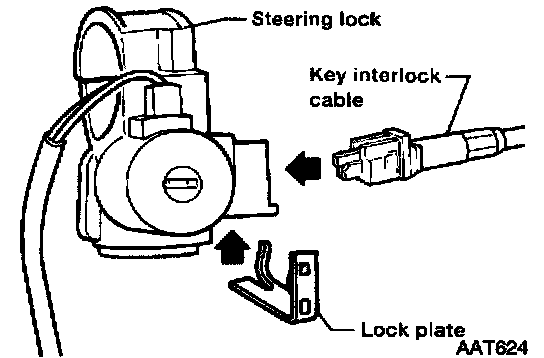

2. Set key interlock cable to steering lock assembly and install lock plate.
3. Clamp cable to steering column and fix to control cable with band.
4. Set control lever to "P" position.

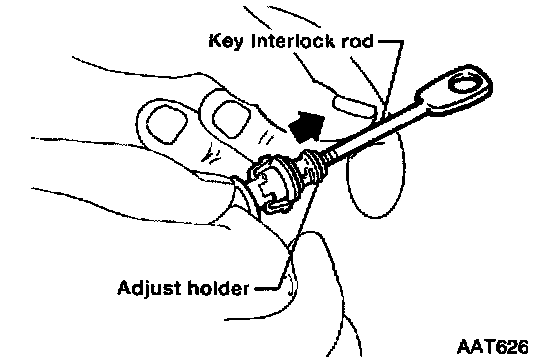

5. Insert key interlock rod into adjuster holder.





6. Install casing cap to bracket.

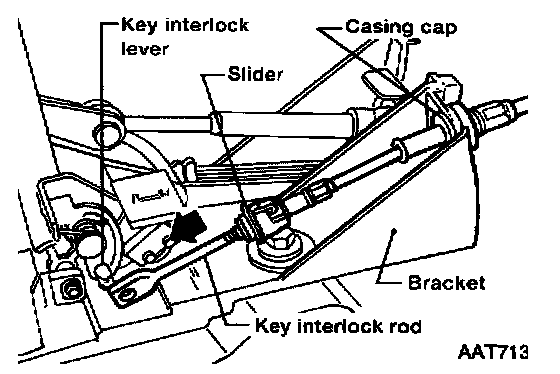

7. Install key interlock rod to key interlock lever.
8. Move slider in order to fix adjuster holder to interlock rod.
