Component Check

SHIFT LOCK SOLENOID

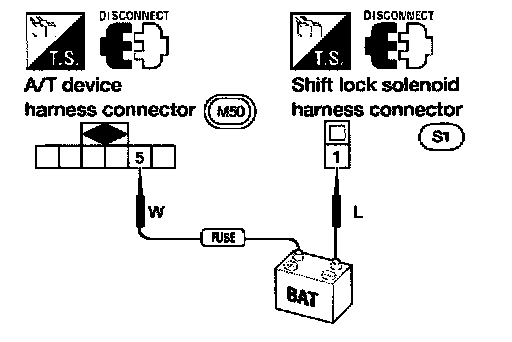

- Check operation by applying battery voltage to A/T device harness terminal (5) and shift lock solenoid harness terminal (1).

PARK POSITION SWITCH

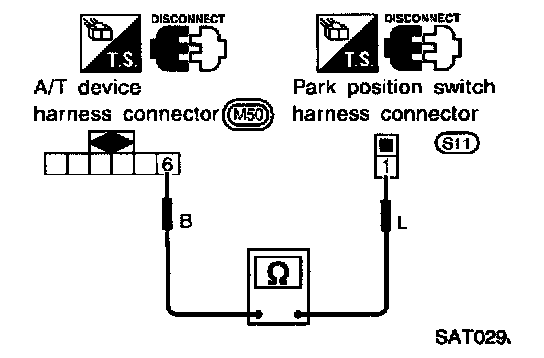

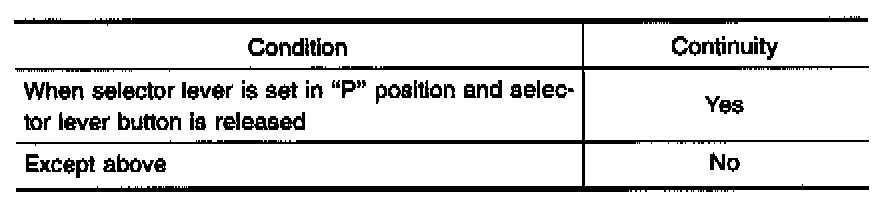

- Check continuity between A/T device harness terminal (6) and park position switch harness terminal (1).

ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

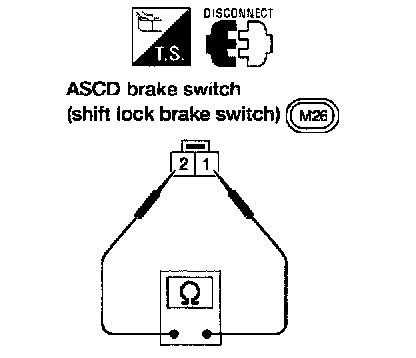

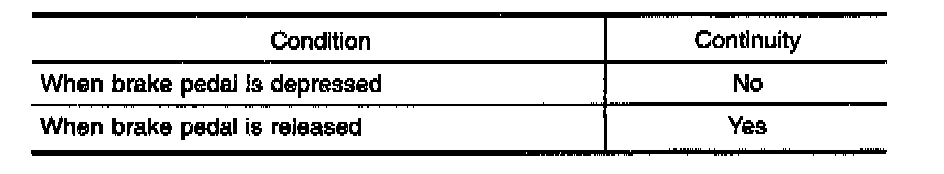

- Check continuity between terminals (1) and (2).








Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal - refer to Brakes and Traction Control.
