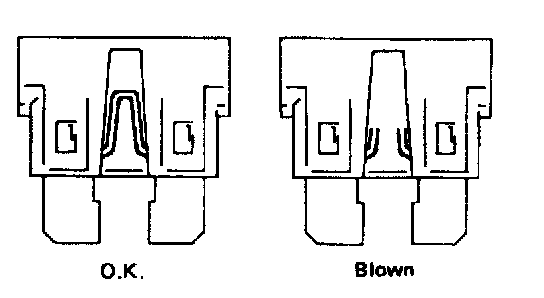

Fuse: Testing and Inspection




a. If fuse is blown, be sure to eliminate cause of problem before installing new fuse.
b. Use fuse of specified rating. Never use fuse of more than specified rating.
c. Do not partially install fuse; always insert it into fuse holder properly.
d. Remove fuse for "ELECTRICAL PARTS (BAT)" if vehicle is not used for a long period of time.
