Ignition Power Supply - Ignition Switch In "ON" and/or "START"
Schematic

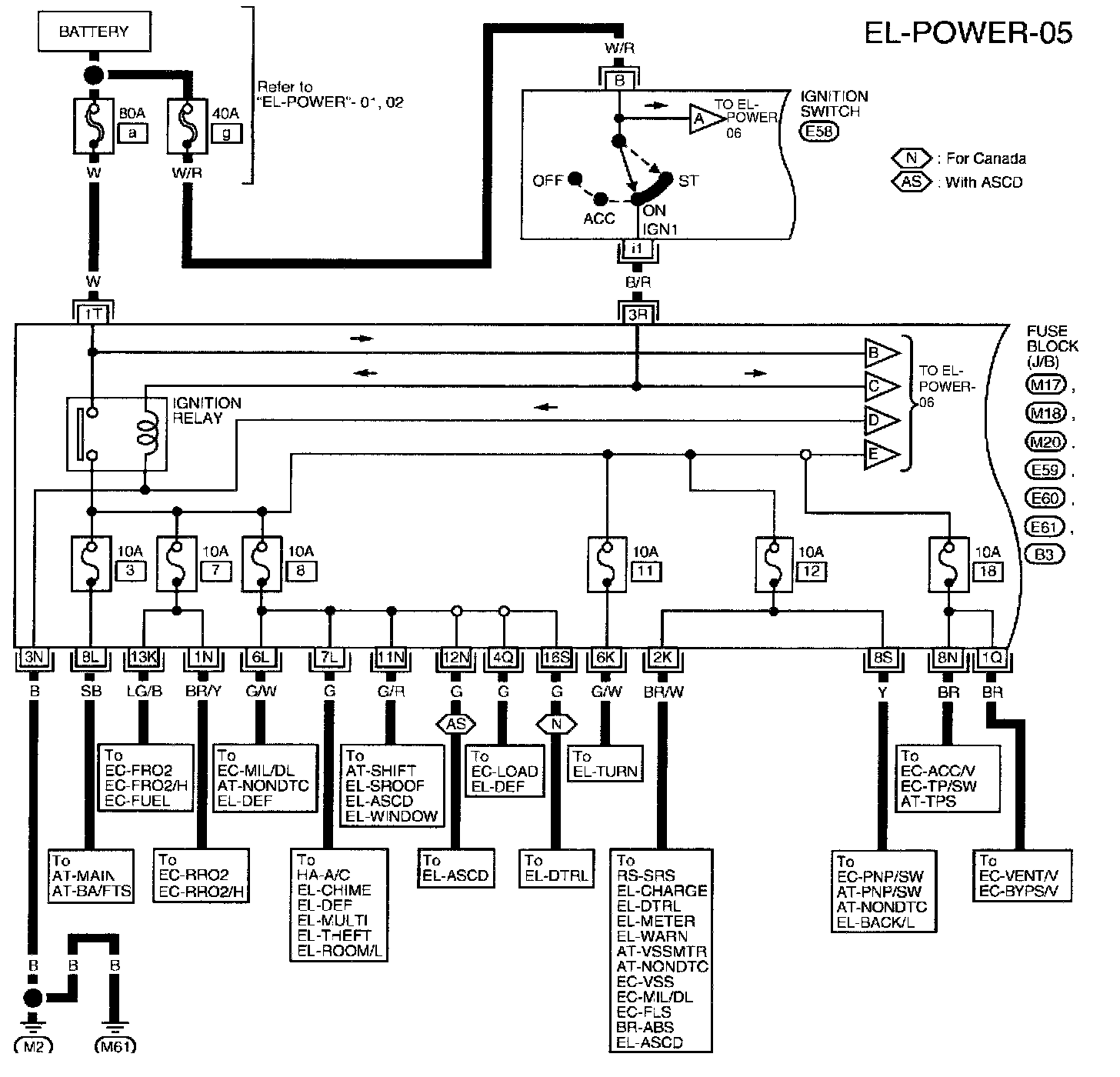

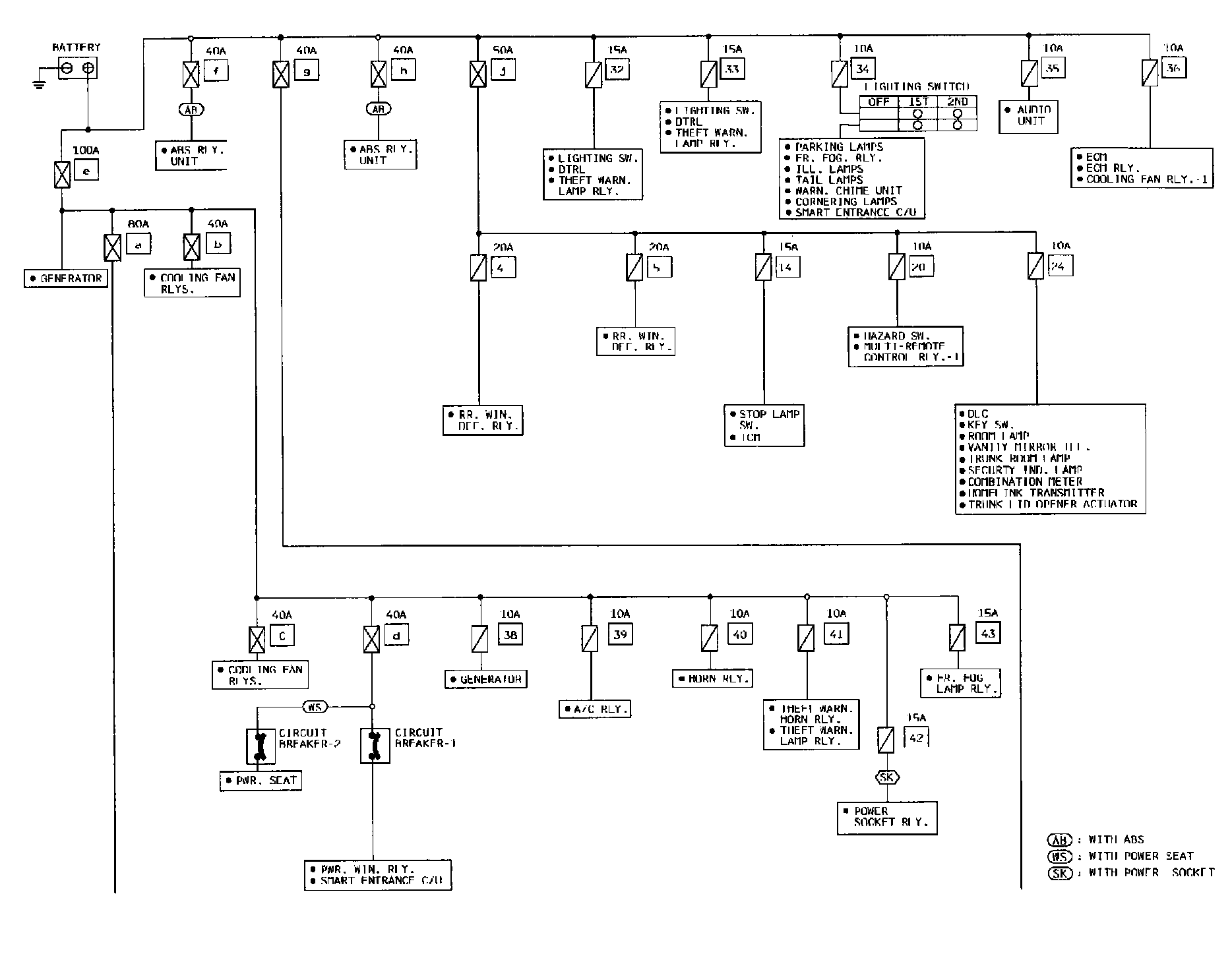

EL-POWER-05:

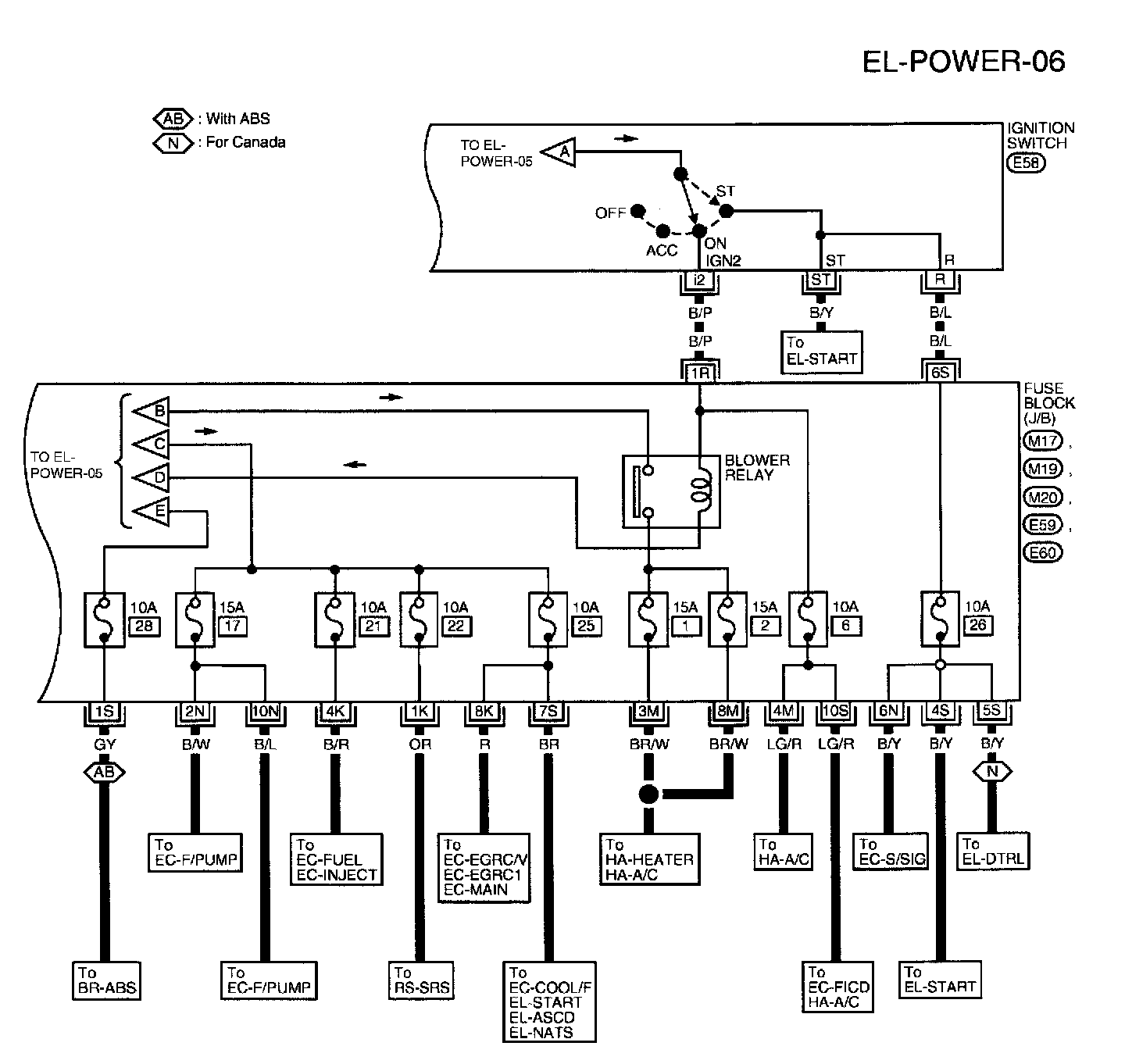

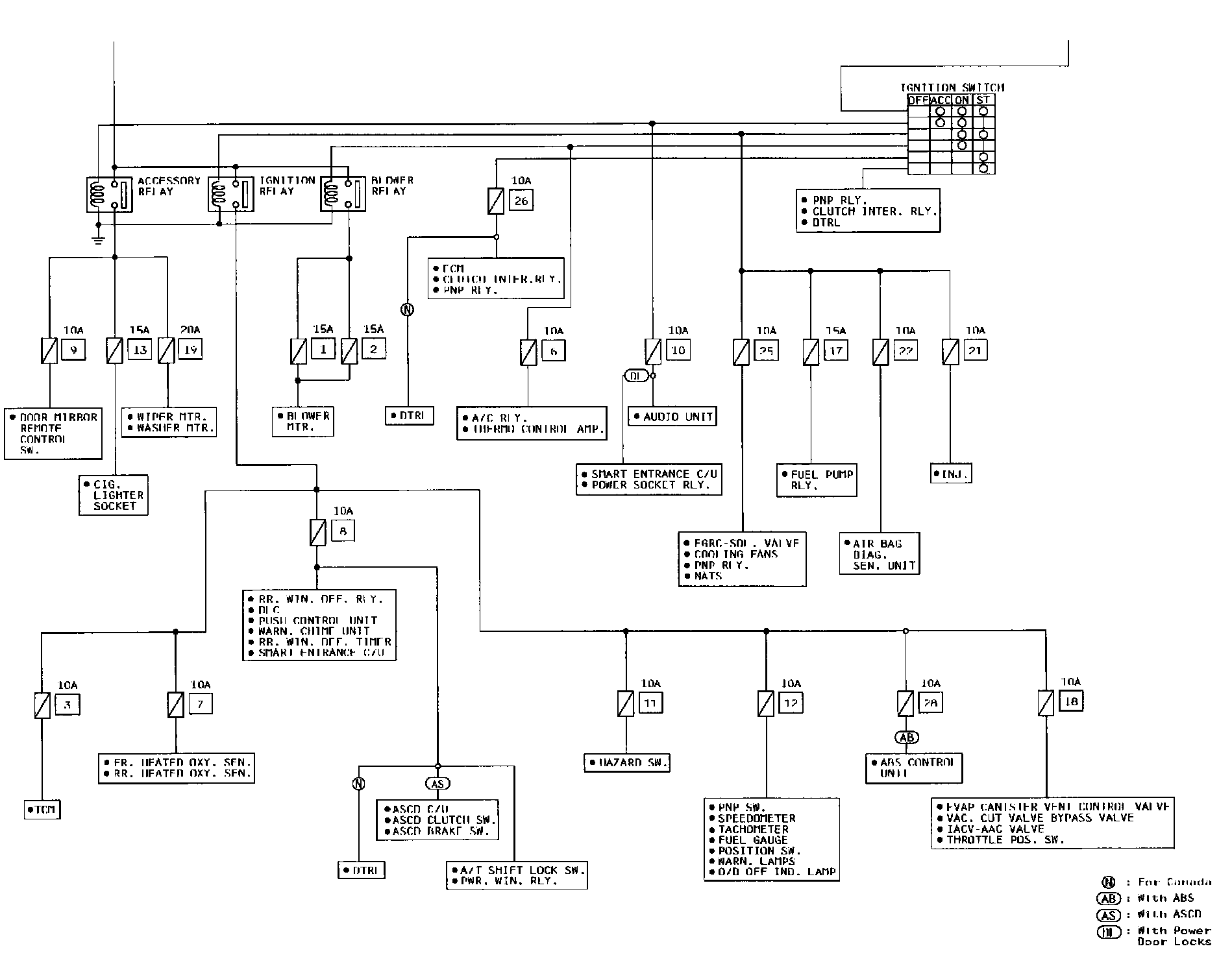

EL-POWER-06:
Circuit Diagrams
Circuit Connectors
B3, E59, E60, E61, M17, M18, M19, M20 Fuse Block-Junction Box (J/B) Terminal Arrangement
Schematic
Circuit Diagrams
Circuit Connectors
B3, E59, E60, E61, M17, M18, M19, M20 Fuse Block-Junction Box (J/B) Terminal Arrangement
