Battery Power Supply - Ignition Switch In Any Position
Schematic

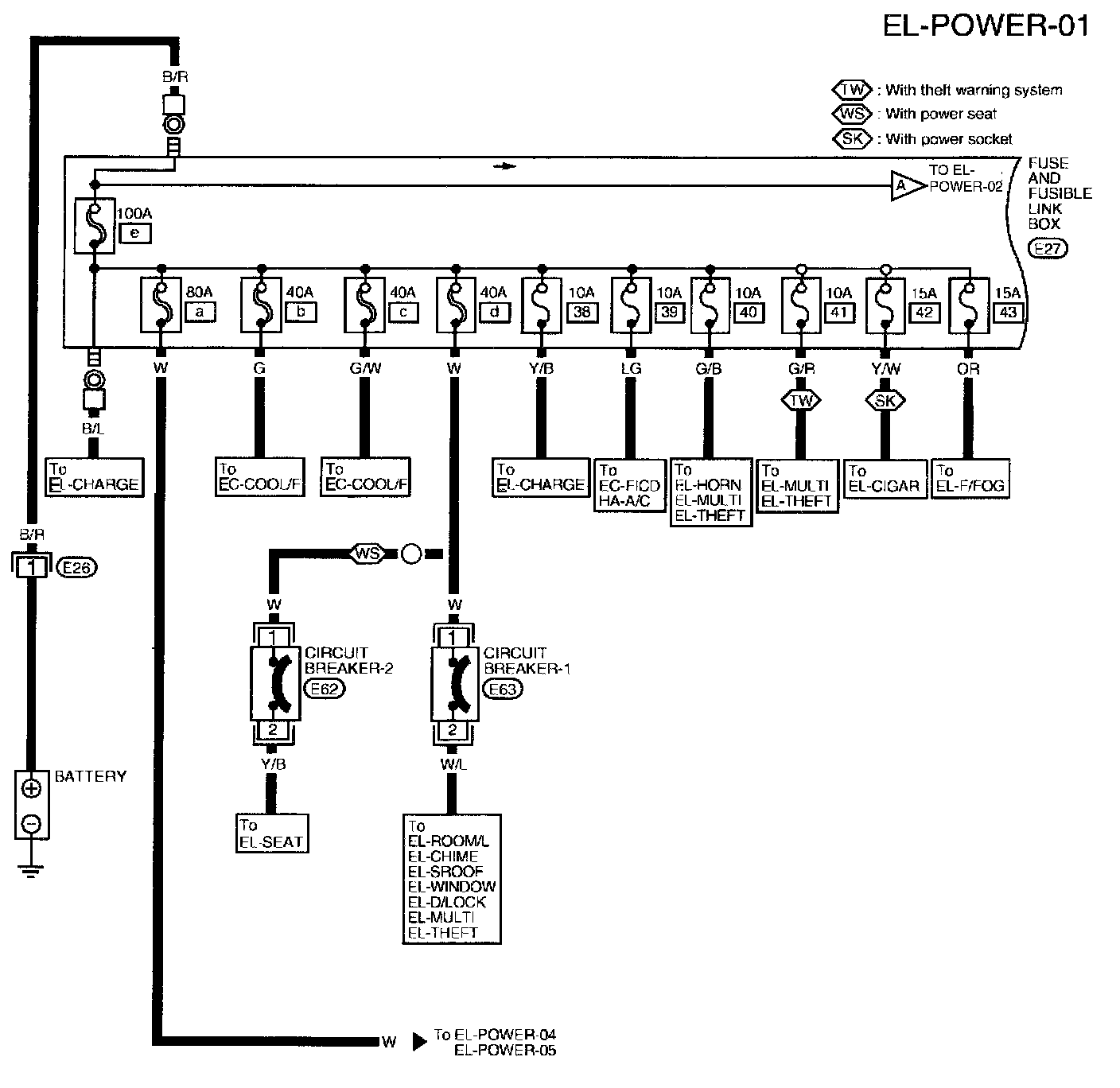

EL-POWER-01:
(Part 1 of 3)
Battery
Fuse and Fusible Link Box

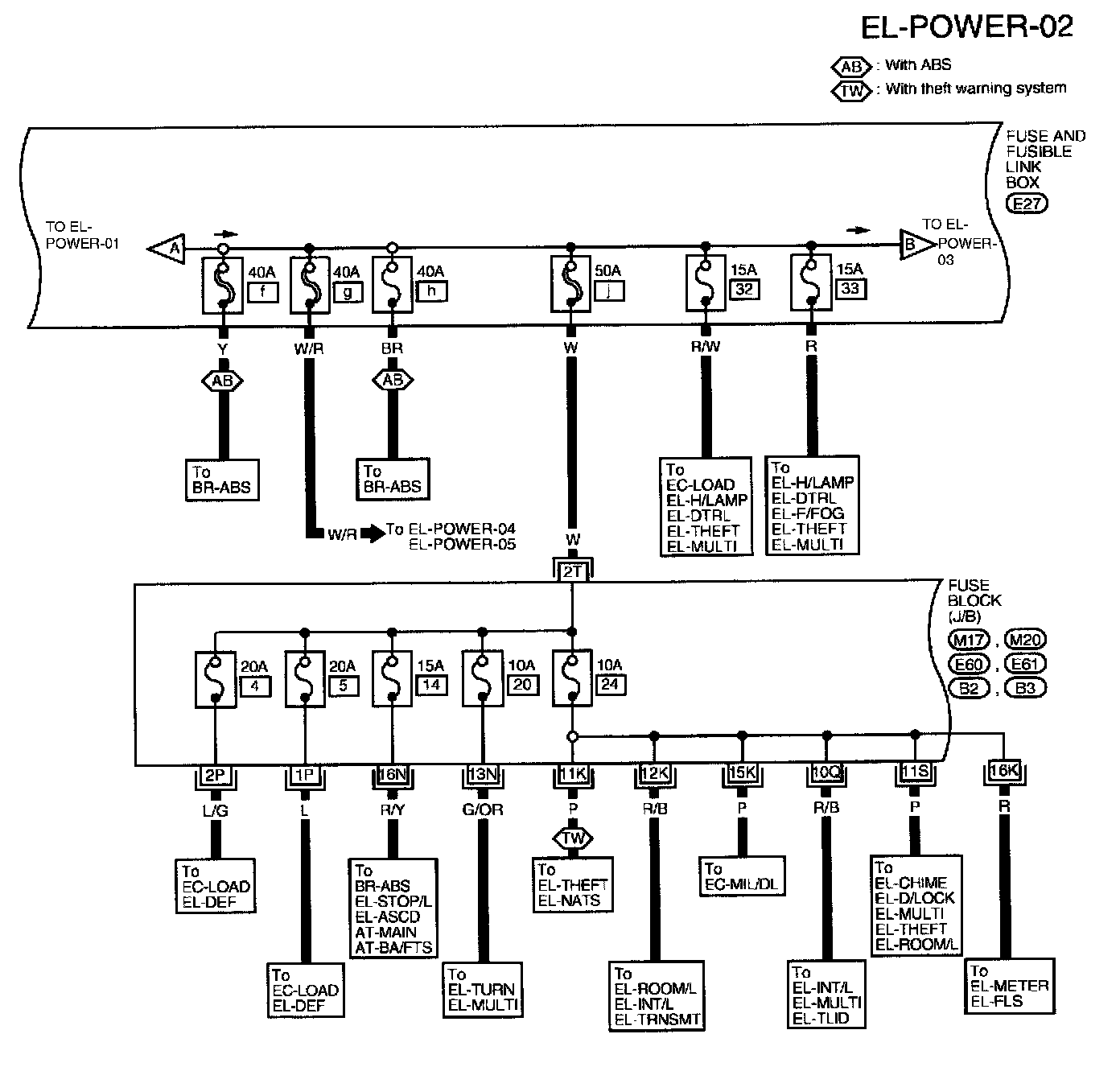

EL-POWER-02:
(Part 2 of 3)
Fuse and Fusible Link Box
Fuse Block (J/B)

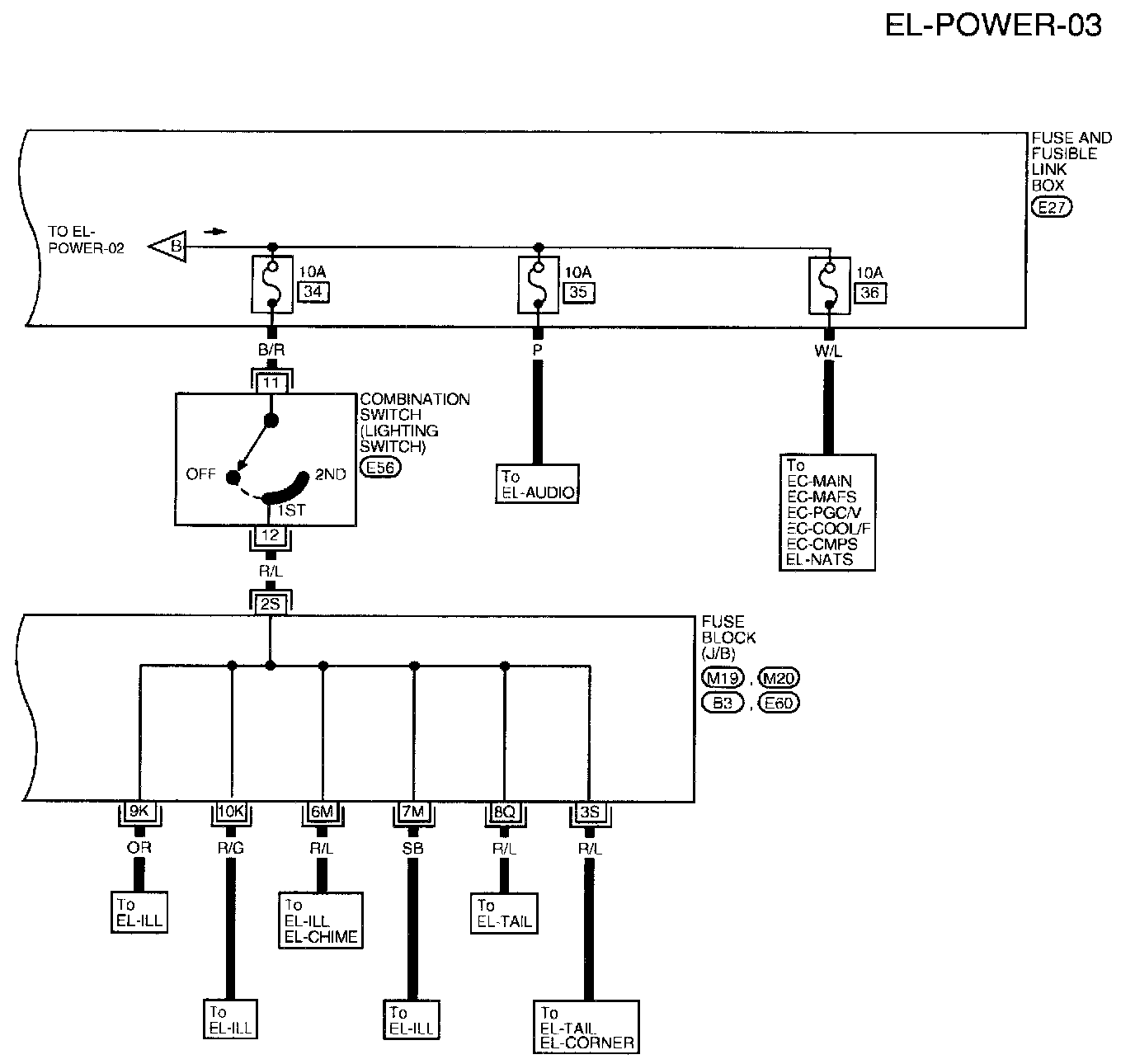

EL-POWER-03:
(Part 3 of 3)
Combination Switch (Lighting Switch)
Fuse Block (J/B)
Fuse and Fusible Link Box
Circuit Diagrams

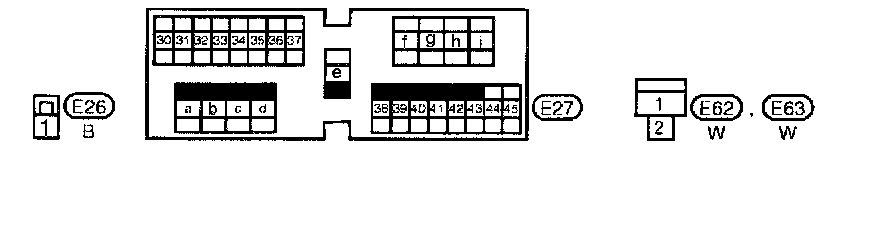

Circuit Connectors

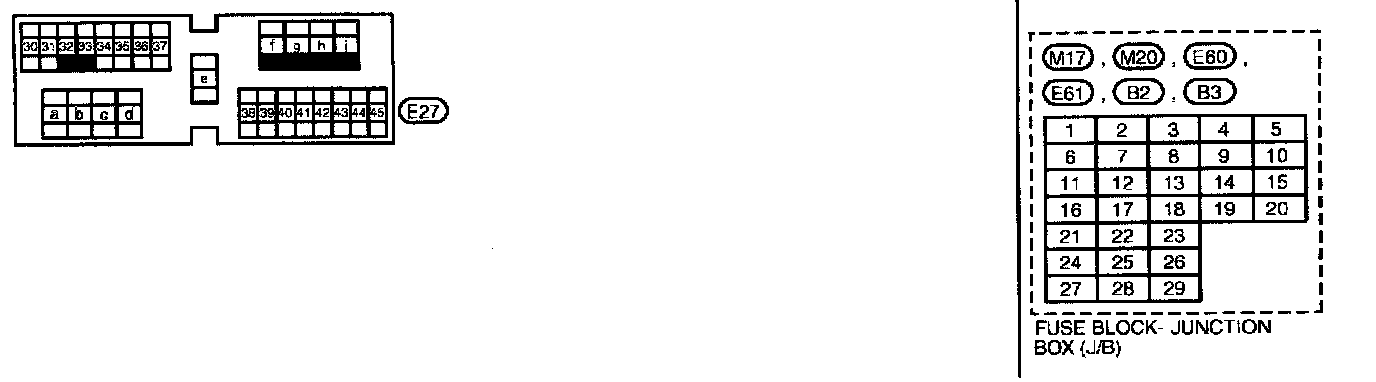

M17, M19, M20, E60, E61, B2, B3 Fuse Block-Junction Box (J/B) Terminal Arrangement
