Alternator: Service and Repair

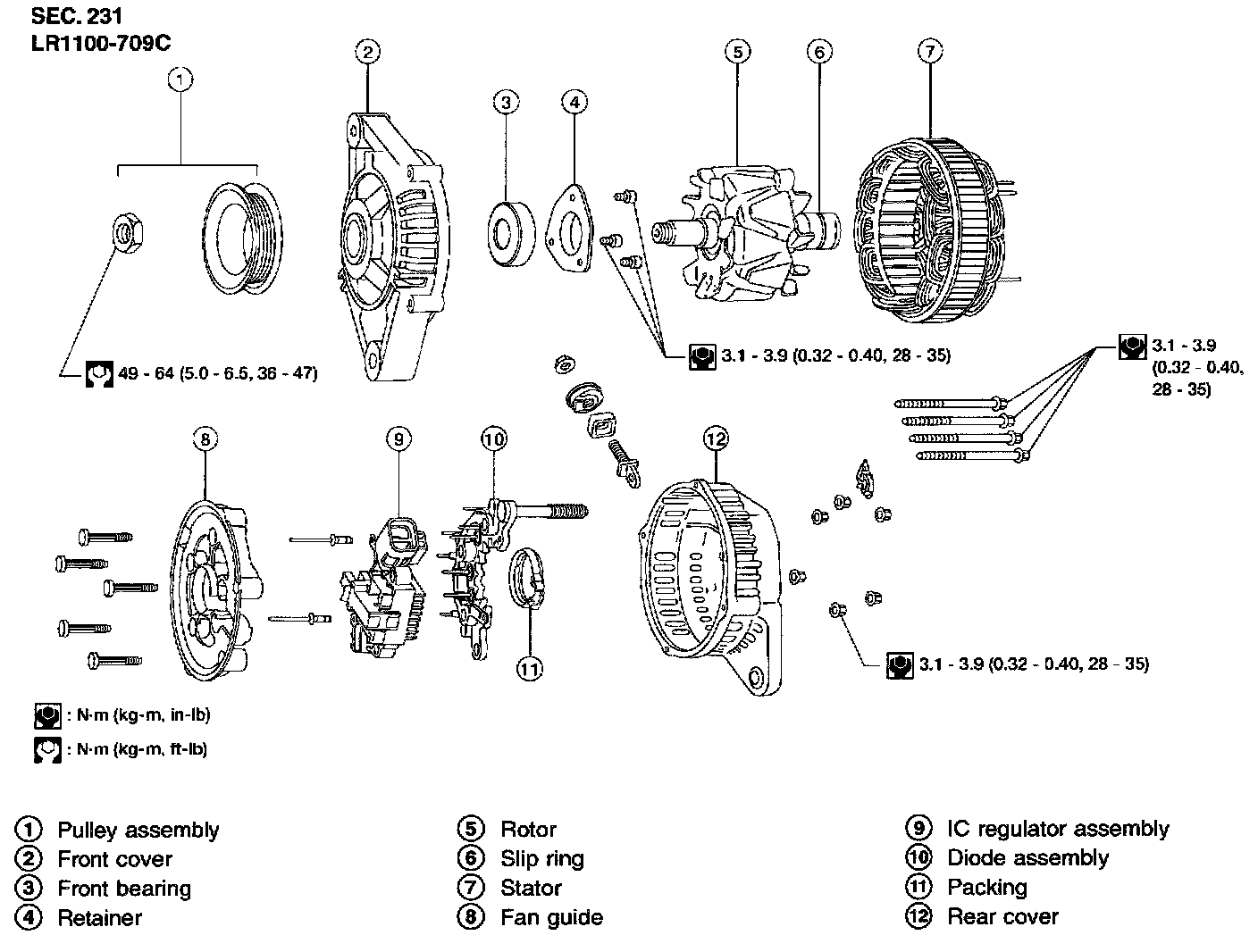

Construction

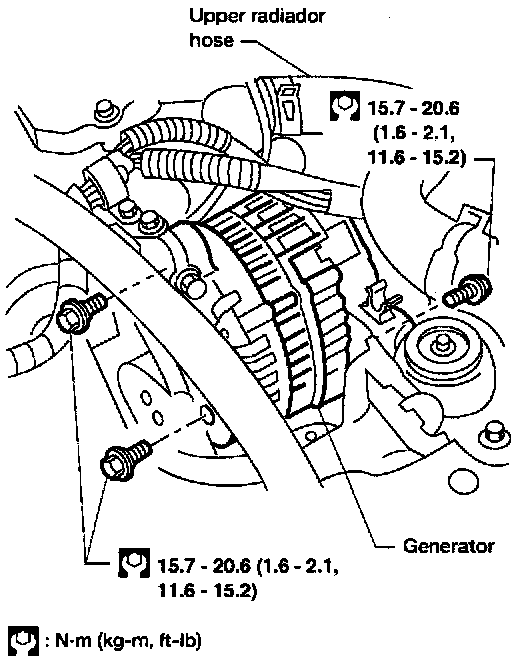

REMOVAL
1. Remove upper radiator hose.
2. Disconnect harness connectors, harness stay and harness to A/C compressor.
3. Release accelerator wire.
4. Back off adjustment bolt, remove belt.
5. Remove three generator bolts and generator.

INSTALLATION
To install, reverse the removal procedure.
