Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Engine coolant temperature sensor

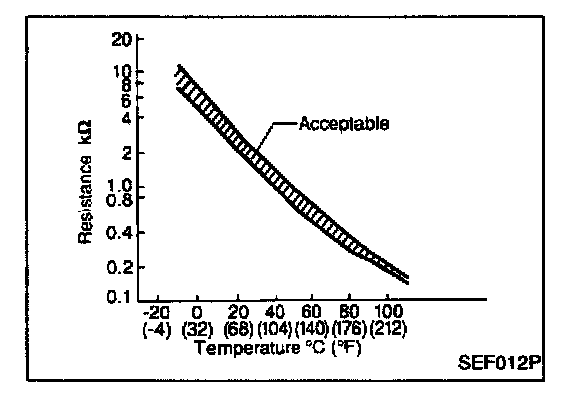

Check resistance as shown in the figure.

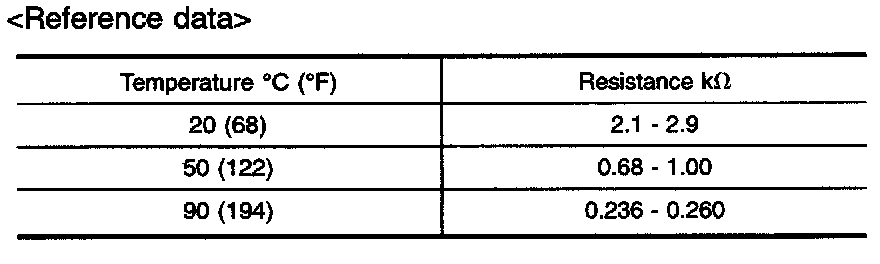

Reference Data:

If NG, replace engine coolant temperature sensor.
