Combination Switch: Service and Repair

For removal and installation of spiral cable, refer to ["Driver - Air Bag Module and Spiral Cable", "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)"].

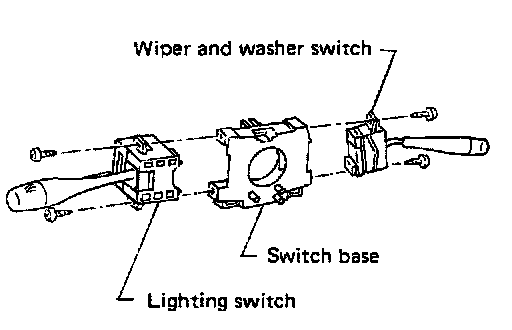

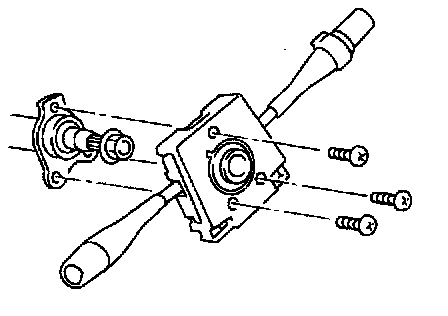

- Each switch can be replaced without removing combination switch base.





- To remove combination switch base, remove base attaching screws.

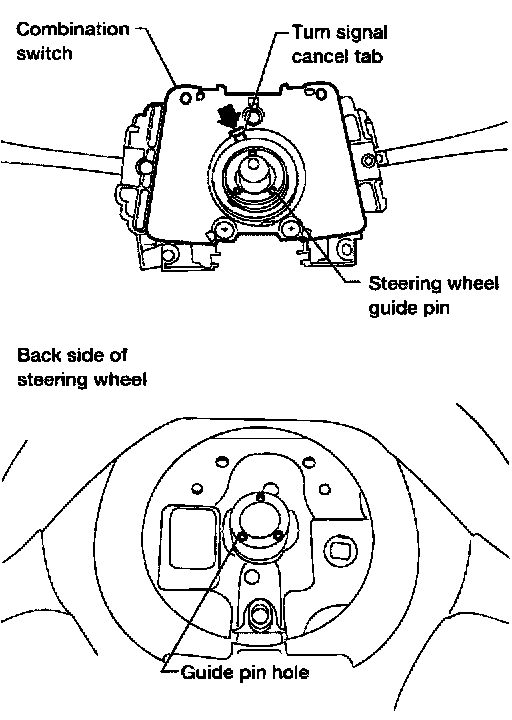

- Before installing the steering wheel, align the turn signal cancel tab with the notch of combination switch. Refer to Supplemental Restraint System ("INSTALLATION", "Driver Air Bag Module and Spiral Cable").
