Wheel Speed Sensor: Service and Repair

Removal and Installation

CAUTION:
^ Be careful not to damage sensor edge and sensor rotor teeth.
^ When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away

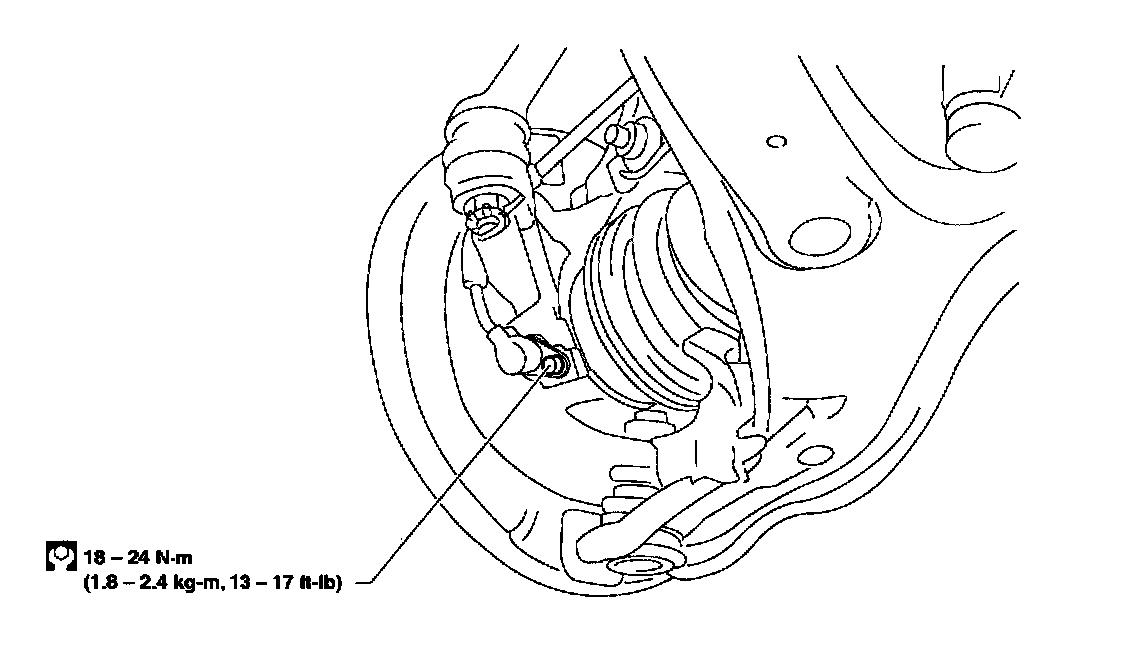

FRONT WHEEL SENSOR

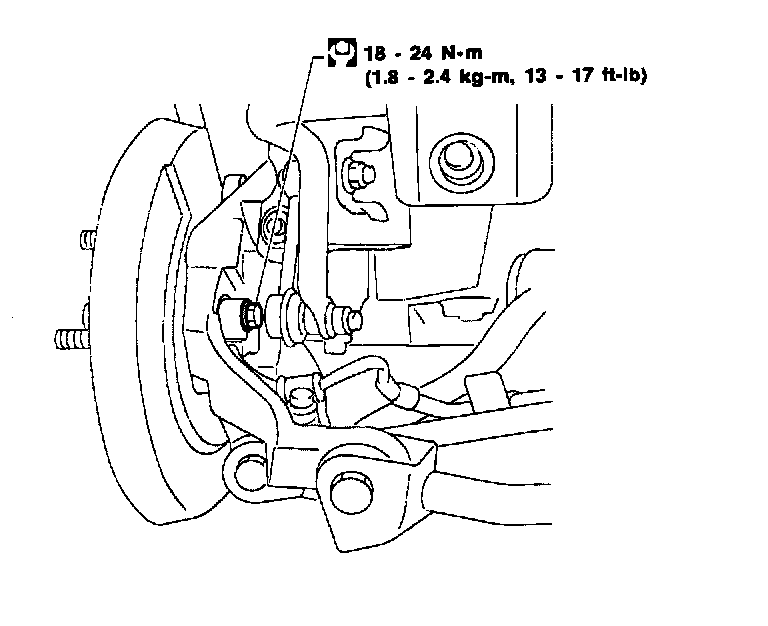

REAR WHEEL SENSOR
