With Manufacturer Scan Tool (CONSULT-II)

WITH CONSULT-II

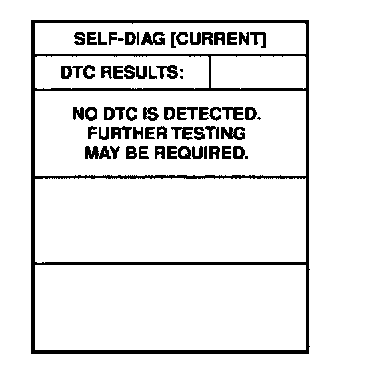

SELF-DIAG [CURRENT]
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time. After the malfunction is repaired completely, no malfunction is detected on "SELF-DIAG [CURRENT]".





SELF-DIAG [PAST]
Return to the "SELF-DIAG (CURRENT]" CONSULT-II screen by pushing "BACK" key of CONSULT-II and select "SELF-DIAG (CURRENT]" in "SELECT DIAG MODE". Touch "ERASE" in "SELF-DIAG [CURRENT]" mode.

NOTE: If the memory of the malfunction in "SELF-DIAG [PAST]" is not erased, the User mode shows the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

TROUBLE DIAG RECORD
The memory of "TROUBLE DIAG RECORD" cannot be erased.
