Removal and Installation

REMOVAL

CAUTION:
- Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and waft for at least 3 minutes.
- Always work from the side of or under air bag module.





1. Remove glove box assembly.
2. Disconnect air bag module connector.
3. Remove RH upper knee protector.
4. Remove RH side ventilator duct.

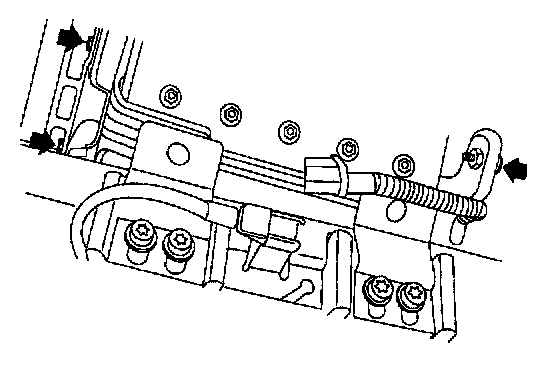

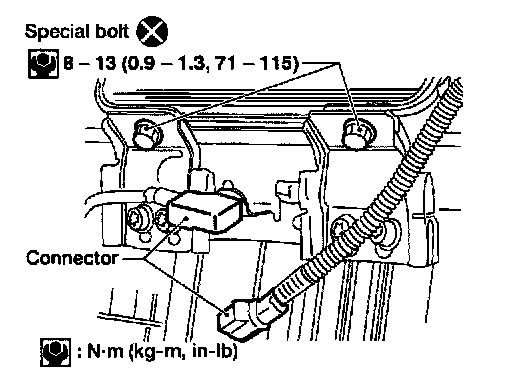

5. Remove the two special bolts.





6. Remove three mounting bolts.





7. Remove air bag module by releasing the clips from the top of the instrument pane!.
- Air bag module is heavy and should be supported using both hands during removal.





CAUTION

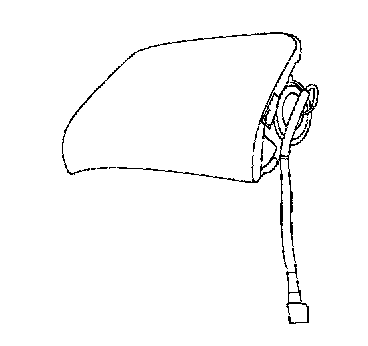

- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new coated bolts.





- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.
- Do not drop or impact air bag module. If any portion is deformed or cracked, replace the module.
- Do not expose the air bag module to temperatures exceeding 90 °C (194 °F).
- Do not allow oil, grease or water to come in contact with the air bag module.

INSTALLATION

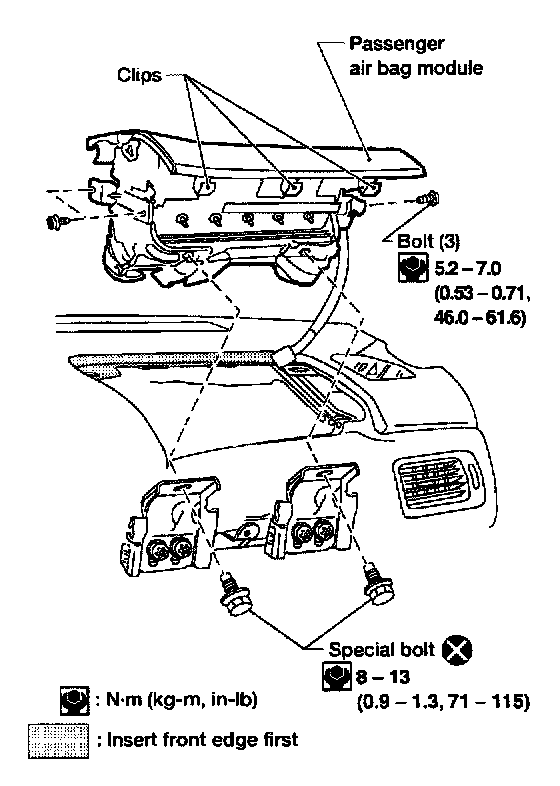

1. Install passenger air bag module in instrument panel.
- Insert front edge of air bag module first to ease installation.
- Ensure harness is not caught between air bag module and support bracket.
- Install three mounting bolts.
- Install two new special bolts.

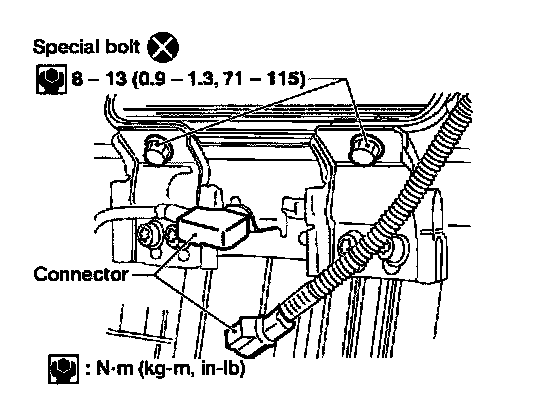

2. Connect passenger air bag module connector to air bag harness.
3. Install glove box assembly.
4. Conduct Self-diagnosis to ensure SRS operates properly. (Use CONSULT-II or warning lamp check.)
