Home >> Nissan-Datsun >> 2000 >> Altima GXE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

SYMPTOM CHART

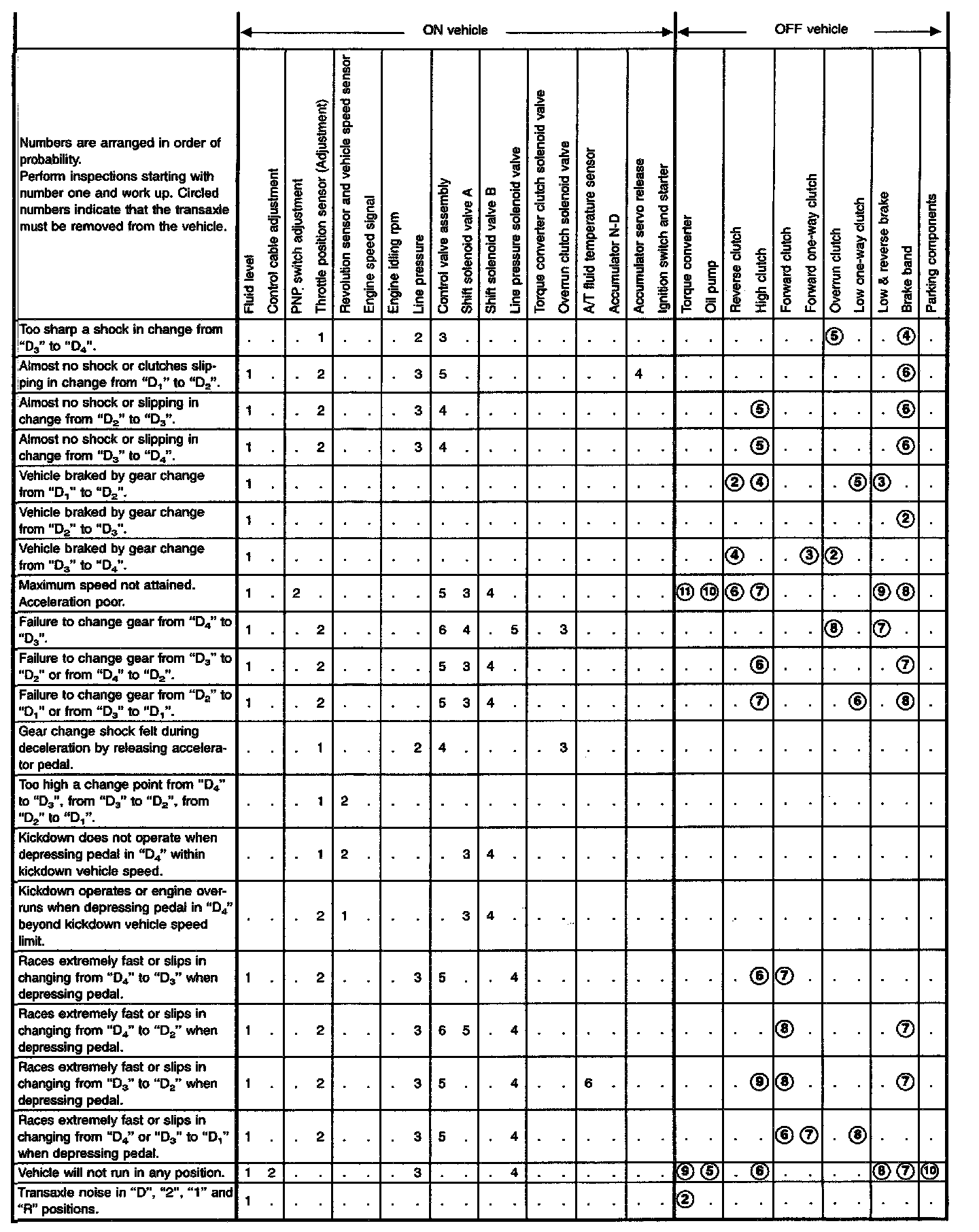

Part 1 of 3

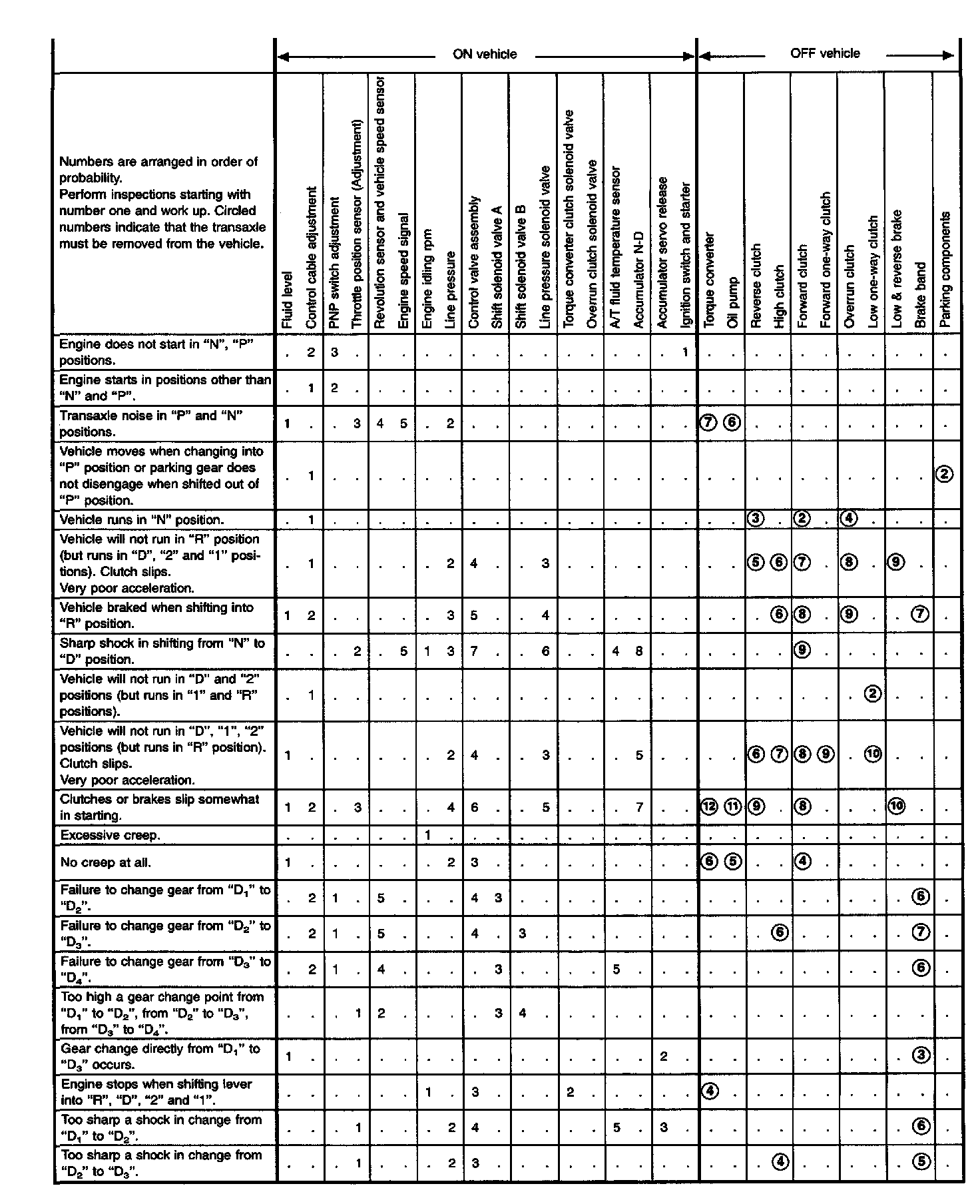

Part 2 of 3

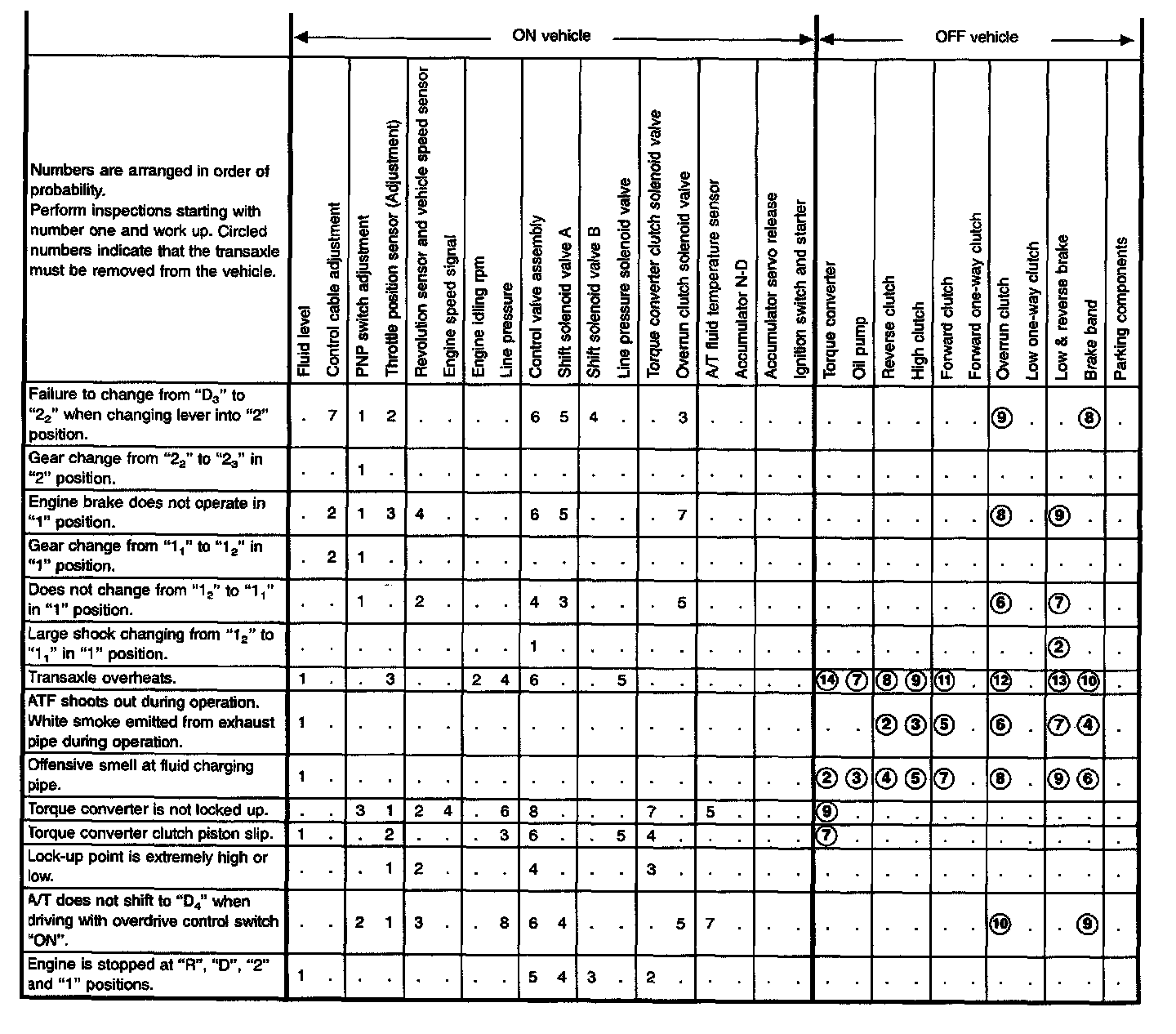

Part 3 of 3
