Electrical Diagrams

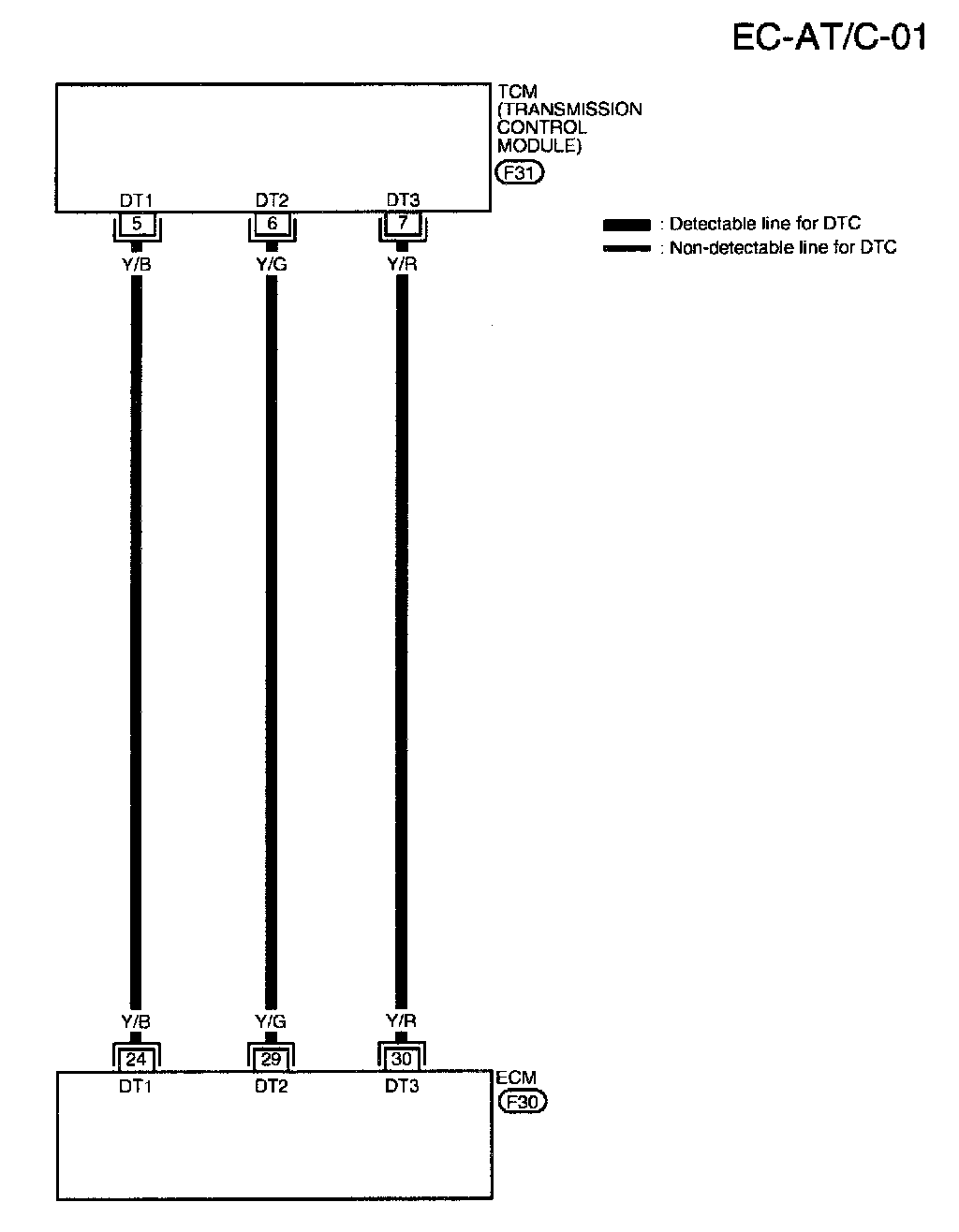

EC-AT/C-01:

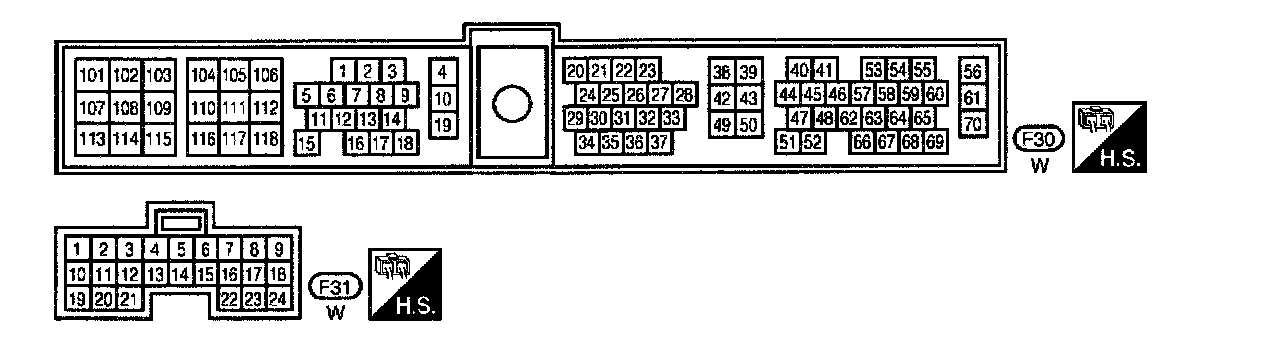

EC-AT/C-01 - Connector View:
P0600 A/T Control

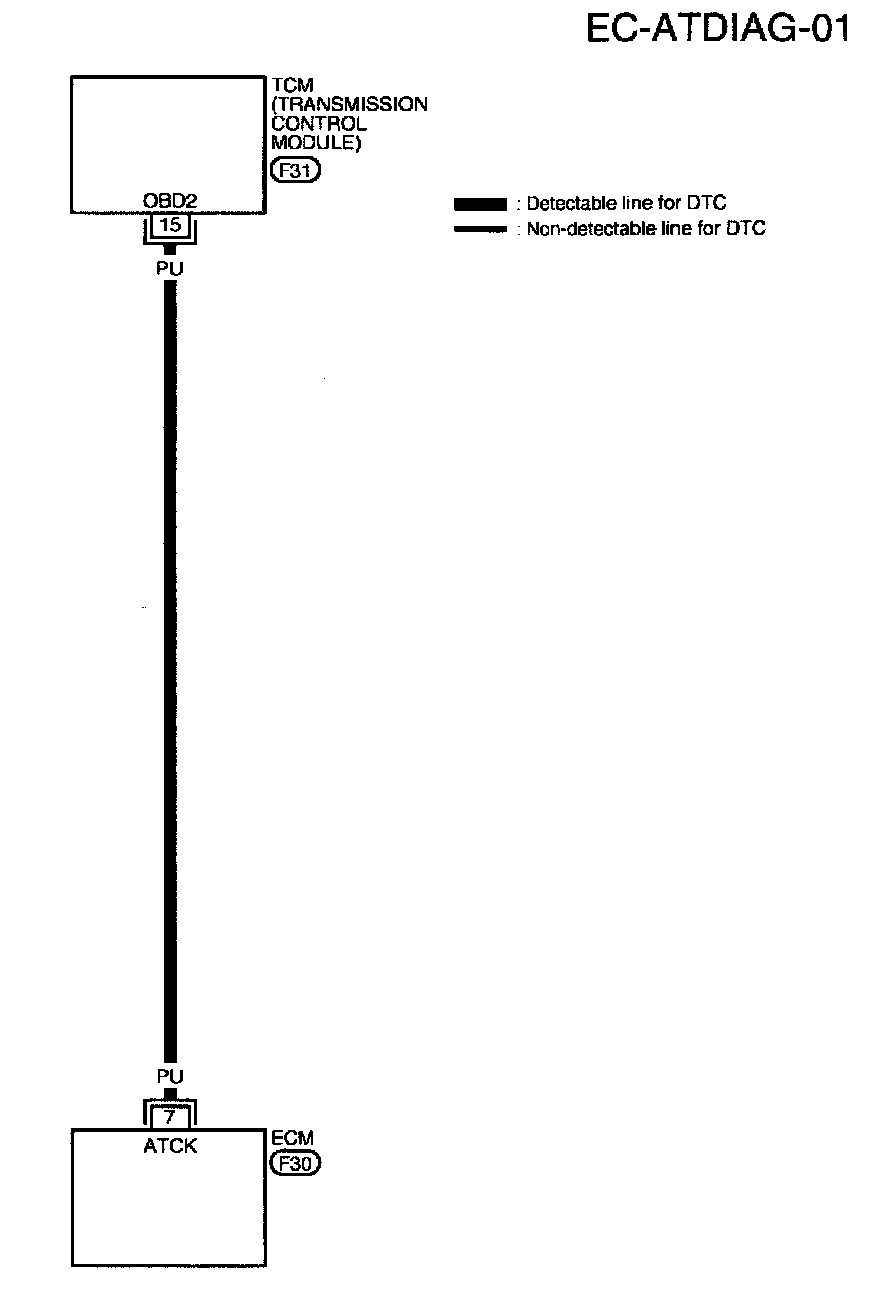

EC-ATDIAG-01:

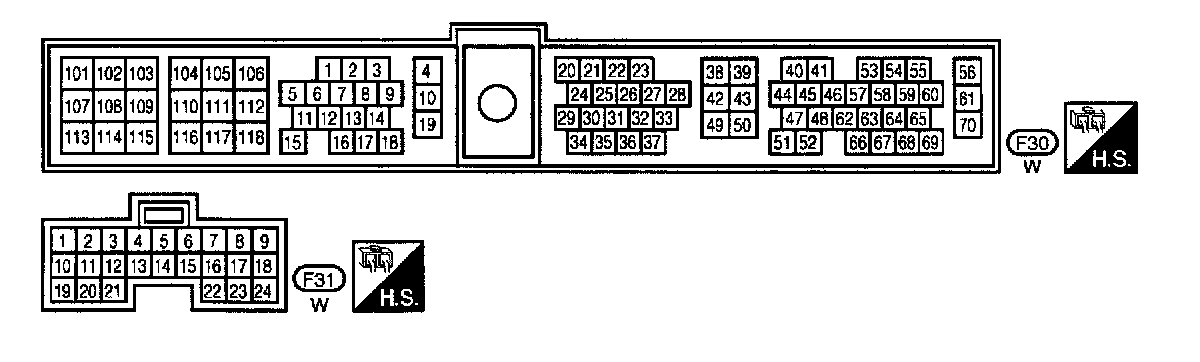

EC-ATDIAG-01 - Connector View:
P1605 A/T Diagnosis Communication Line
