Introduction

The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actuators. The ECM also records various emission-related diagnostic information including:
- Diagnostic Trouble Code (DTC) Mode 3 of SAE J1979
- Freeze Frame data Mode 2 of SAE J1979
- System Readiness Test (SRT) code Mode 1 of SAE J1979
- 1st Trip Diagnostic Trouble Code (1st Trip DTC) Mode 7 of SAE J1979
- 1st Trip Freeze Frame data
- Test values and Test limits Mode 6 of SAE J1979

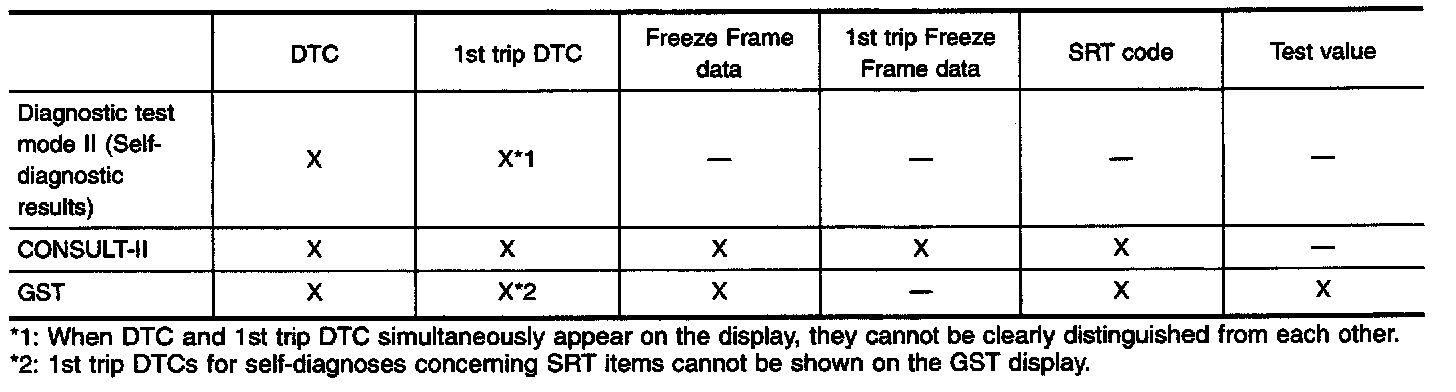

The above information can be checked using procedures listed in the table.

The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode.
