Start Signal

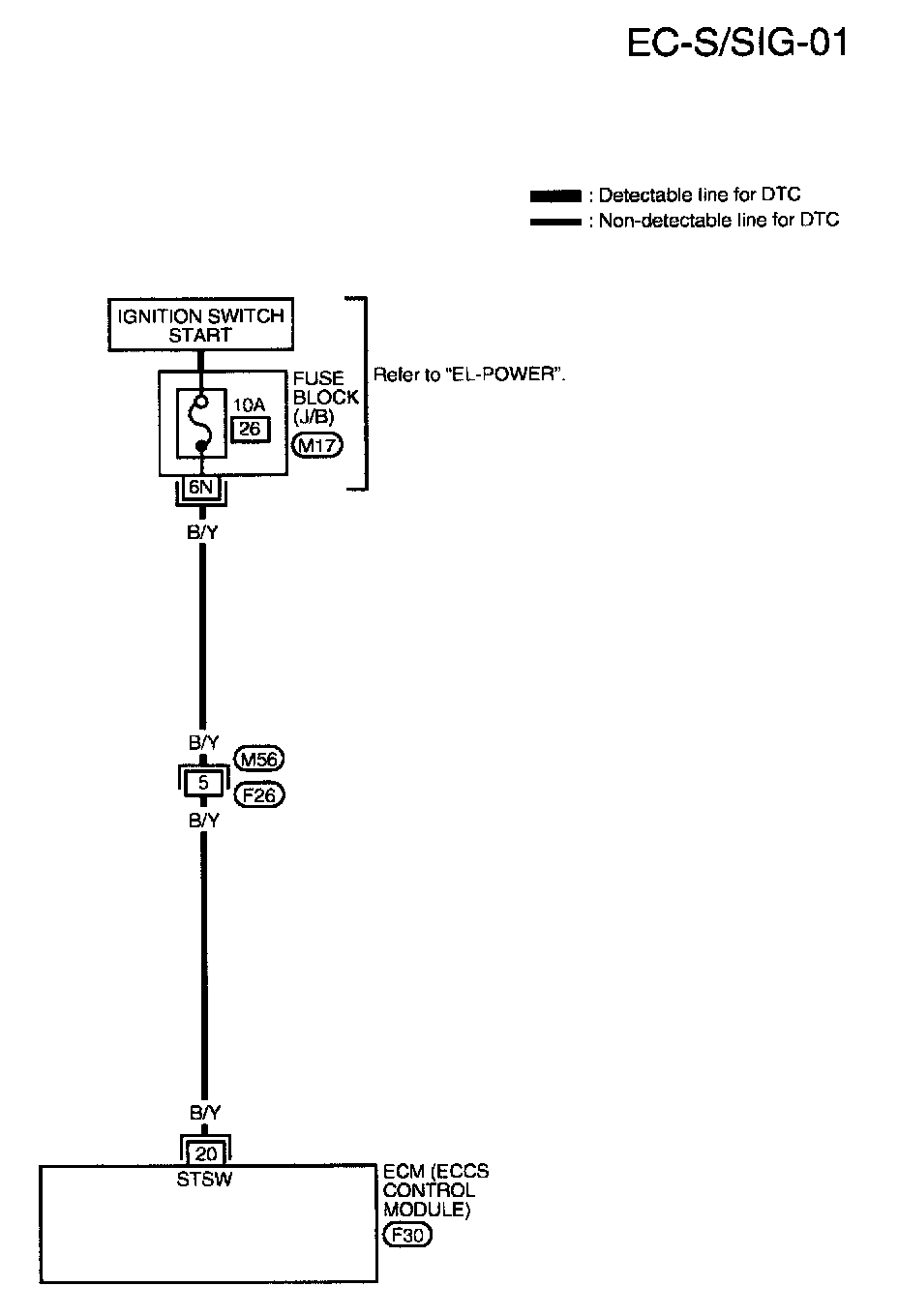

EC-S/SIG/-01:

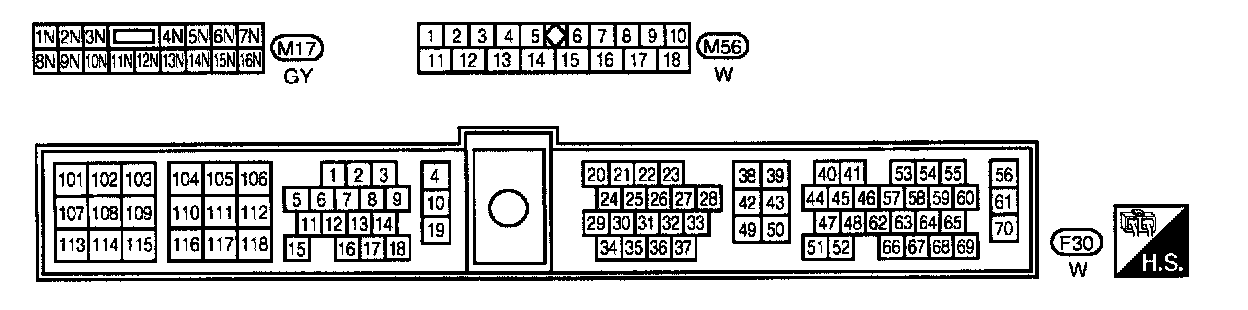

EC-S/SIG/-01 - Connector View:




WIRING DIAGRAM

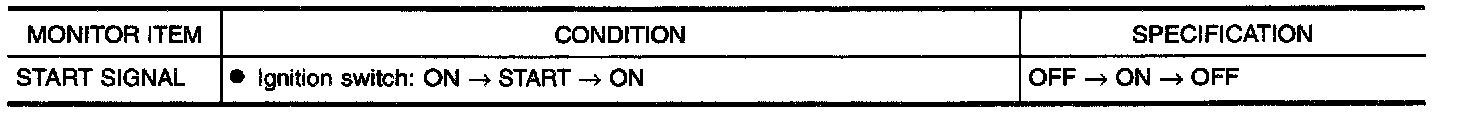

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

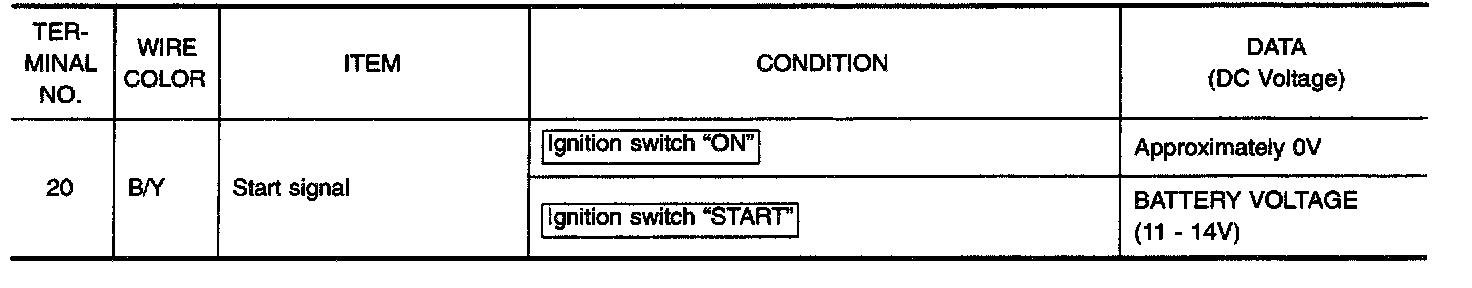

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

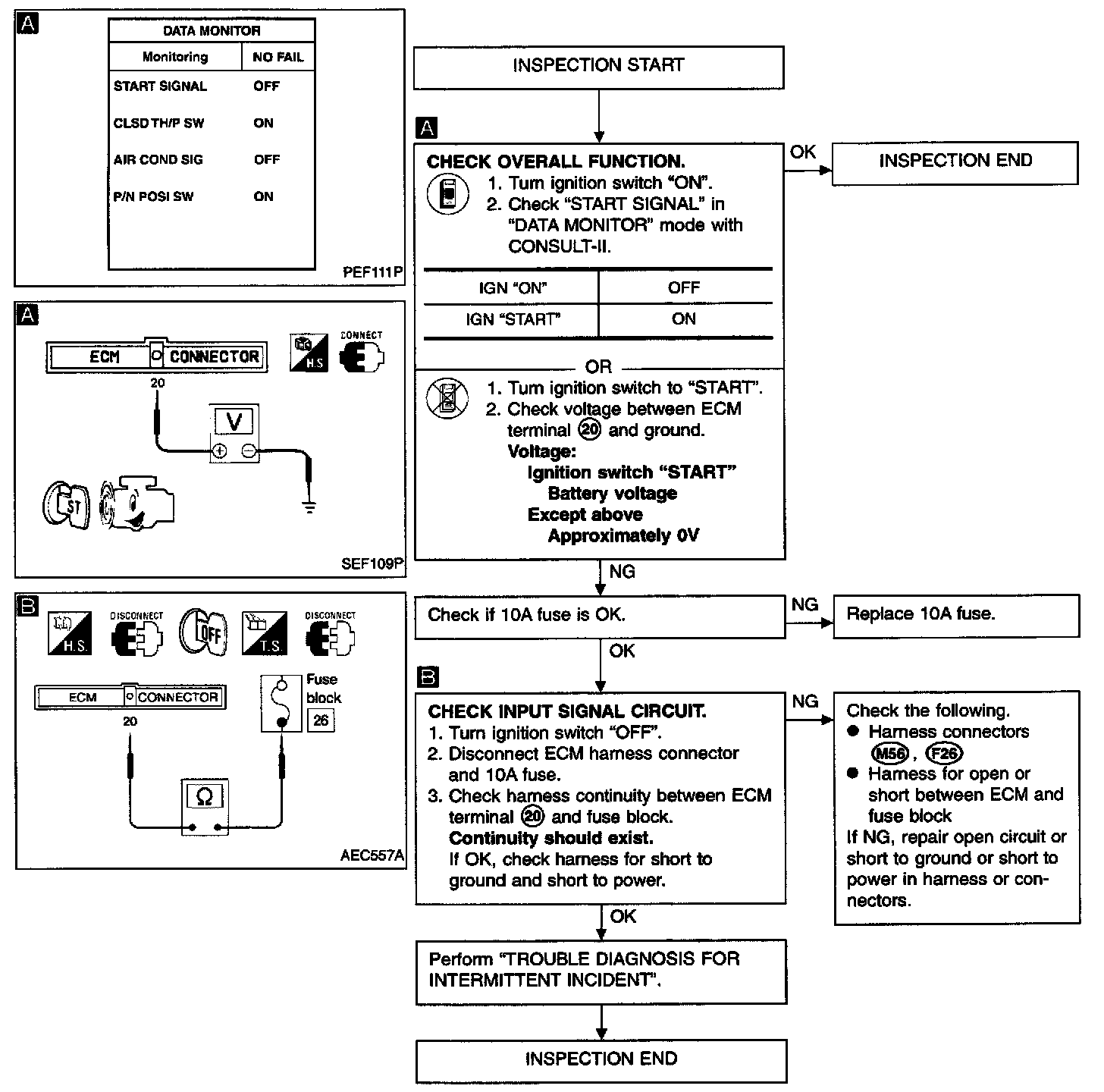

Diagnostic Procedure:




DIAGNOSTIC PROCEDURE
