Fuel Pump

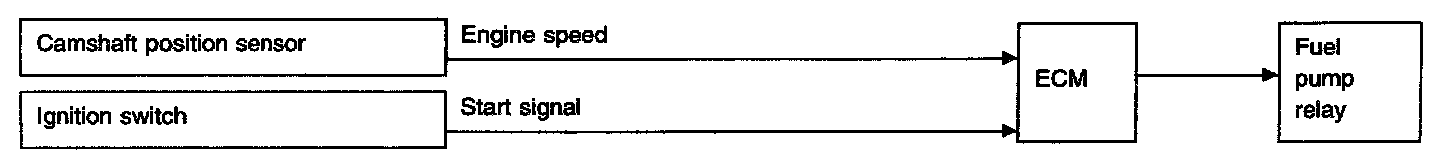

SYSTEM DESCRIPTION

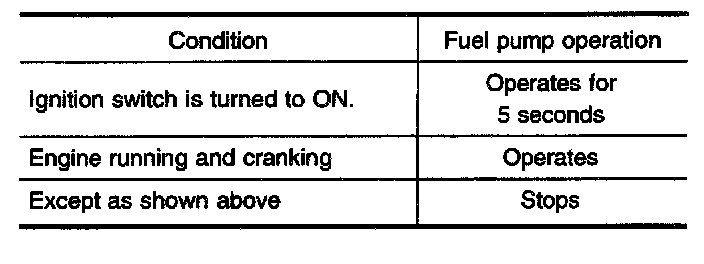

The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine startability. If the ECM receives a 1800 signal from the camshaft position sensor, it knows that the engine is rotating, and causes the pump to perform If the 1800 signal is not received when the ignition switch is on, the engine stalls. The ECM stops pump operation and prevents battery discharging, thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump relay, which in turn controls the fuel pump.




COMPONENT DESCRIPTION

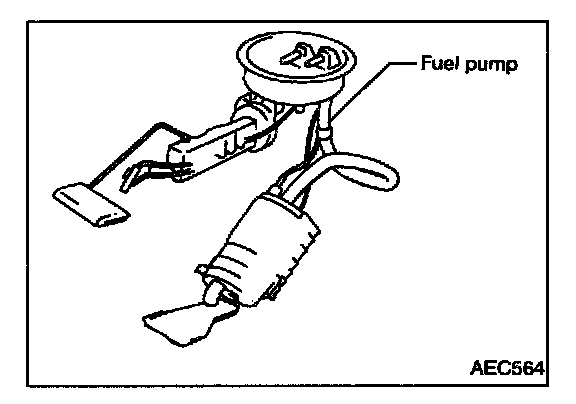

The fuel pump with a fuel damper is an in-tank type (the pump and damper are located in the fuel tank).

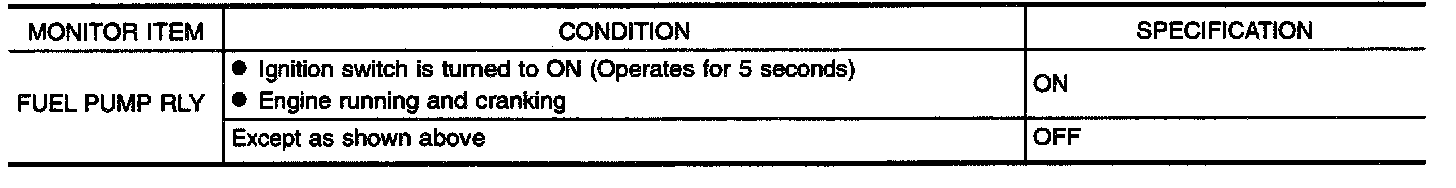

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

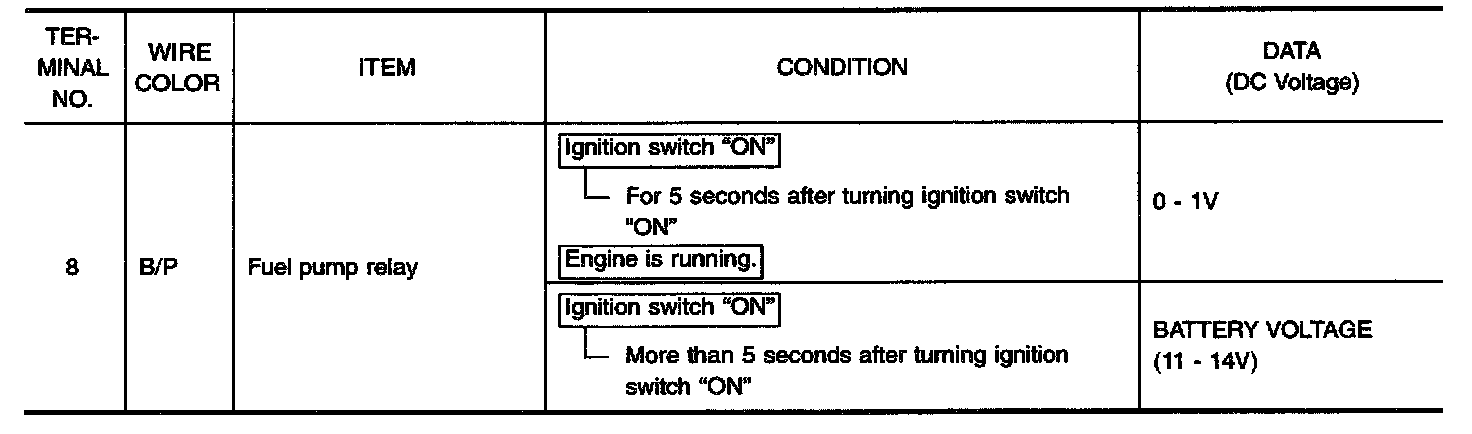

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

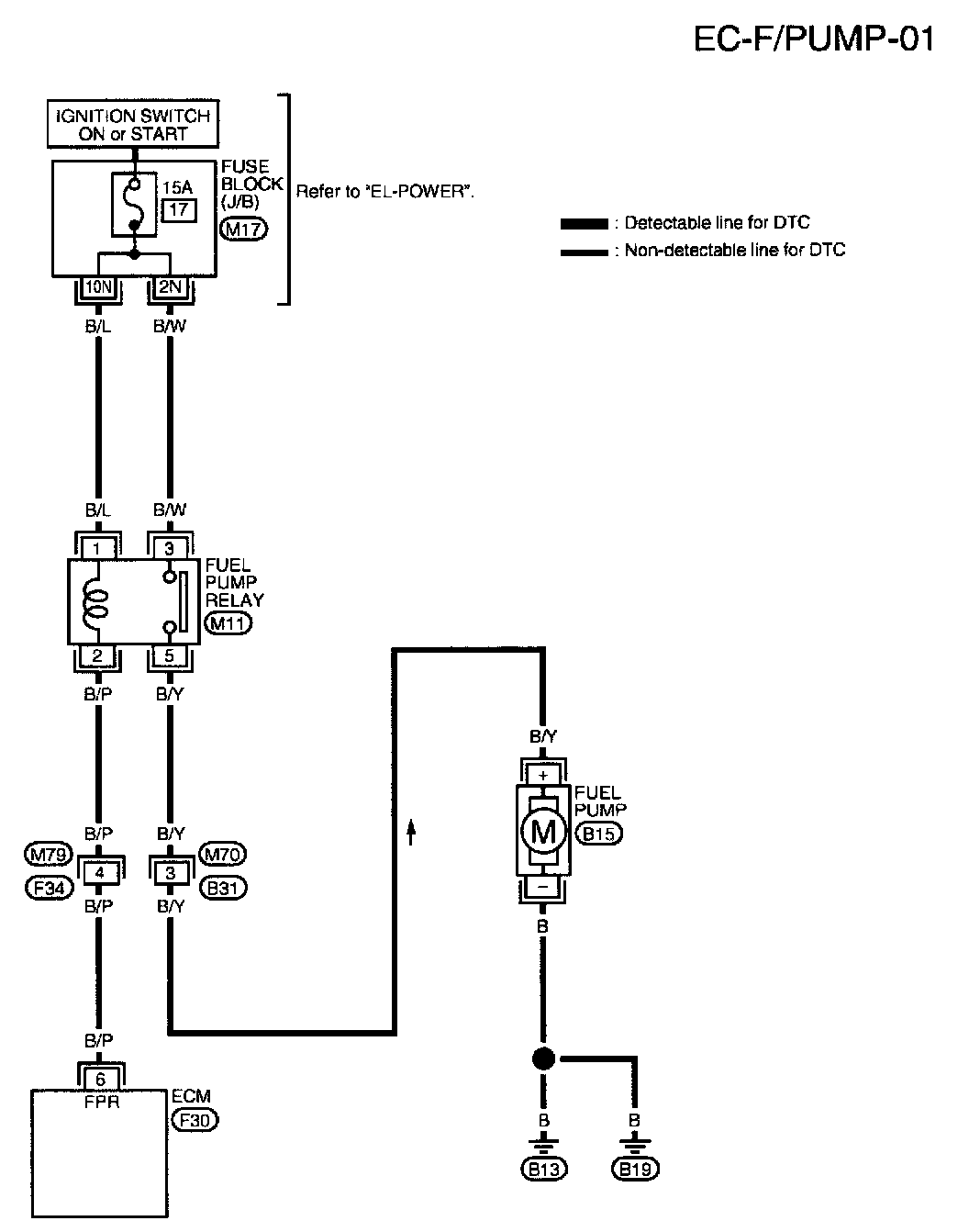

EC-F/PUMP-01:

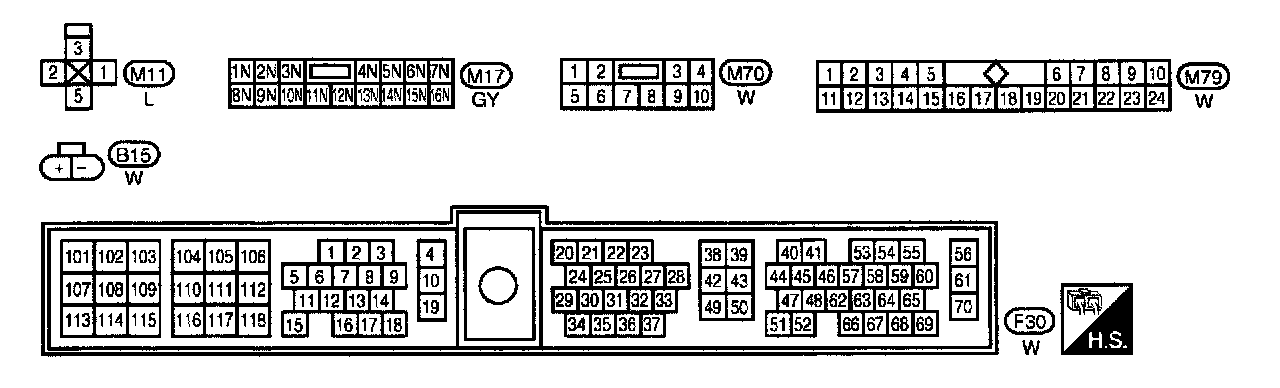

EC-F/PUMP-01 - Connector View:

WIRING DIAGRAM

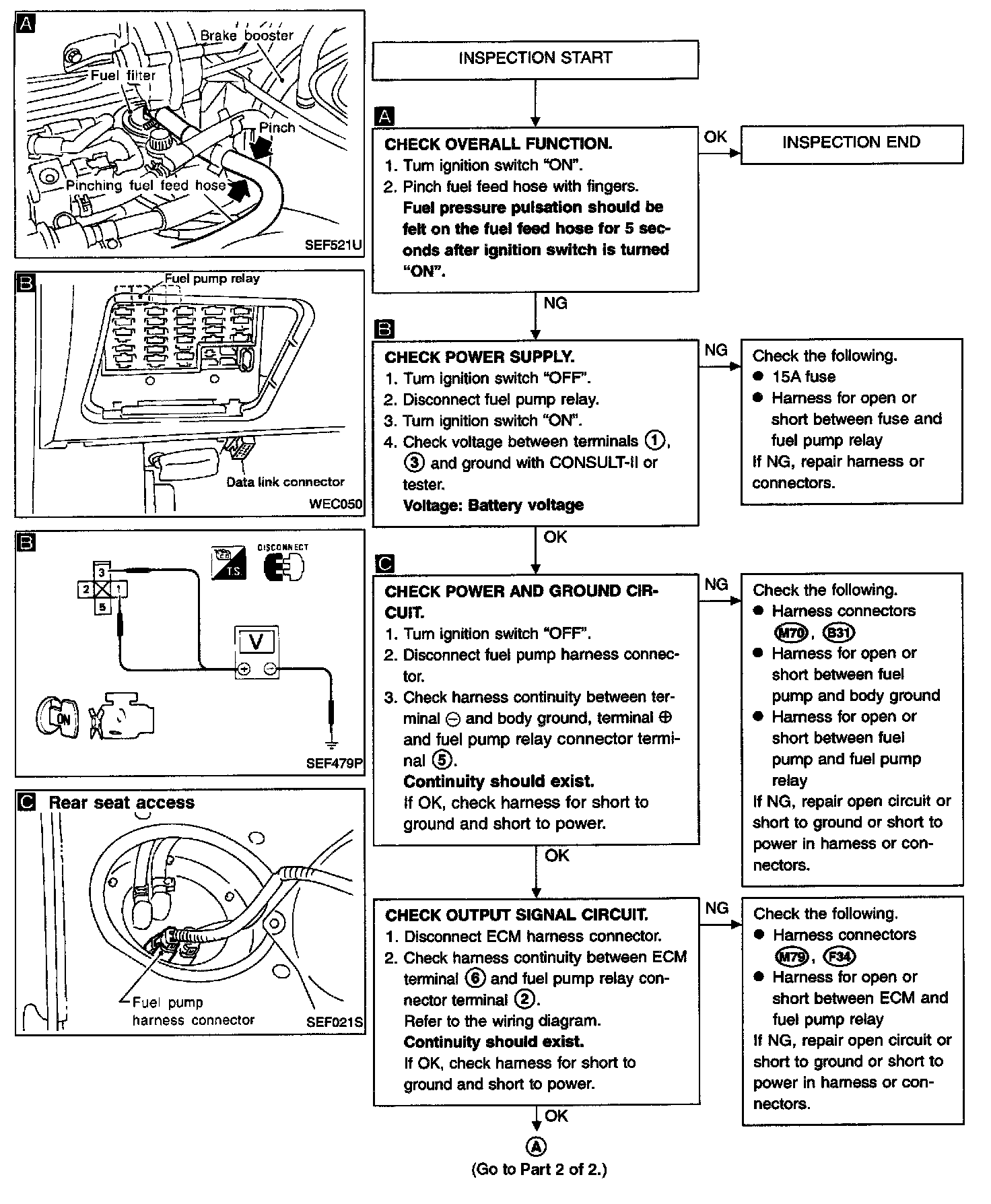

Diagnostic Procedure (Part 1 Of 2):

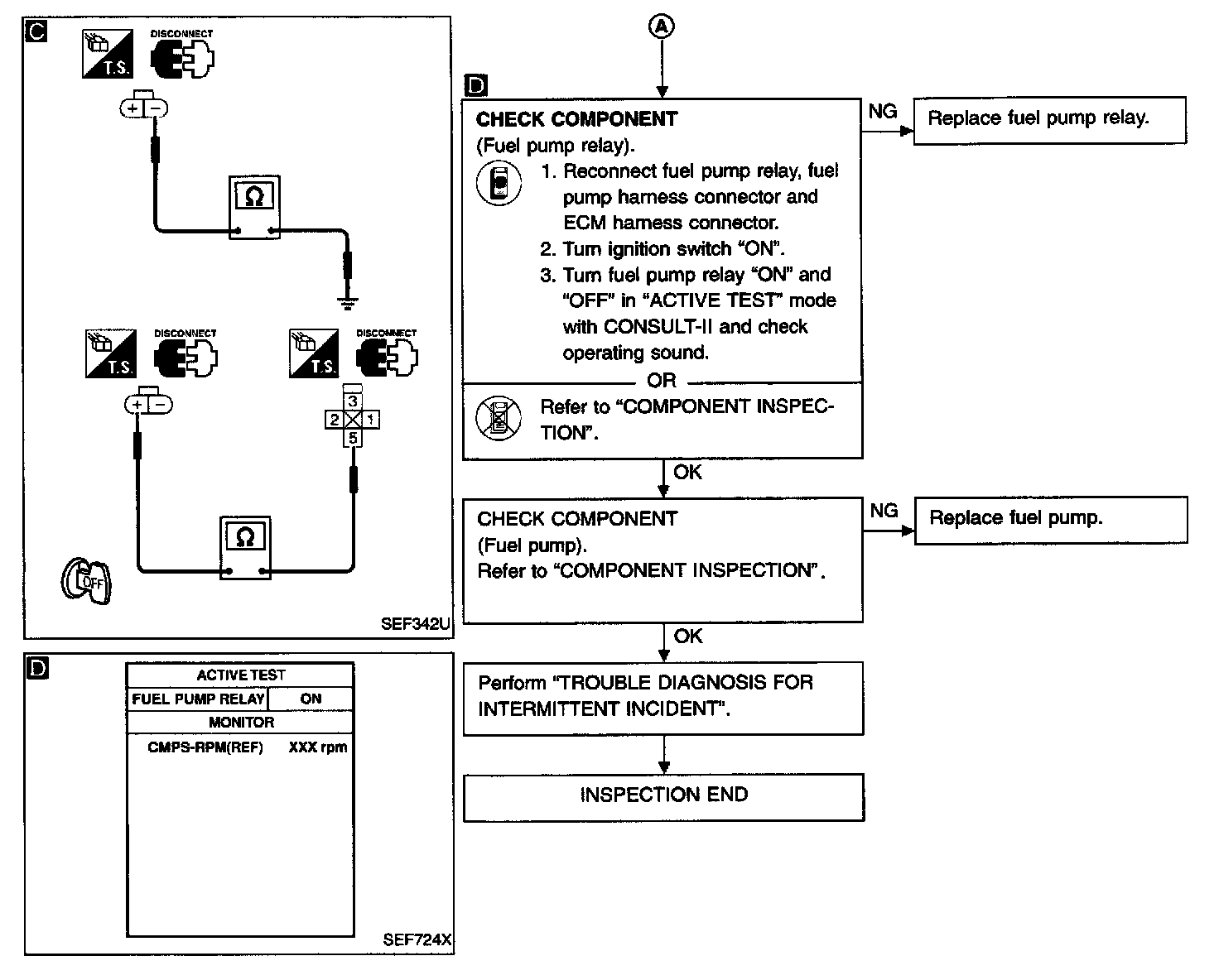

Diagnostic Procedure (Part 2 Of 2):

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

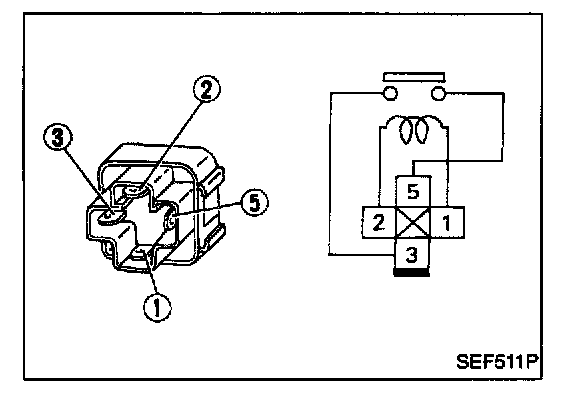

Fuel pump relay

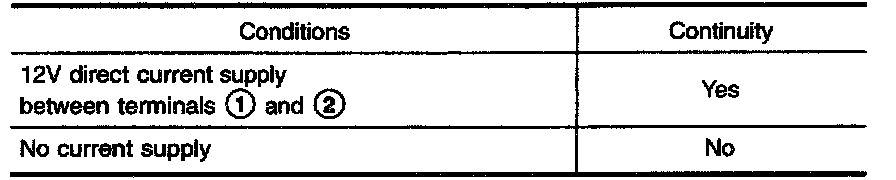

Check continuity between terminals (3) and (5).
If NG, replace relay.

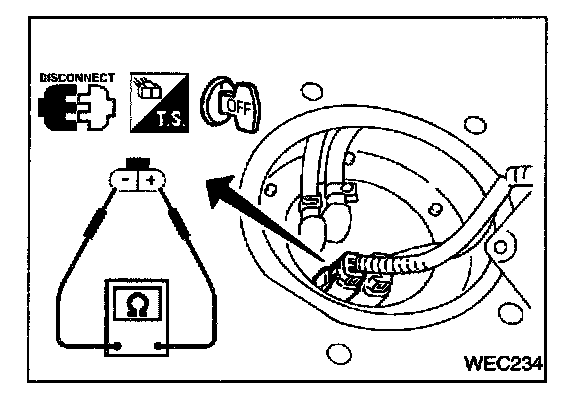

Fuel pump
1. Disconnect fuel pump harness connector.
2. Check resistance between terminals (+) and (-).
Resistance: 0.2 - 5.0 ohms [at 25°C (77°F)]
If NG, replace fuel pump.
