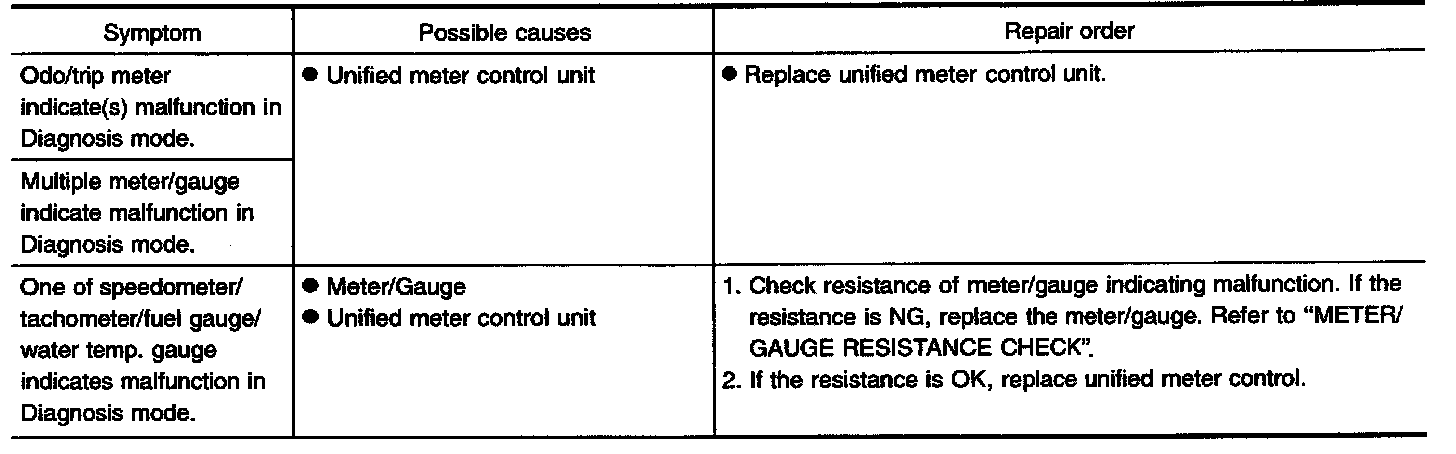

Symptom Chart 1 (Malfunction Is Indicated In Diagnosis Mode)
Symptom Chart 1 (Malfunction Is Indicated In Diagnosis Mode)
Symptom Chart 1 (Malfunction is Indicated in Diagnosis Mode)
