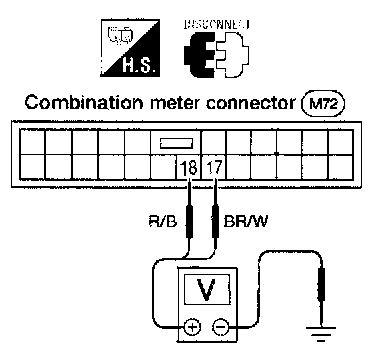

Power Supply Circuit Check

Power Supply Circuit Check








If NG, check the following.
- 10 A fuse [No. (12), located in fuse block (J/B)]
- 10 A fuse [No. (24), located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter
