Fuel Level Sensor Unit Check
Fuel Level Sensor Unit Check
Fuel Level Sensor Unit
Check

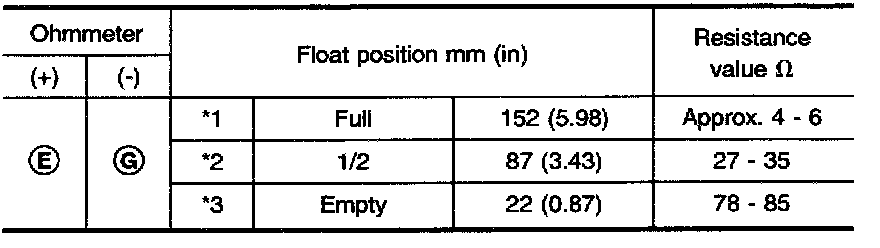

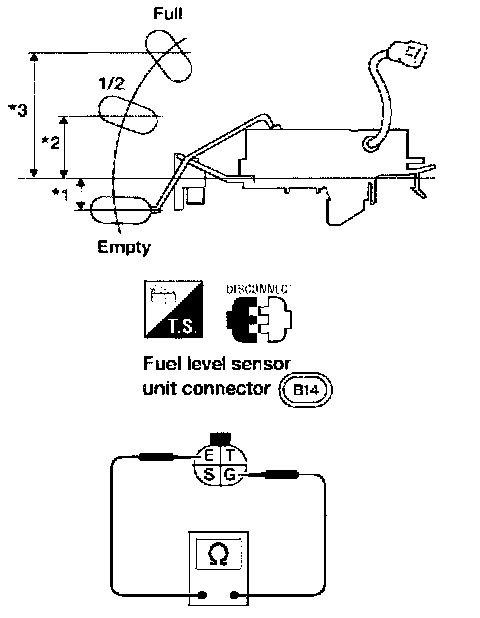

Check the resistance between terminals (E) and (G).
