Models With Premium Audio System
Models With Premium Audio System

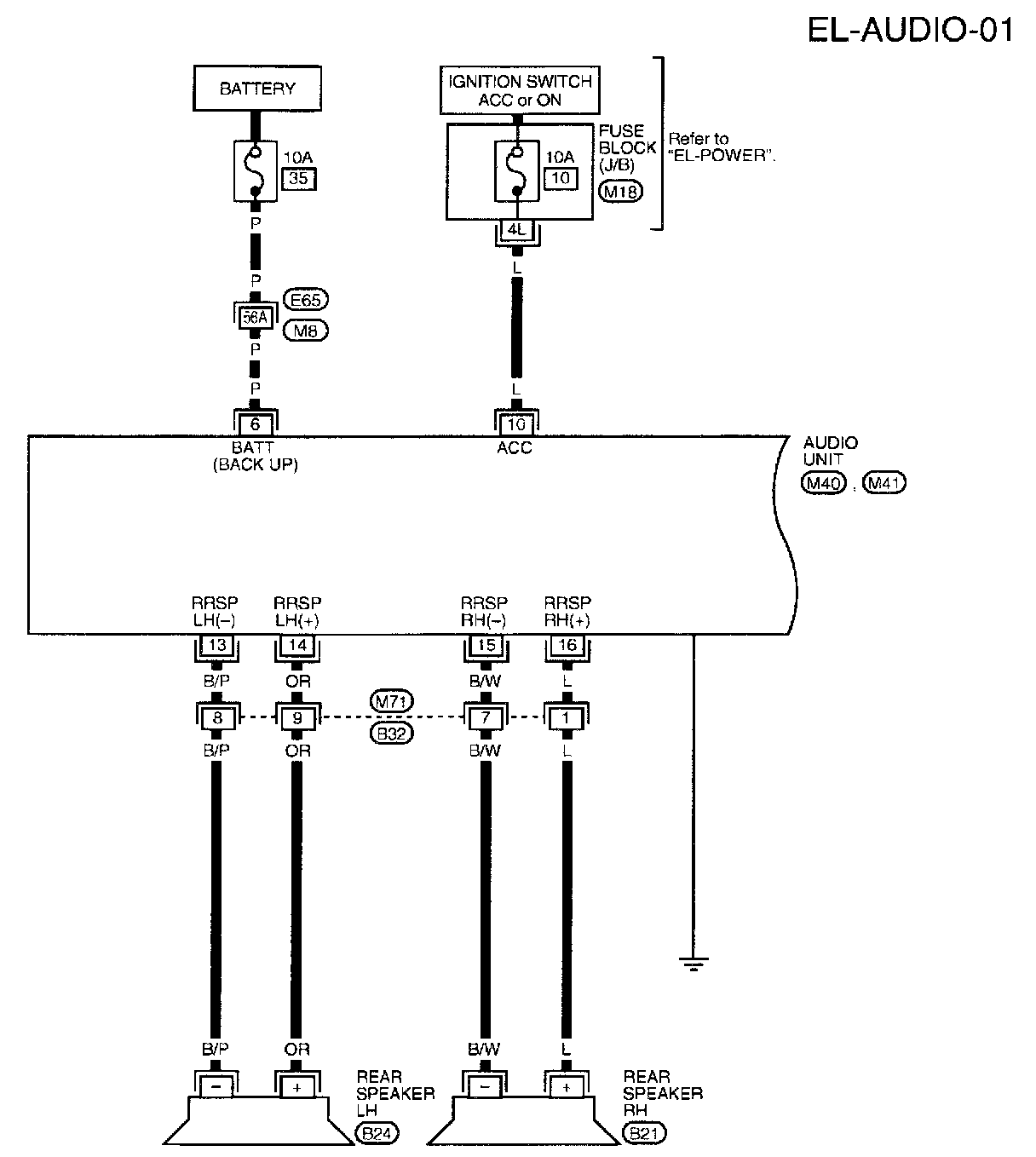

EL-AUDIO-01:

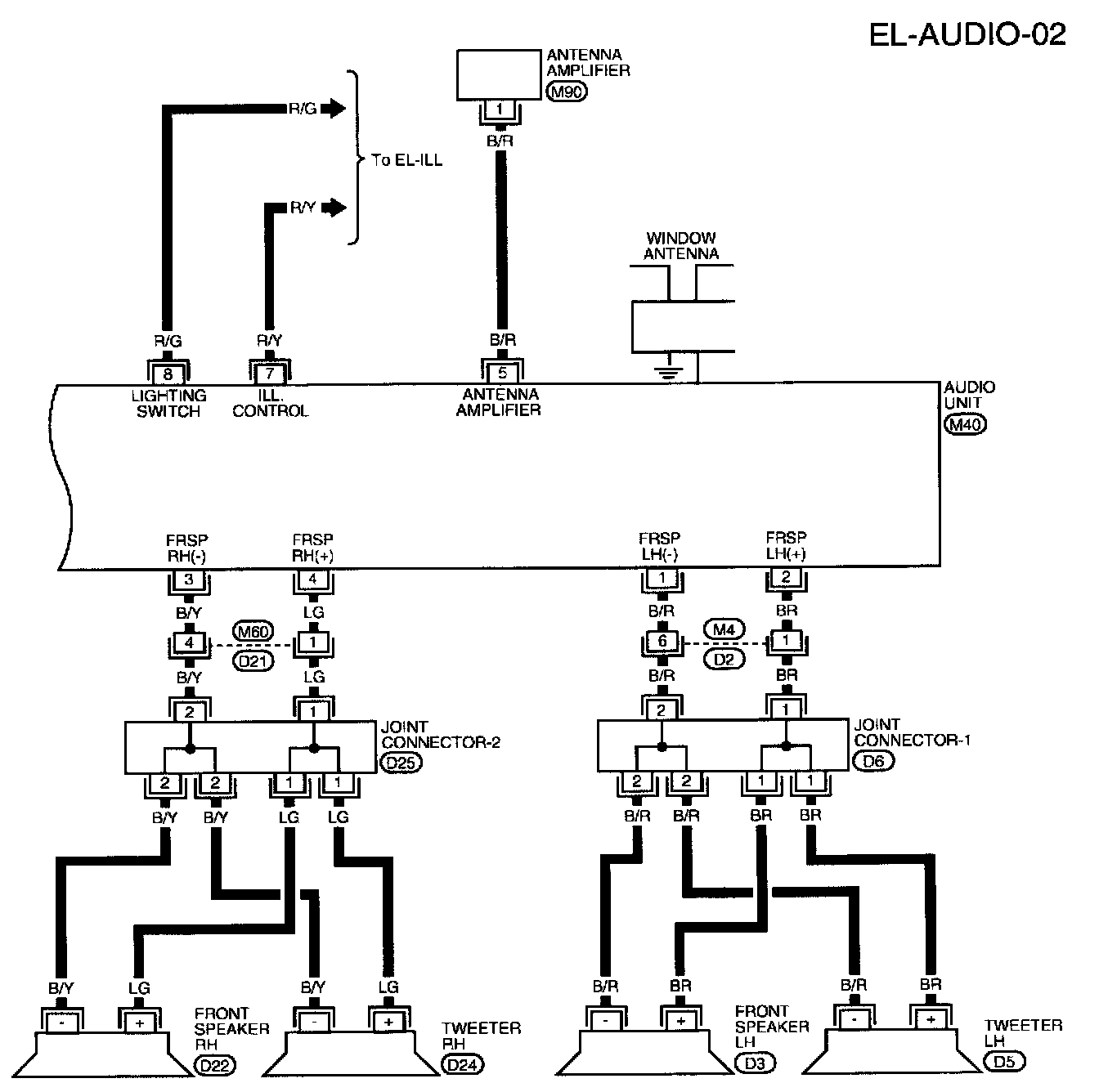

EL-AUDIO-02:
Circuit Diagram

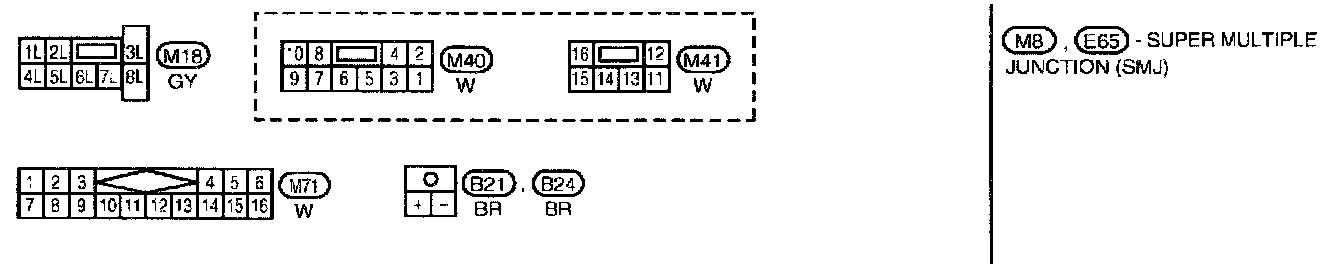

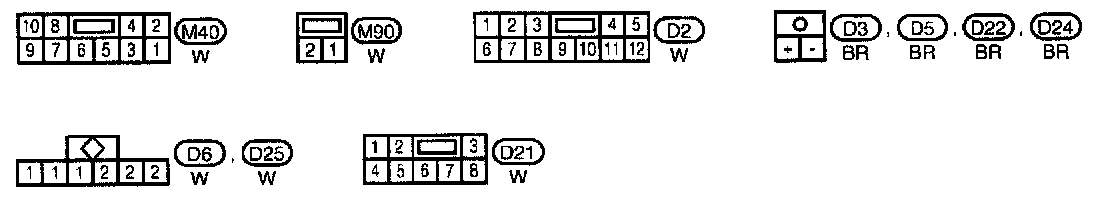

Circuit Connectors
M8, E65:
M8, E65 Super Multiple Junction Terminal Arrangement
