Home
>>
Nissan-Datsun
>>
2000
>>
Altima GXE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Models With Base Audio System
Models With Base Audio System

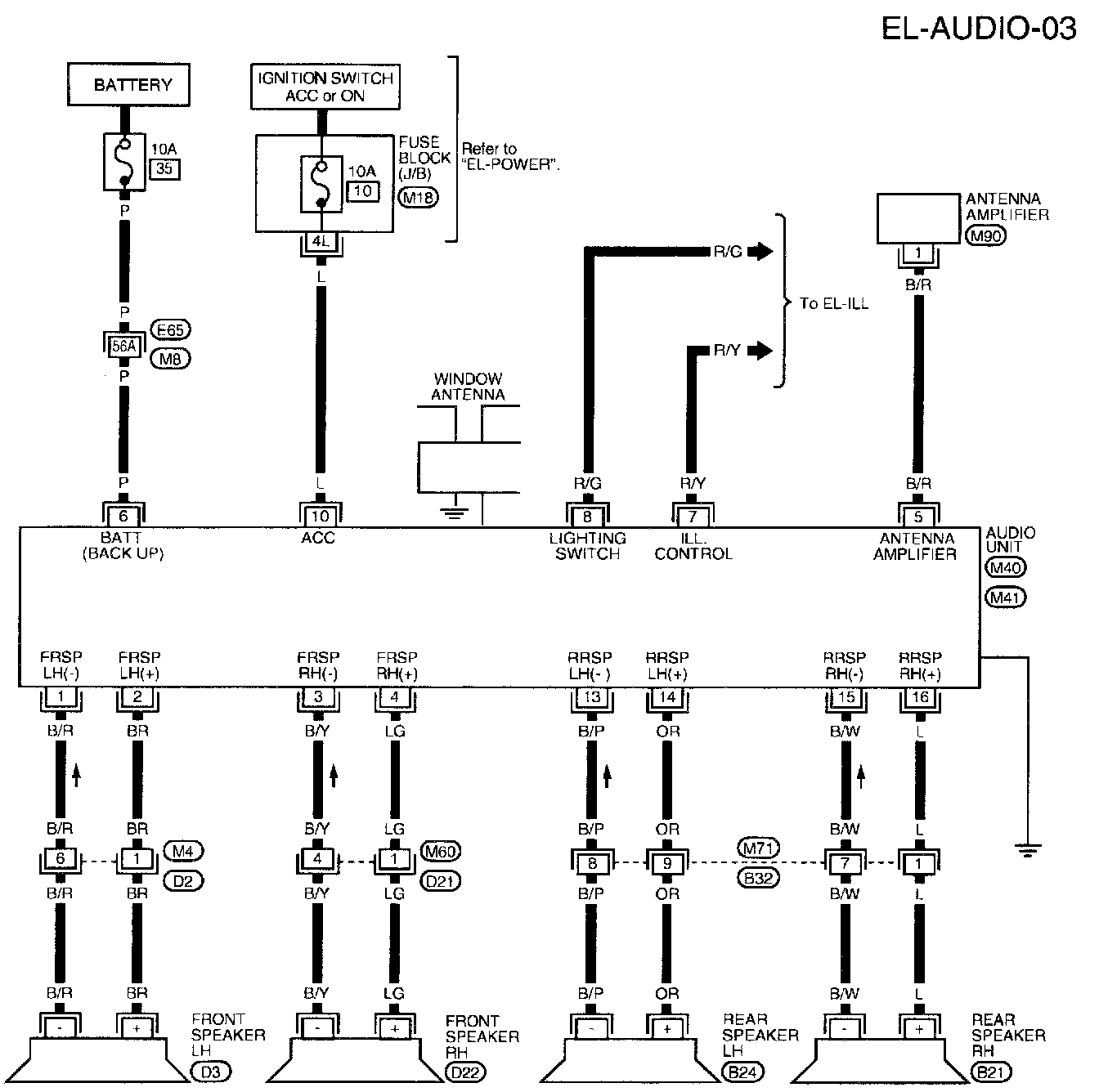

EL-AUDIO-03:
Circuit Diagram

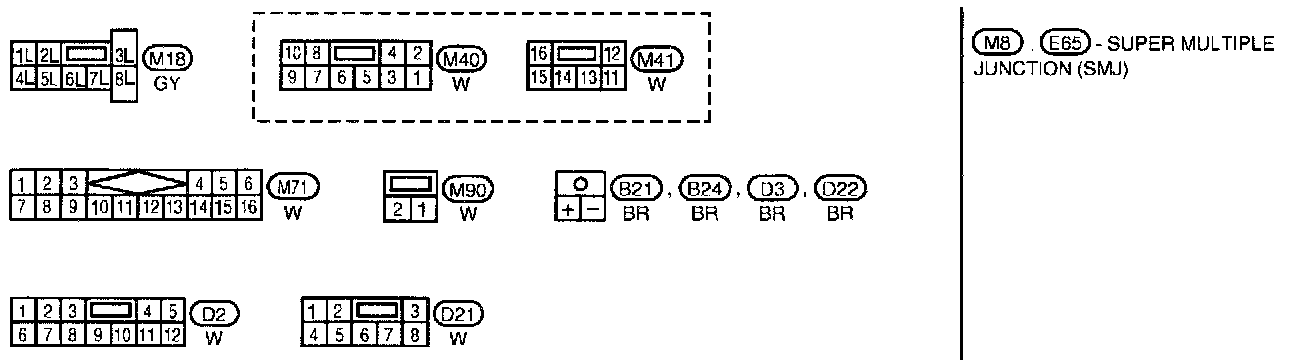

Circuit Connectors
M8, E65:
M8, E65 Super Multiple Junction Terminal Arrangement
