Idle Speed/Throttle Actuator - Electronic

EC-AAC/V-01:




EC-AAC/V-01 - Connector View:




IACV-AAC valve

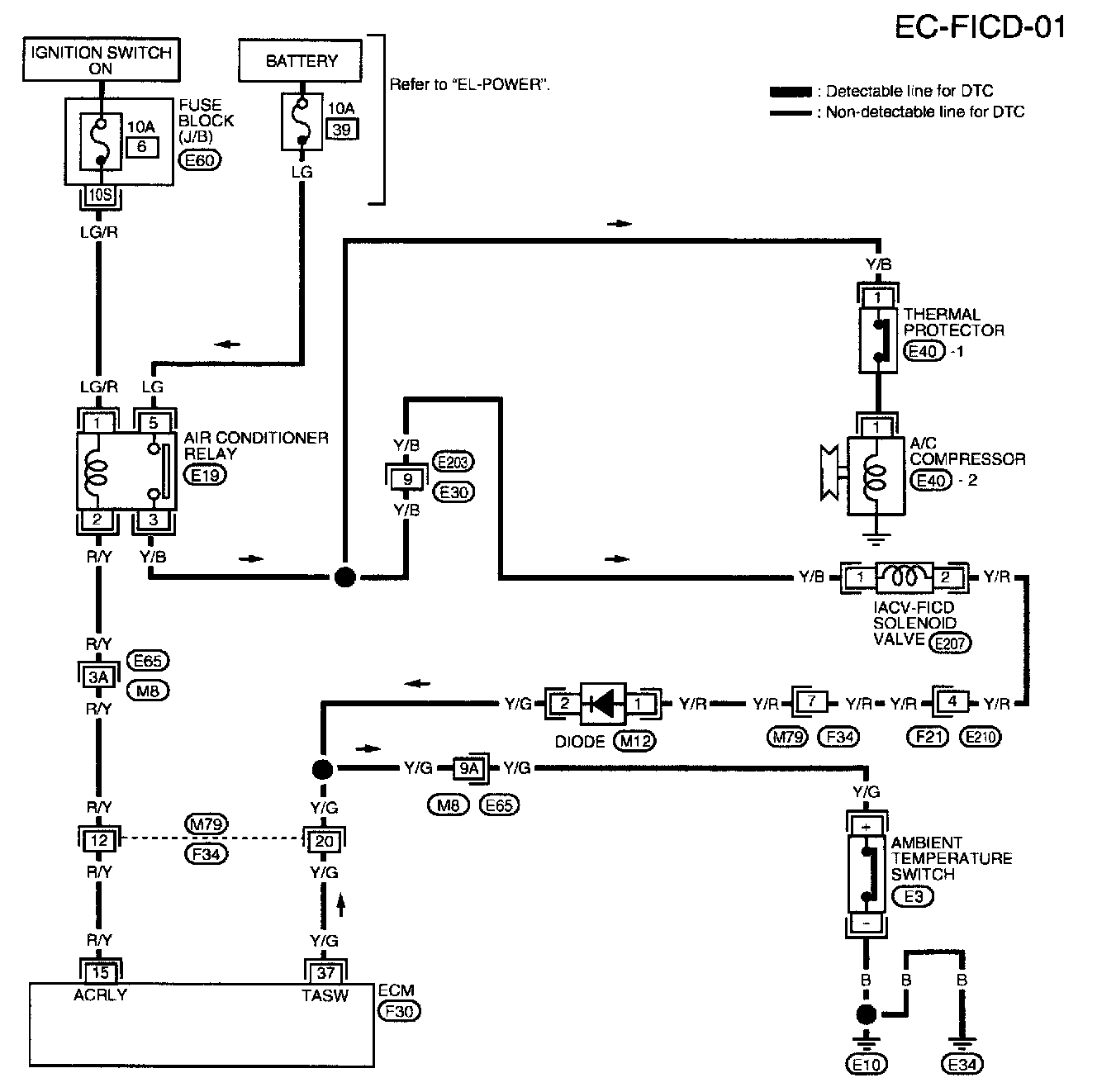

EC-FICD-01:




EC-FICD-01 - Connector View:




IACV-FICD solenoid valve

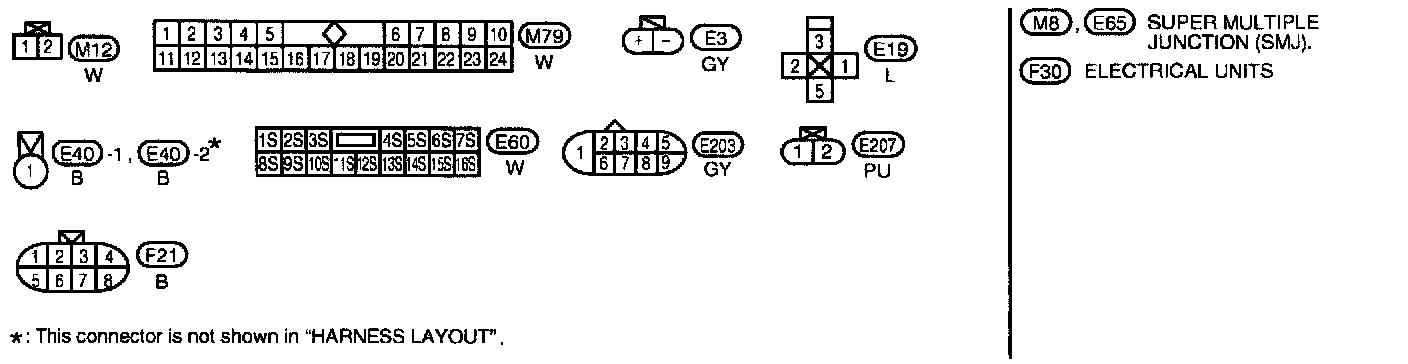

M8, E65:




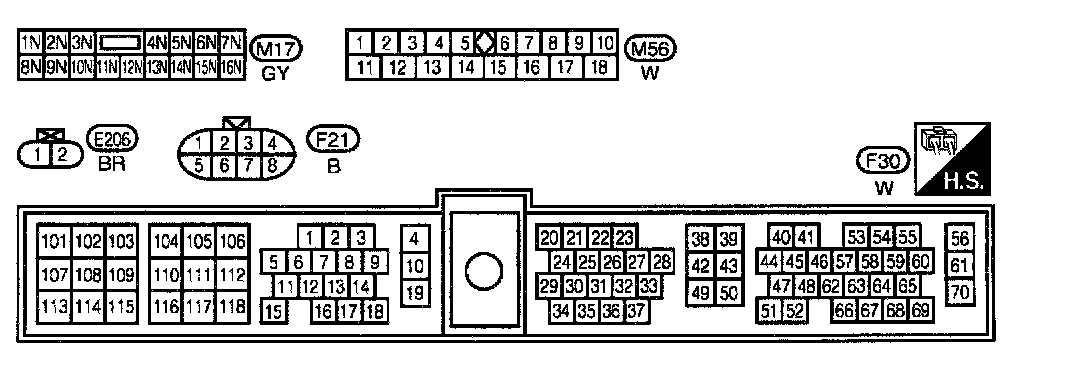

F30, F32, M33:




COMPONENT VIEW
