Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Models Without Power Door Locks
Models Without Power Door Locks
EL-CHIME-02:

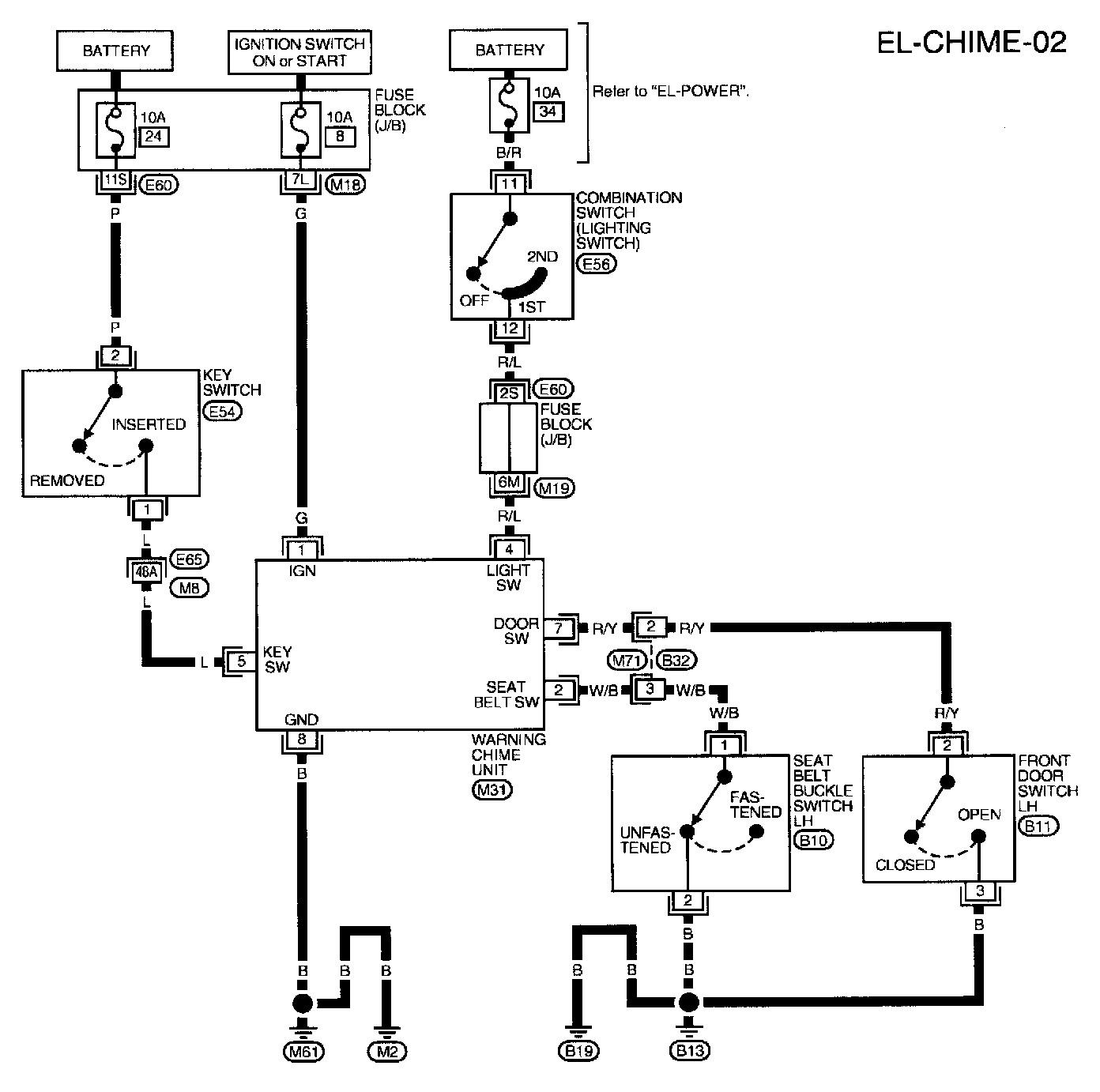

Circuit Diagram

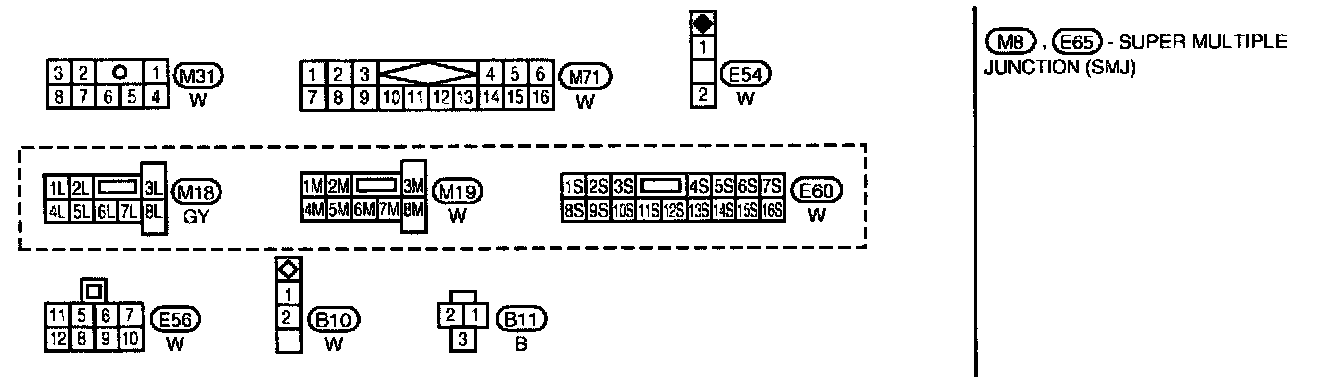

Circuit Connectors
M8, E65:
M8, E65 Super Multiple Junction Terminal Arrangement
