Models With Power Door Locks

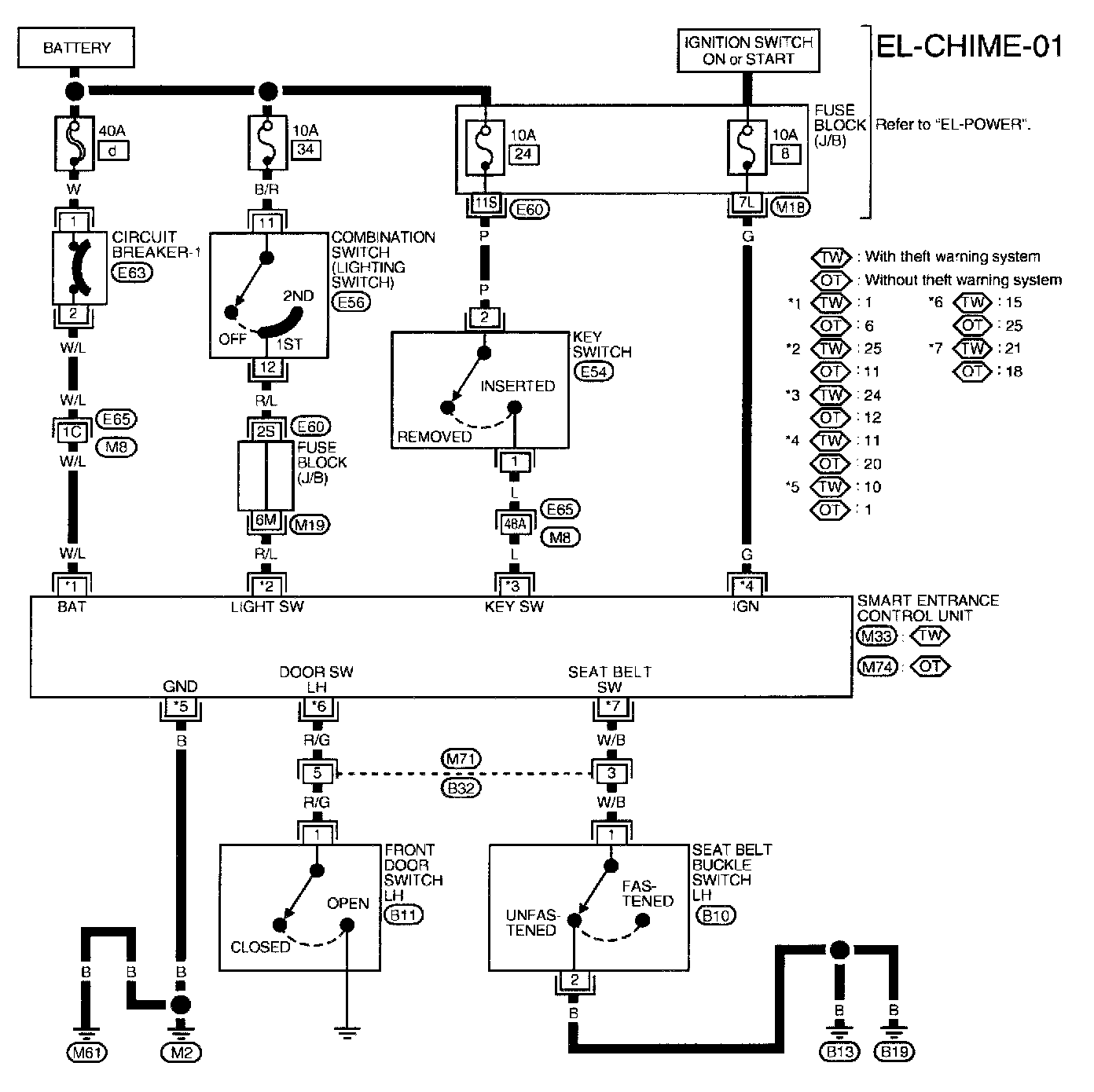

EL-CHIME-01:





Circuit Diagram

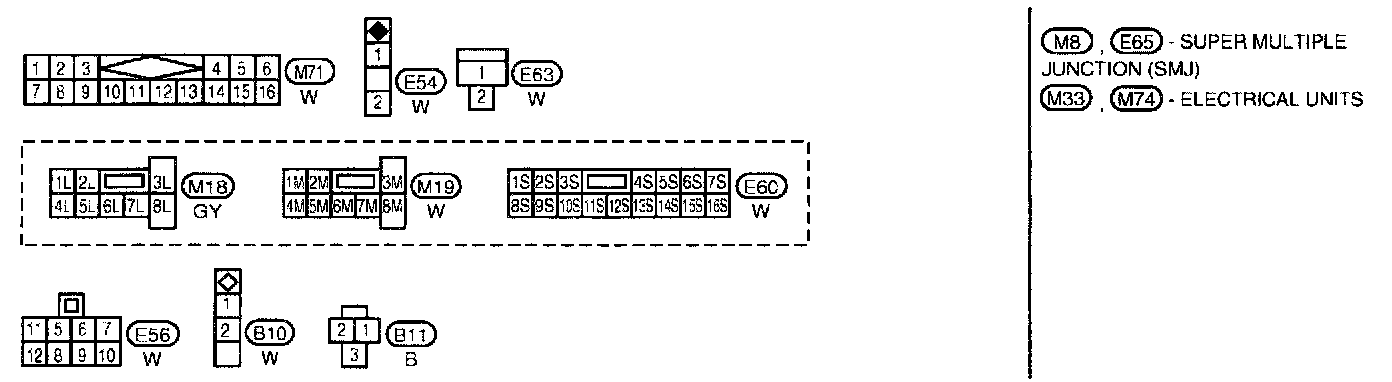

Circuit Connectors

M8, E65:




F30, F32, M33:





M8, M33, M74, E65 Super Multiple Junction, Electrical Units Terminal Arrangement
