Vehicle Security (Theft Warning) System

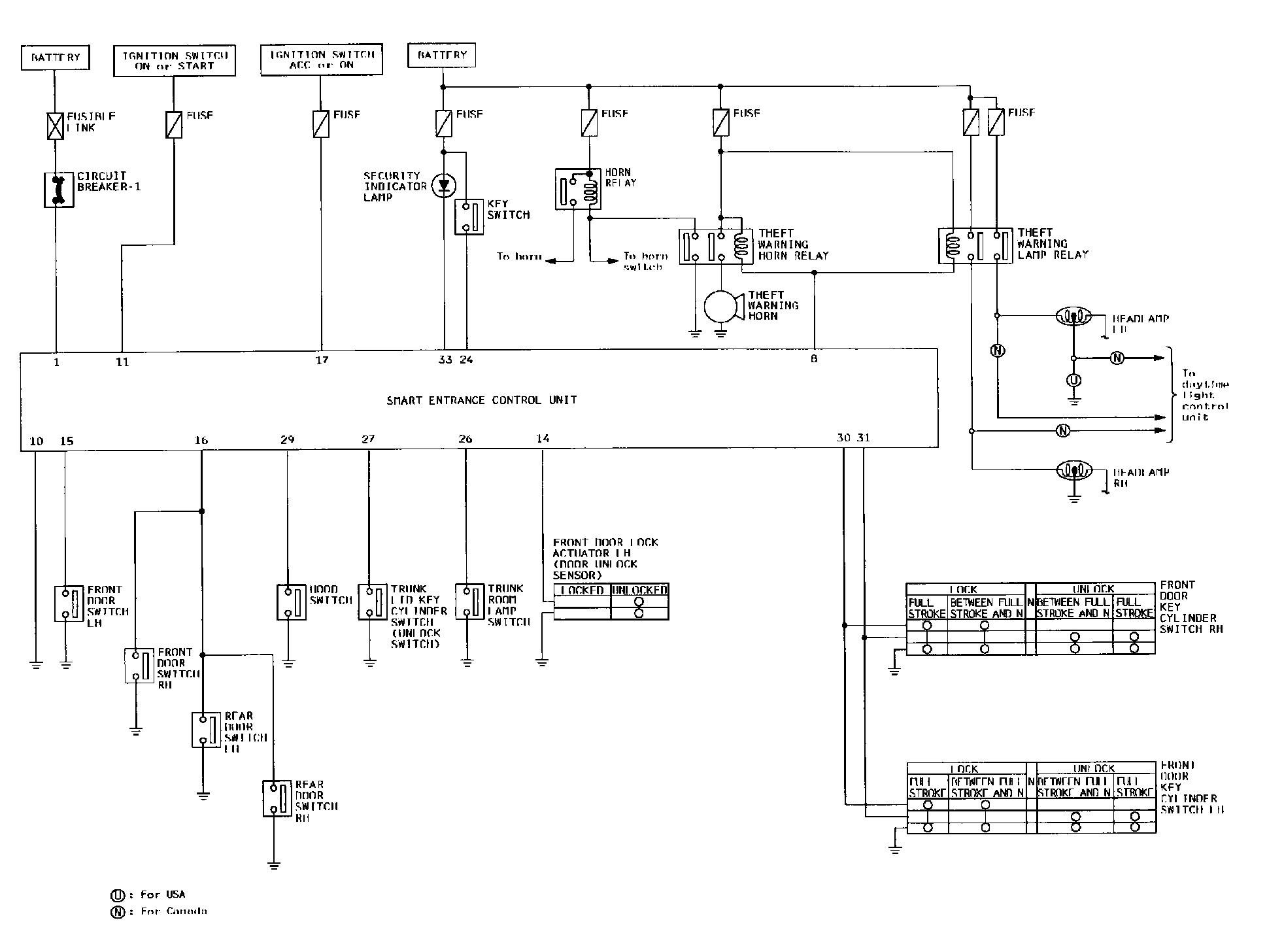

Schematic

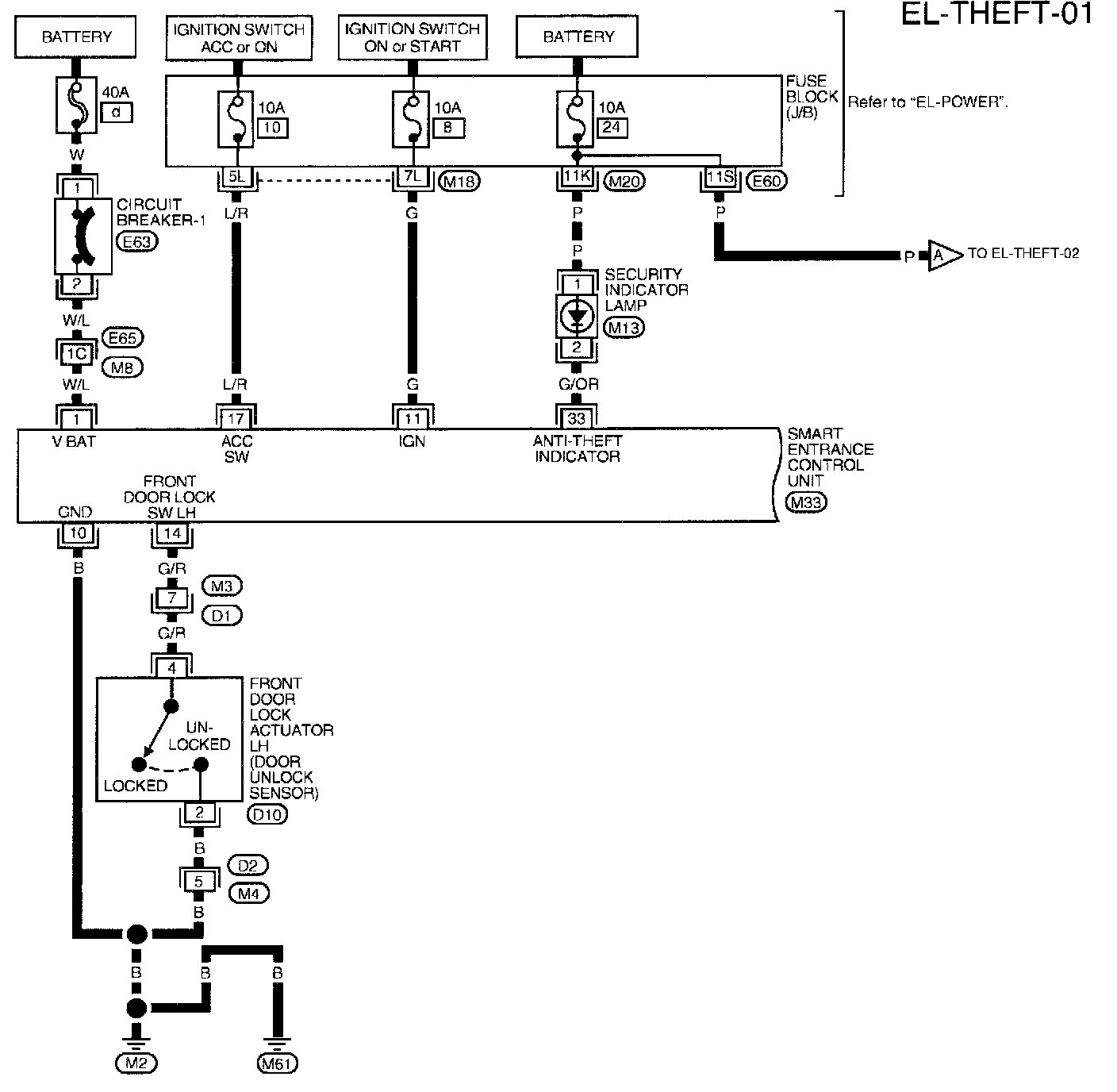

EL-THEFT-01:

(Part 1 of 4)
Fuse Block (J/B)
Secondary Indicator Lamp
Smart Entrance Control Unit
Circuit Breaker-1
Front Door Lock Actuator LH (Door Unlock Sensor)

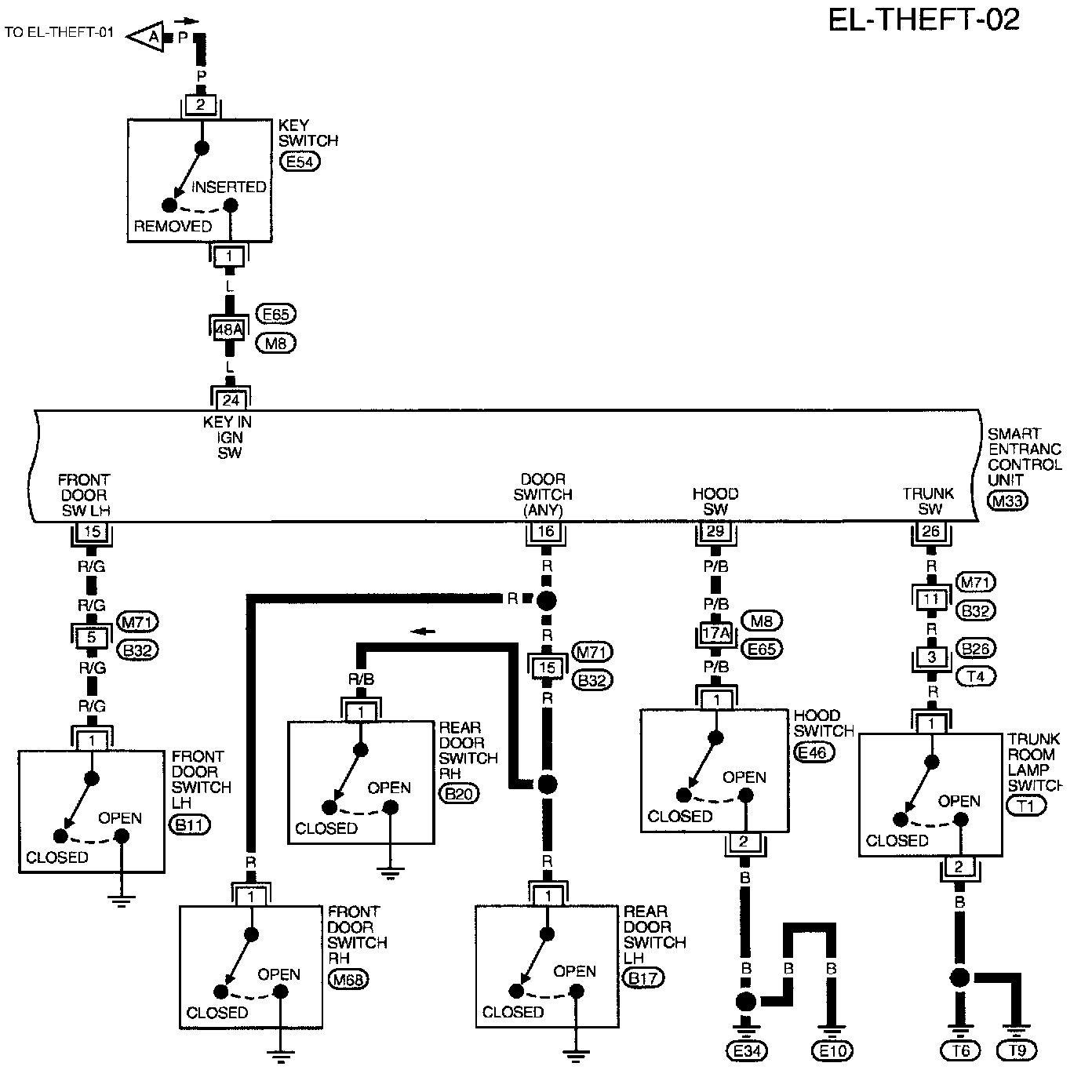

EL-THEFT-02:

(Part 2 of 4)
Key Switch
Smart Entrance Control Unit
Front Door Switch (LH & RH)
Rear Door Switch (LH & RH)
Hood Switch
Trunk Room Lamp Switch

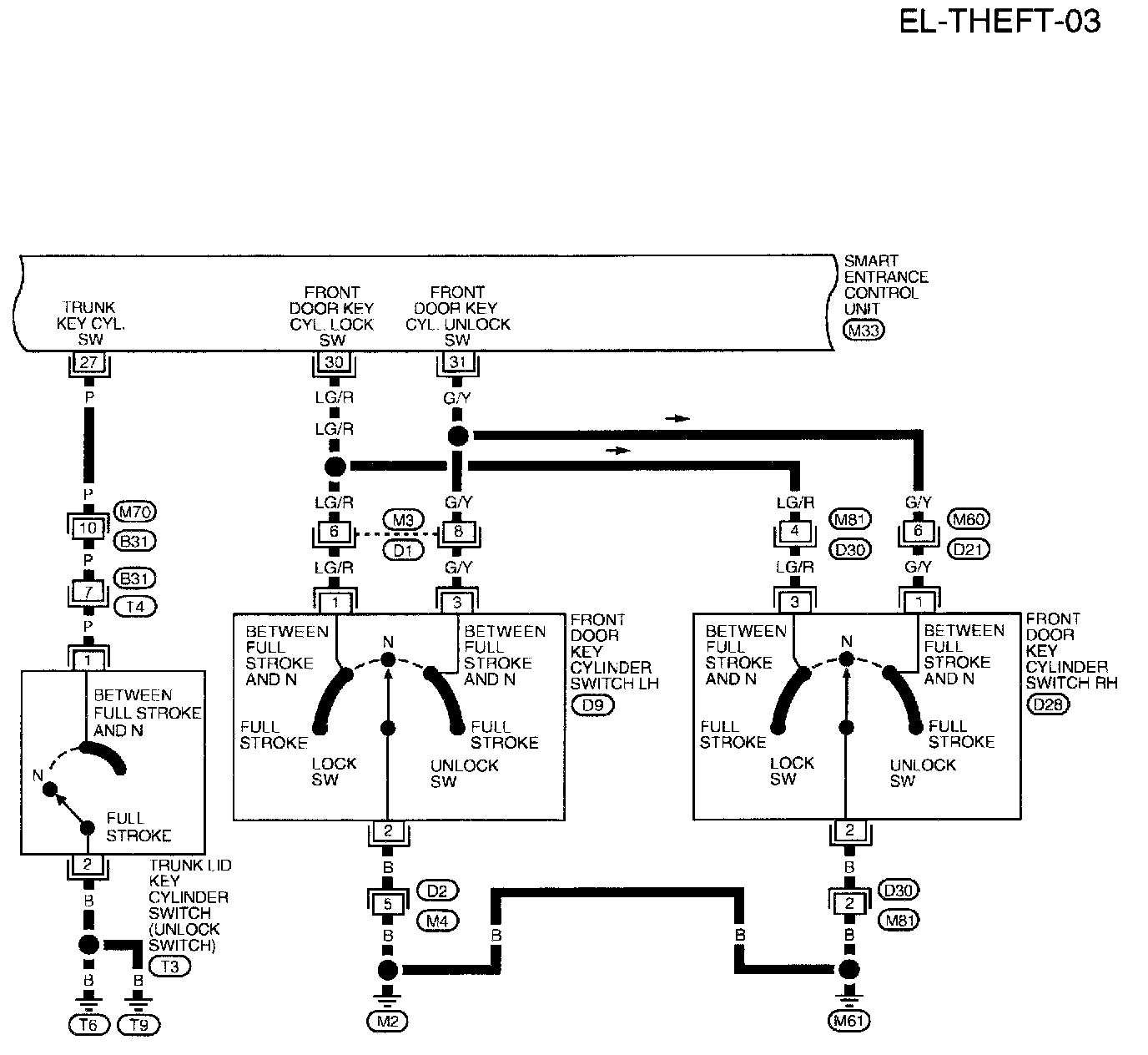

EL-THEFT-03:

(Part 3 of 4)
Smart Entrance Control Unit
Front Door Key Cylinder Switch (LH & RH)
Trunk Lid Key Cylinder Switch (Unlock Switch)

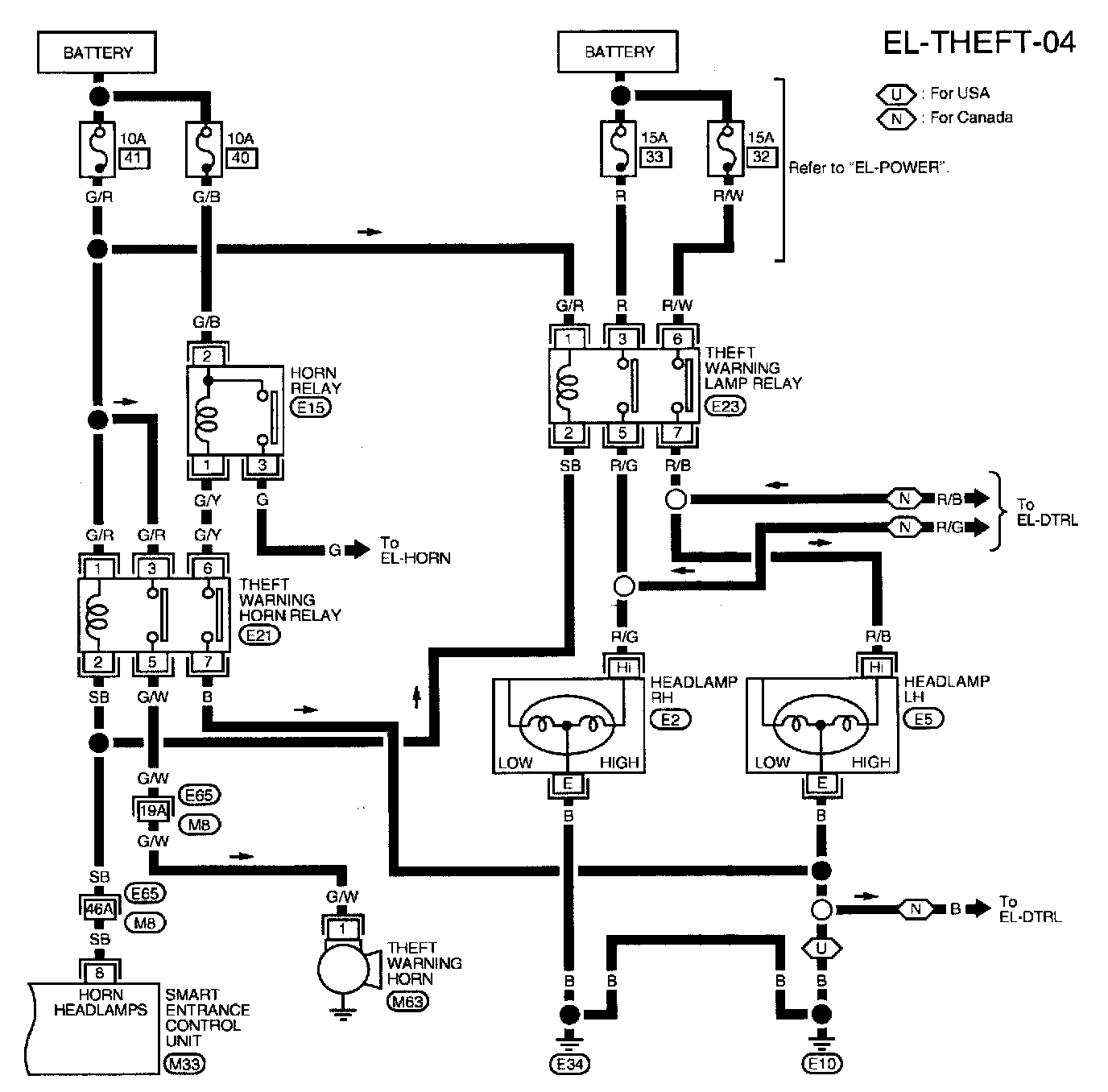

EL-THEFT-04:

(Part 4 of 4)
Horn Relay
Theft Warning Horn Relay
Smart Entrance Control Unit
Theft Warning Horn
Headlamp (LH & RH)
Theft Warning Lamp Relay

Circuit Diagrams

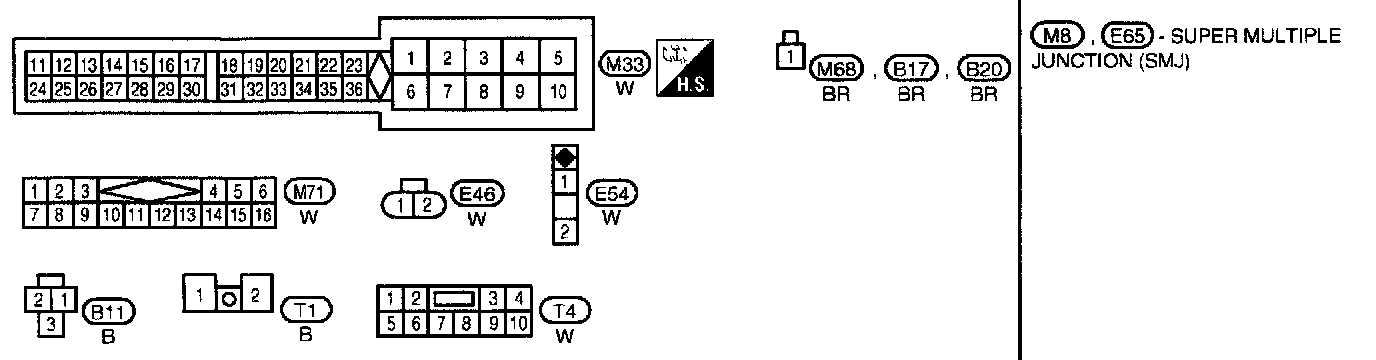

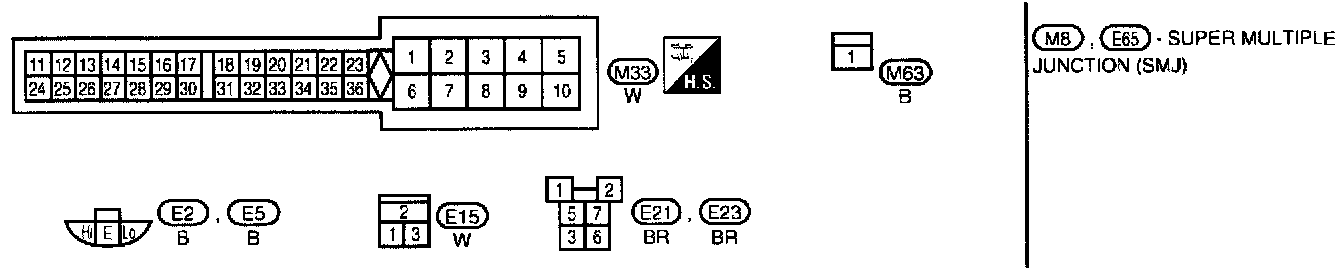

Circuit Connectors

M8, E65:

F30, F32, M33:

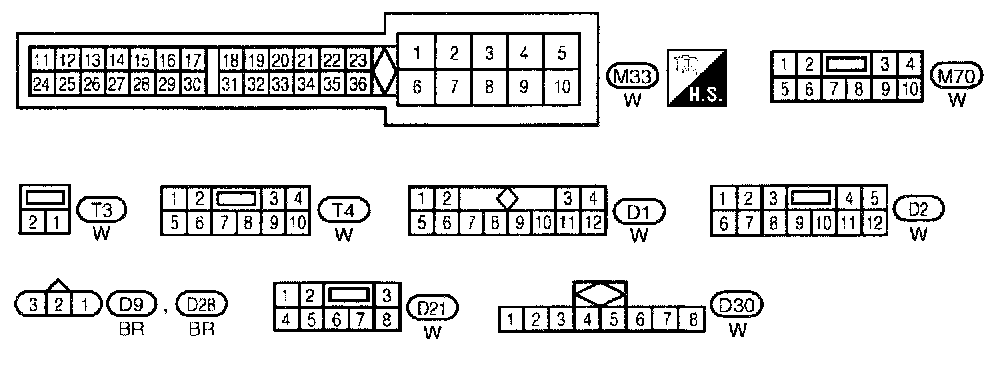

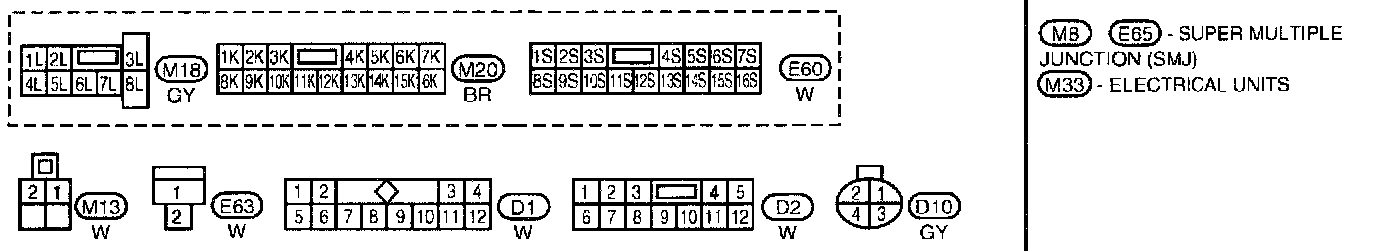

M8, E65, M33, Super Multiple Junction, Electrical Units Terminal Arrangement
