Home
>>
Nissan-Datsun
>>
2000
>>
Altima GXE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse and Fusible Link Box
Fuse and Fusible Link Box

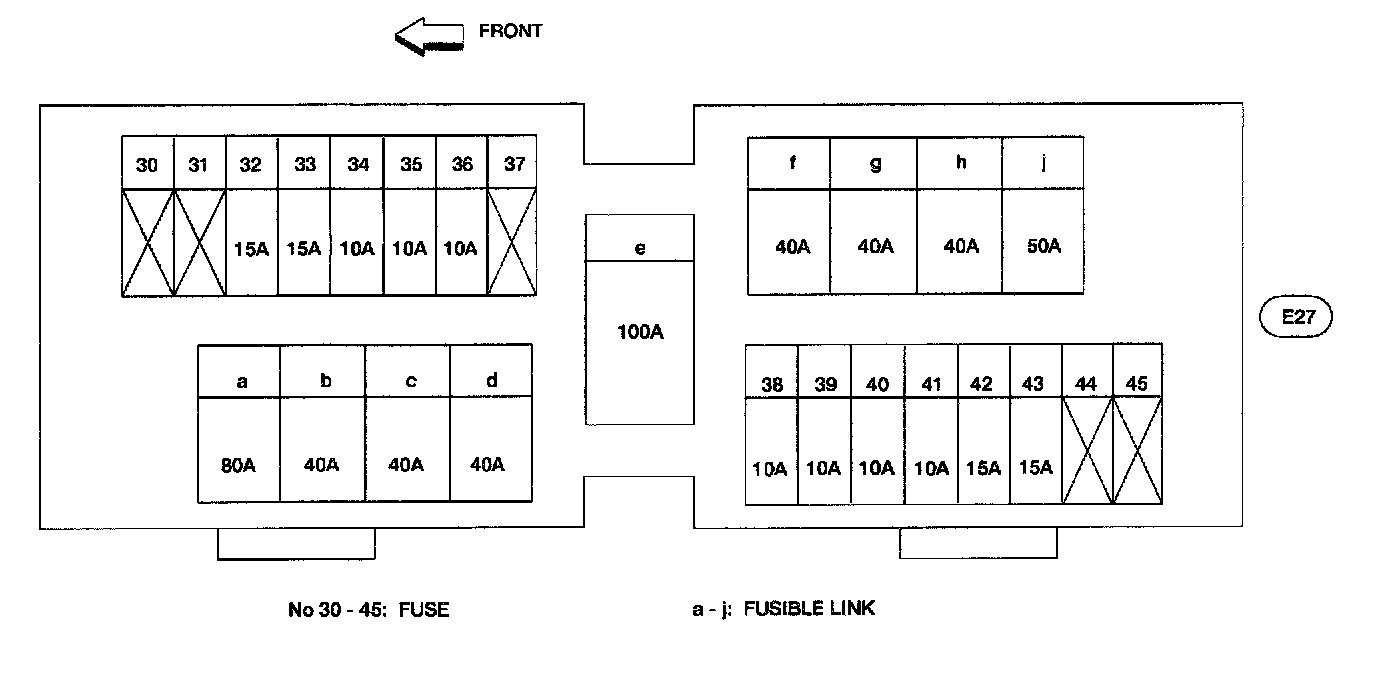

E27, Fuse and
Fusible Link
Box Terminal Arrangement
