Home >> Nissan-Datsun >> 2000 >> Altima GXE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Trouble Diagnosis >> Diagnostic Procedure 6 - ASCD Actuator/Pump Check

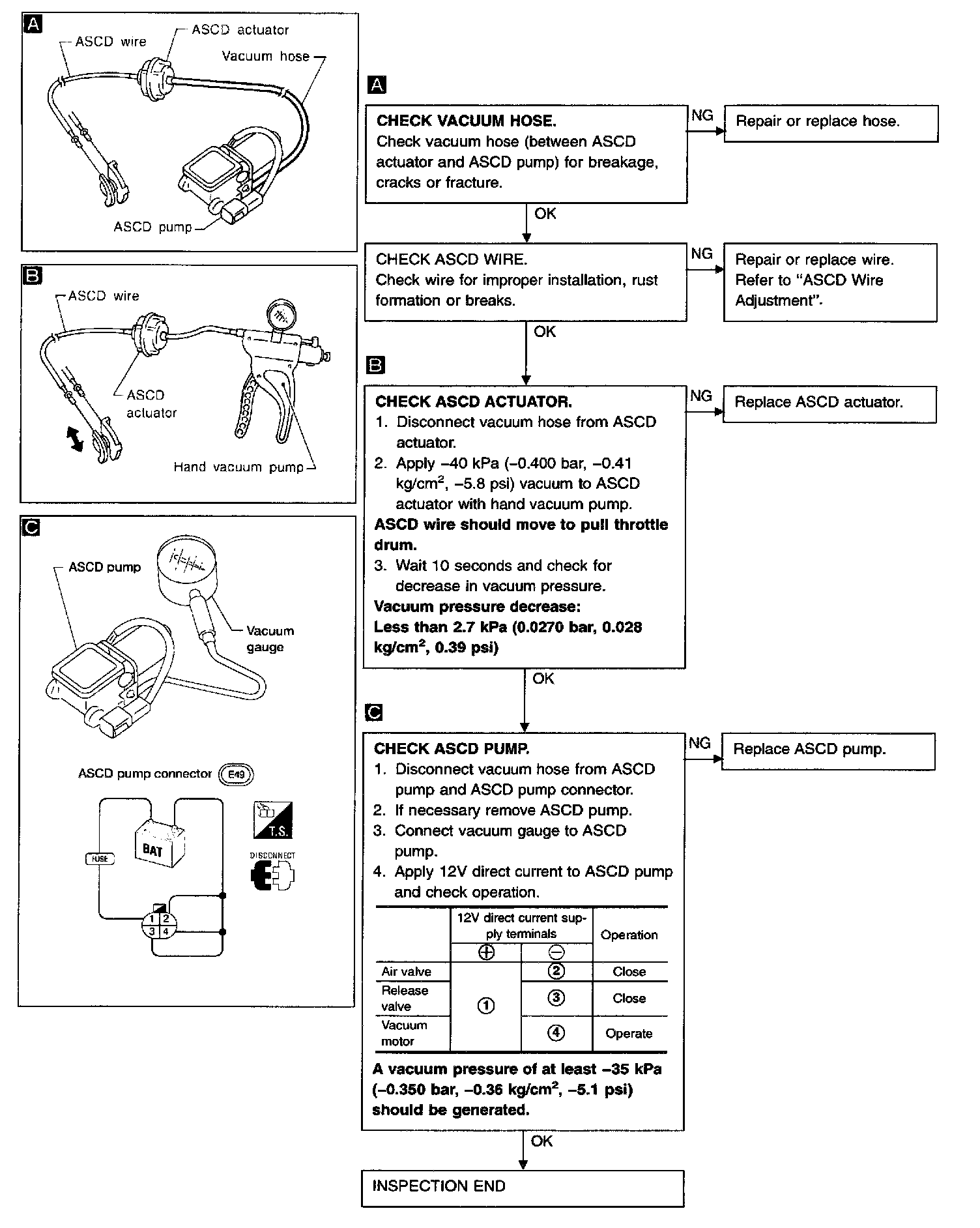

Diagnostic Procedure 6 - ASCD Actuator/Pump Check

(ASCD ACTUATOR/PUMP CHECK):
