Home >> Nissan-Datsun >> 2000 >> Altima GXE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> ASCD Component Inspections >> ASCD Clutch Switch (M/T)

ASCD Clutch Switch (M/T)


ASCD CLUTCH SWITCH (For M/T Models):

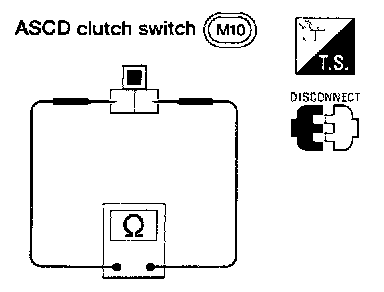

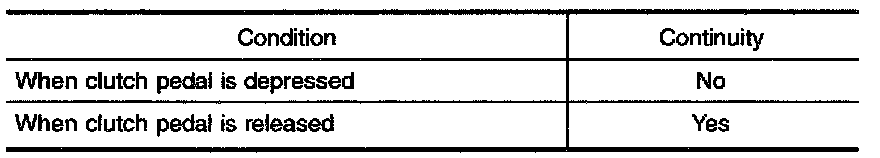

ASCD CLUTCH SWITCH (For M/T Models) TEST PROCEDURE.:





ASCD CLUTCH SWITCH (For M/T models)
