ASCD Circuit Inspections

ASCD BRAKE SWITCH AND STOP LAMP SWITCH:

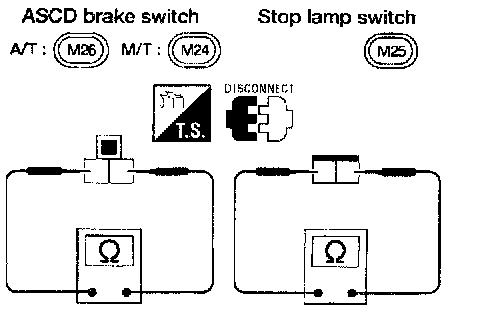

ASCD BRAKE SWITCH AND STOP LAMP SWITCH TEST PROCEDURE.:

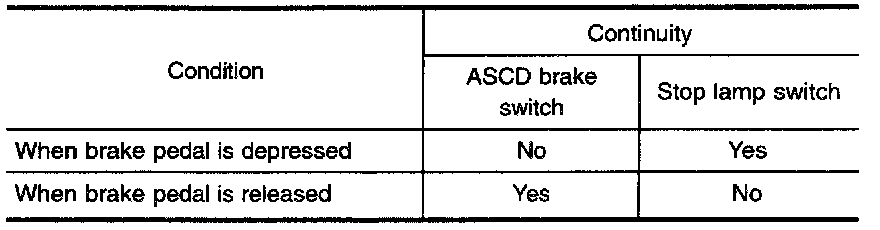

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.
