Without Scan Tool

FUNCTION
- When a problem occurs in the ABS, the warning lamp on the instrument panel comes on. To start the self-diagnostic results mode, ground the self-diagnostic (check) terminal located on the "Data Link Connector. The location of the malfunction is indicated by the warning lamp flashing on the instrument panel.

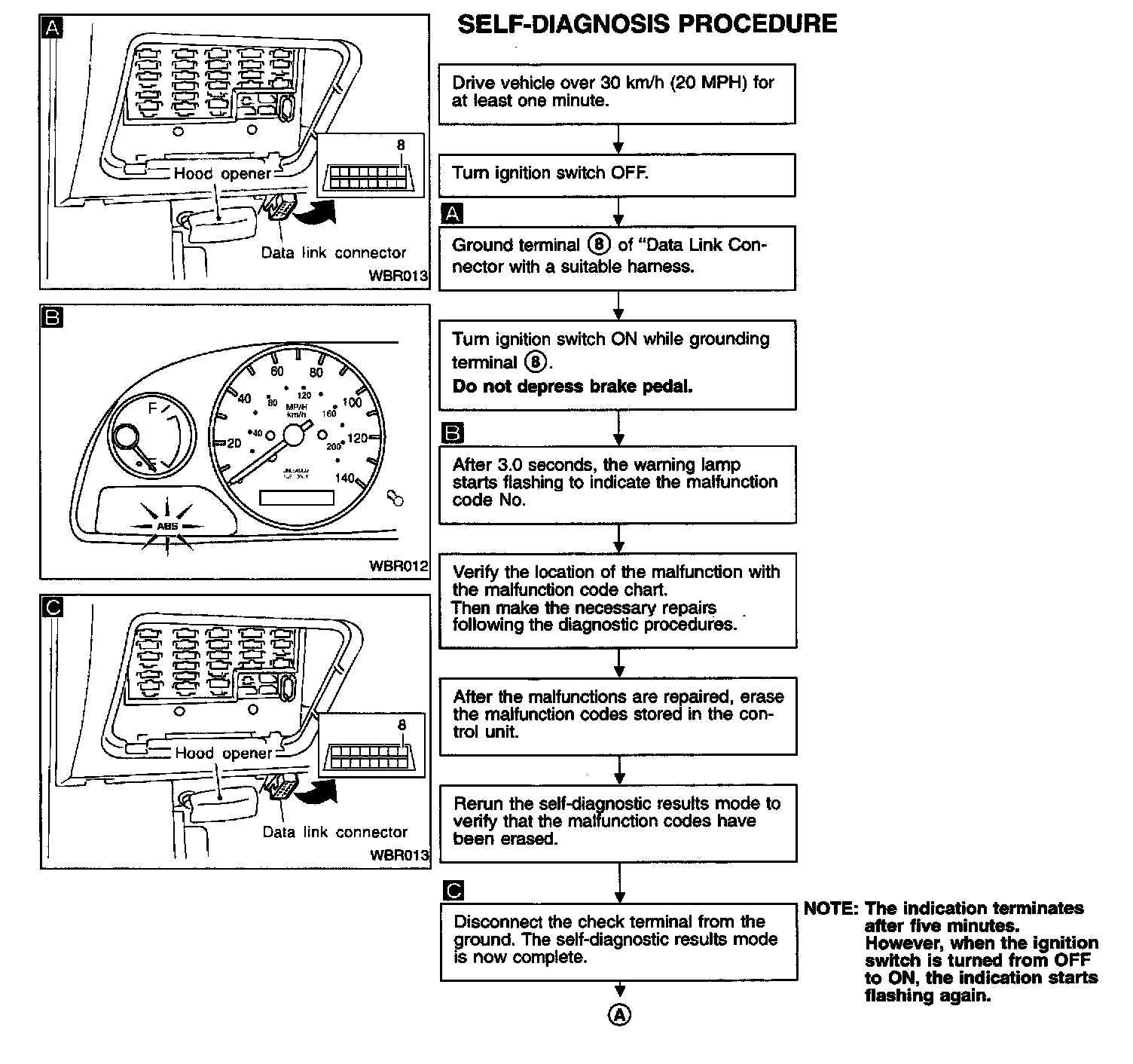

SELF-DIAGNOSIS PROCEDURE

HOW TO READ SELF-DIAGNOSTIC RESULTS (Malfunction codes)

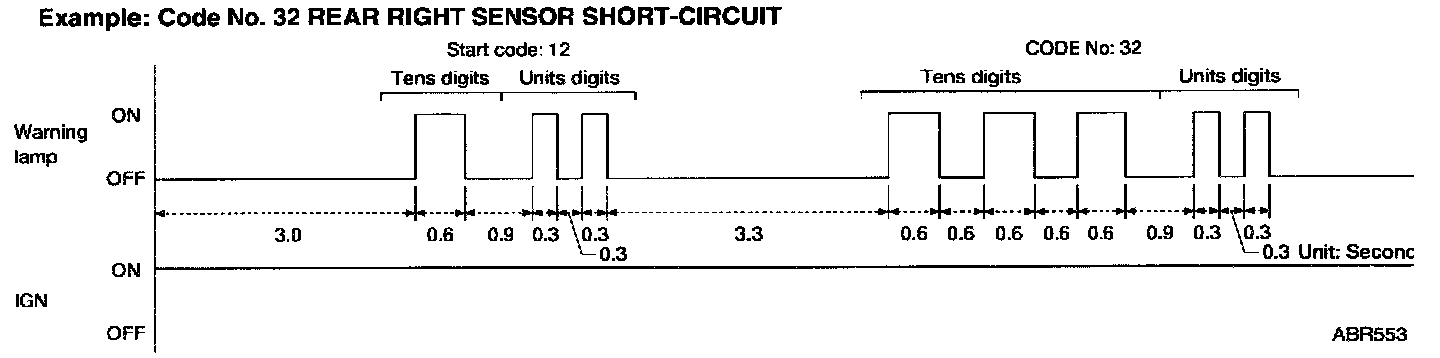

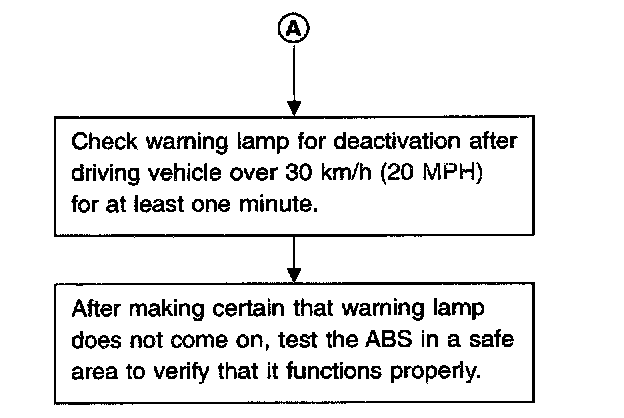

- Determine the code No. by counting the number of times the warning lamp flashes on and off. When several malfunctions occur at one time, up to three code numbers can be stored; the latest malfunction will be indicated first.
- The indication begins with the start code 12. After that a maximum of three code numbers are shown, with the latest one appearing first. The indication then returns to the start code 12 to repeat (the indication will stay on for a maximum of five minutes).
