With Manufacturer's Scan Tool

CONSULT - II

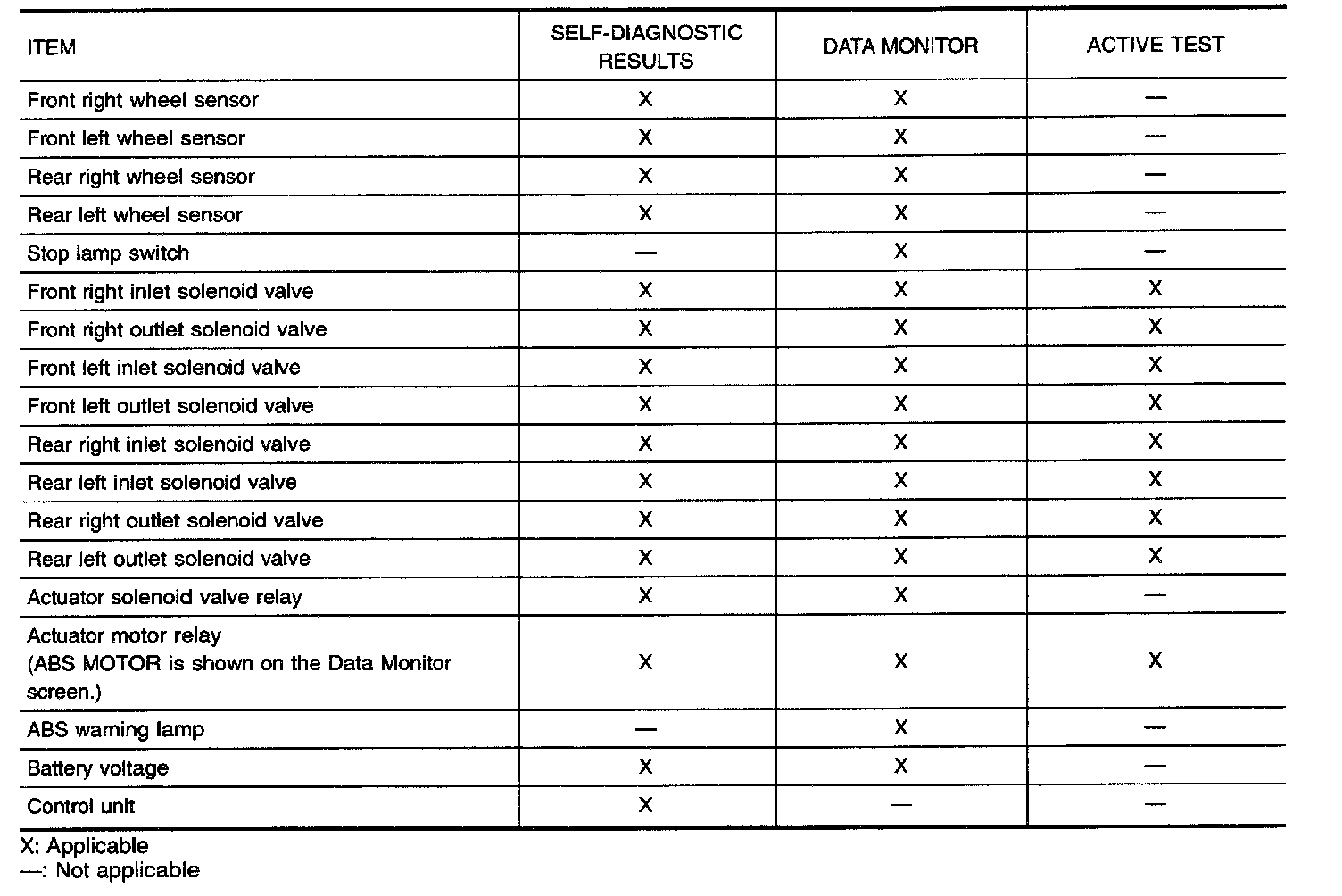

CONSULT - II APPLICATION TO ABS

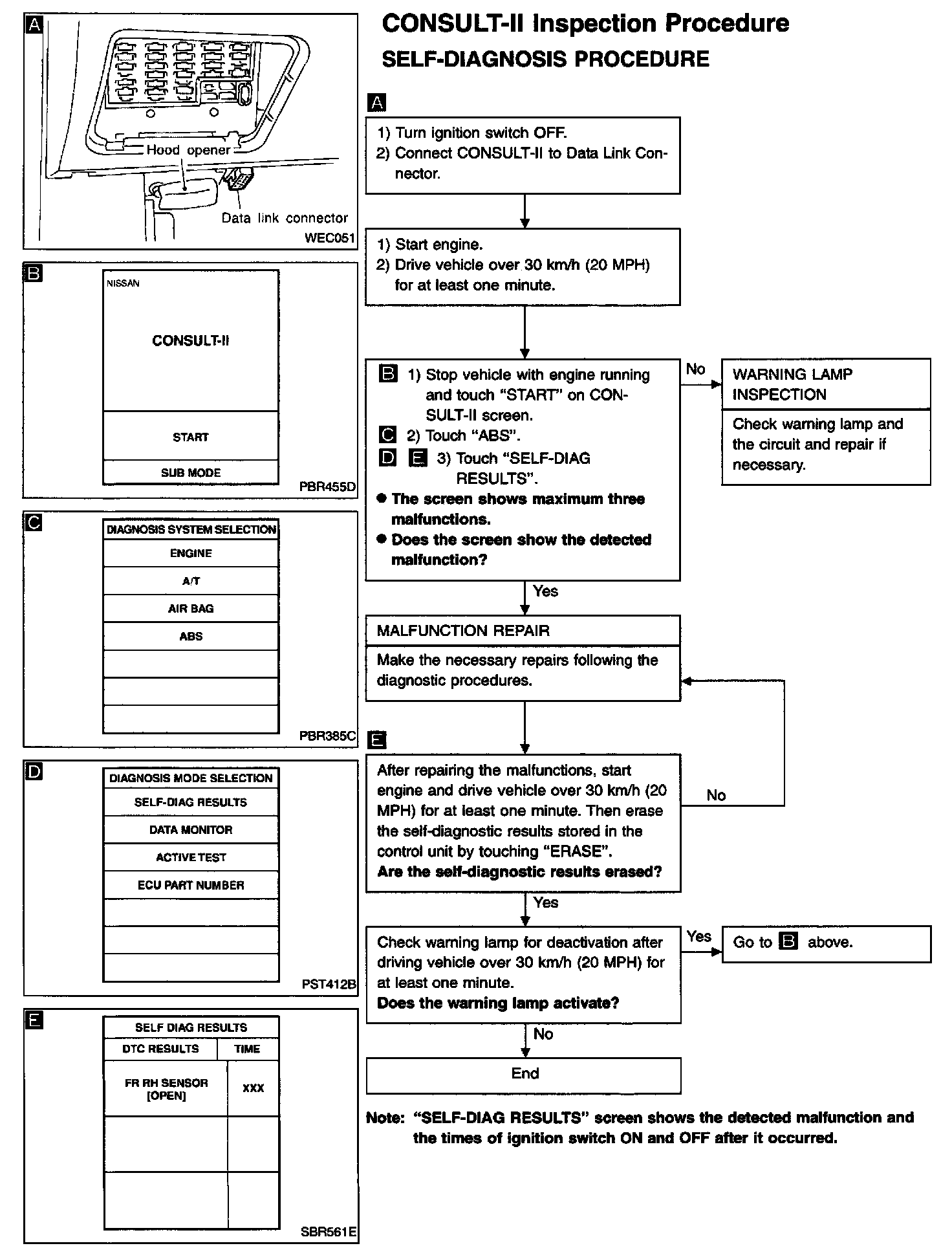

CONSULT - II Inspection Procedure





SELF-DIAGNOSIS PROCEDURE

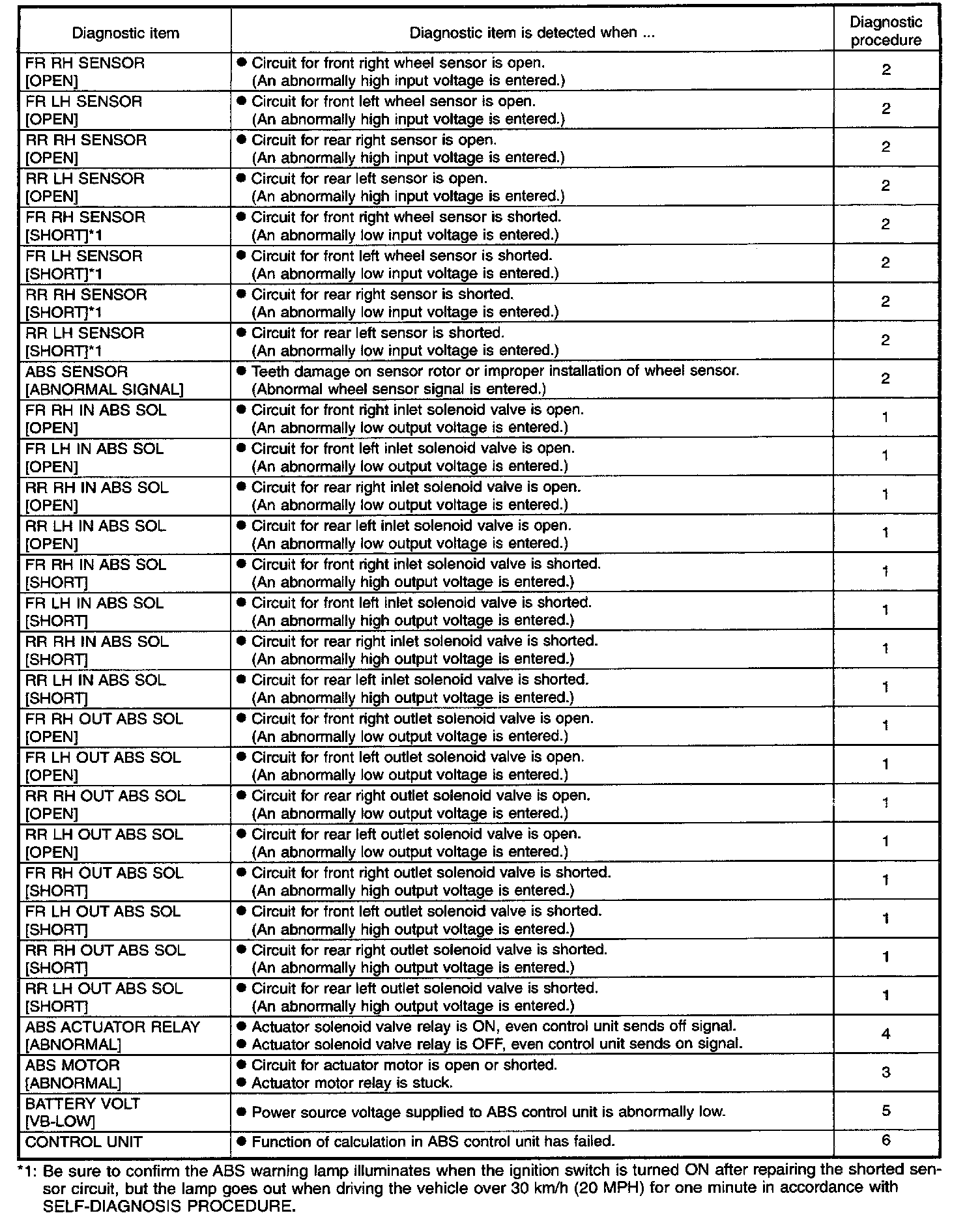

SELF-DIAGNOSTIC RESULTS MODE

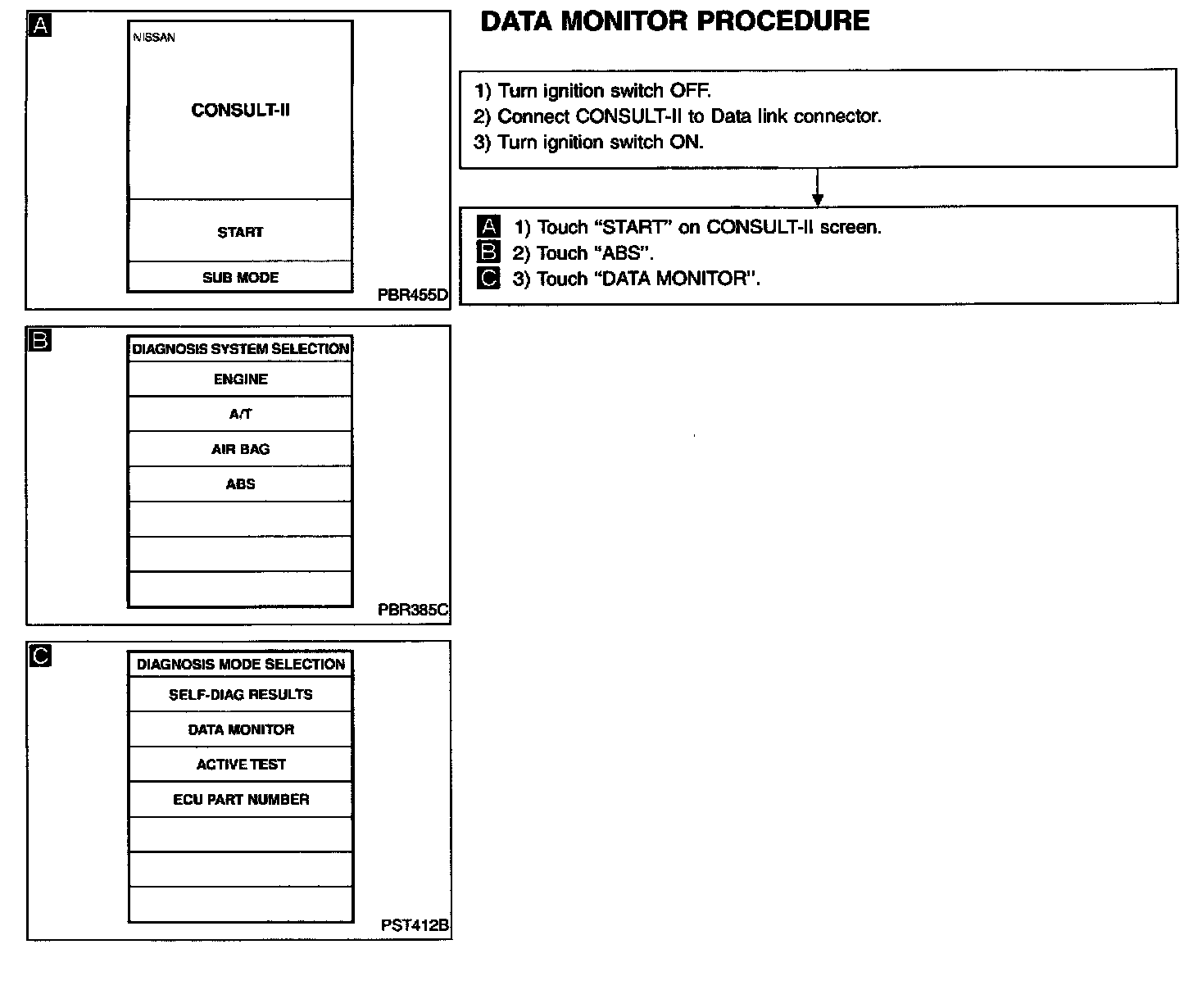

DATA MONITOR PROCEDURE

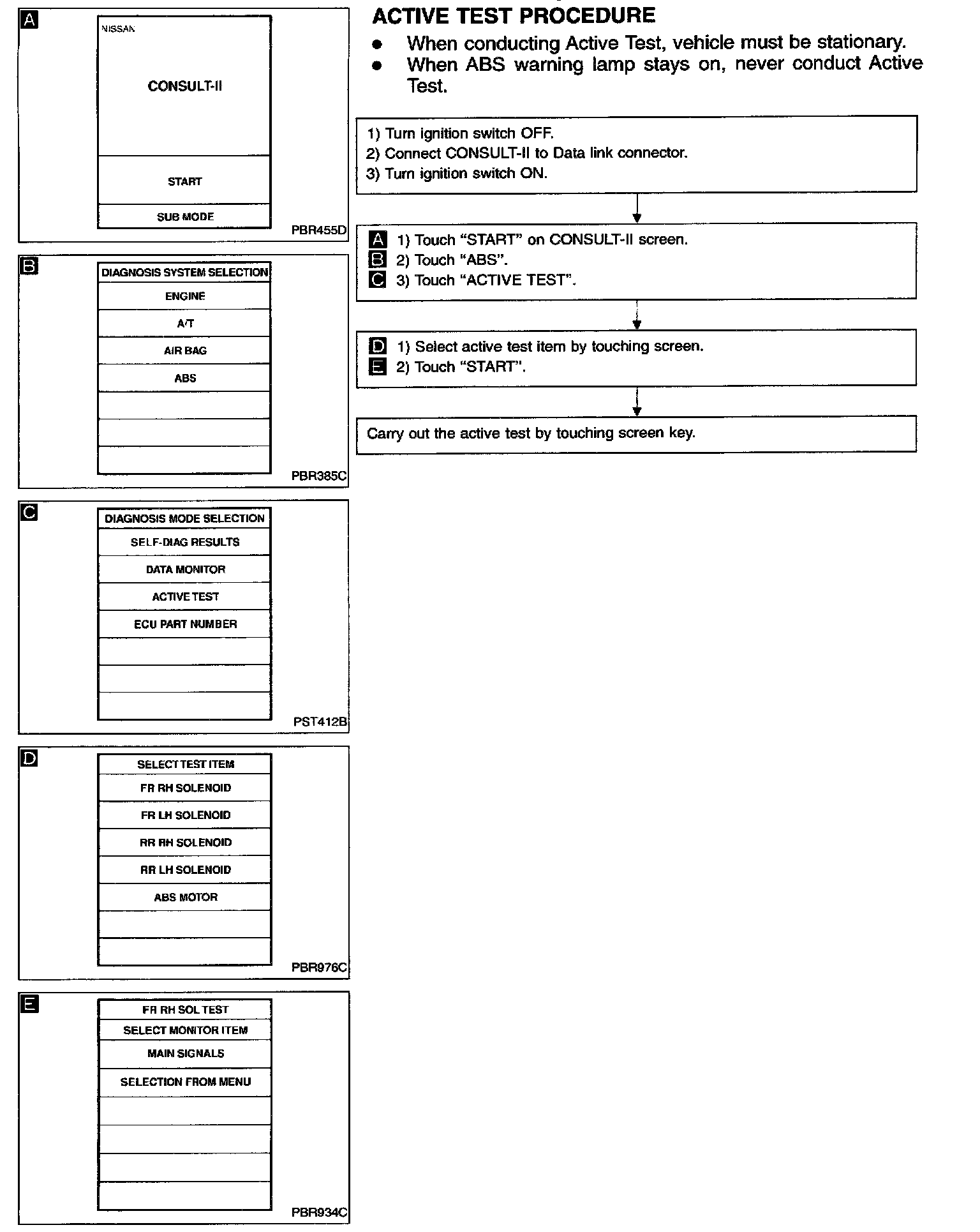

ACTIVE TEST PROCEDURE

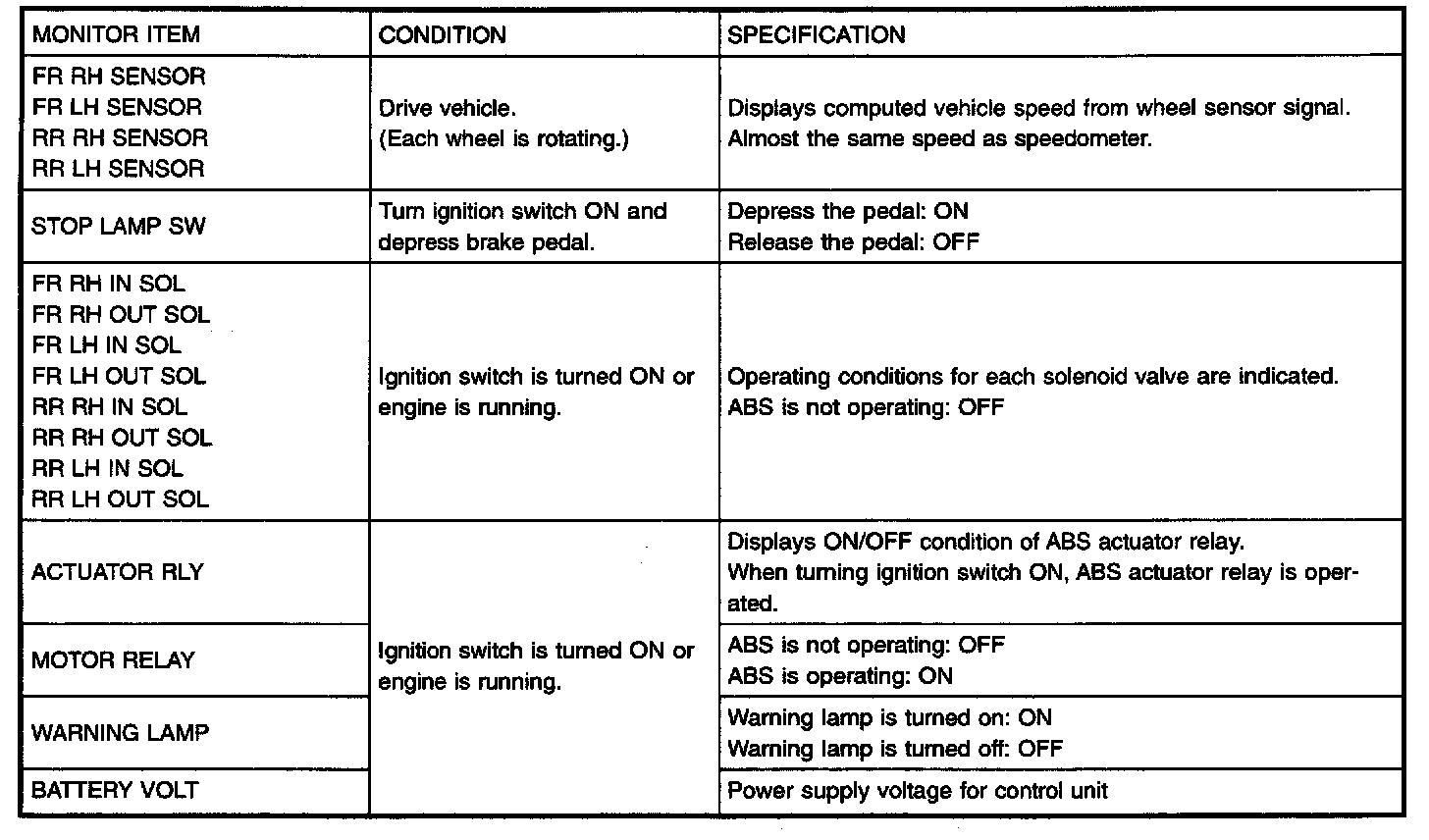

DATA MONITOR MODE

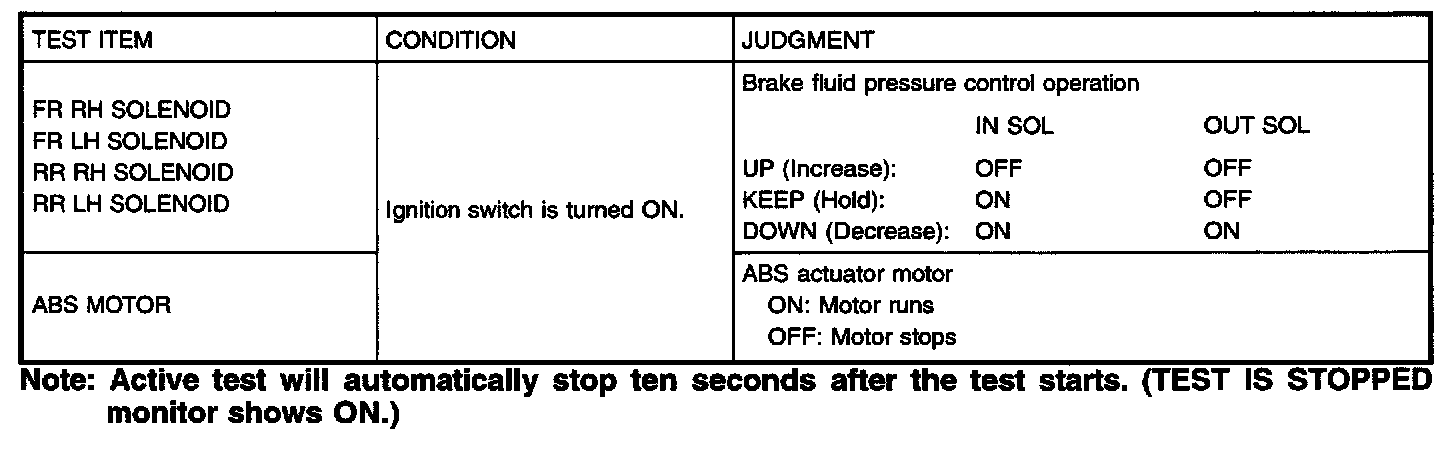

ACTIVE TEST MODE
