Side and Floor Trim

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

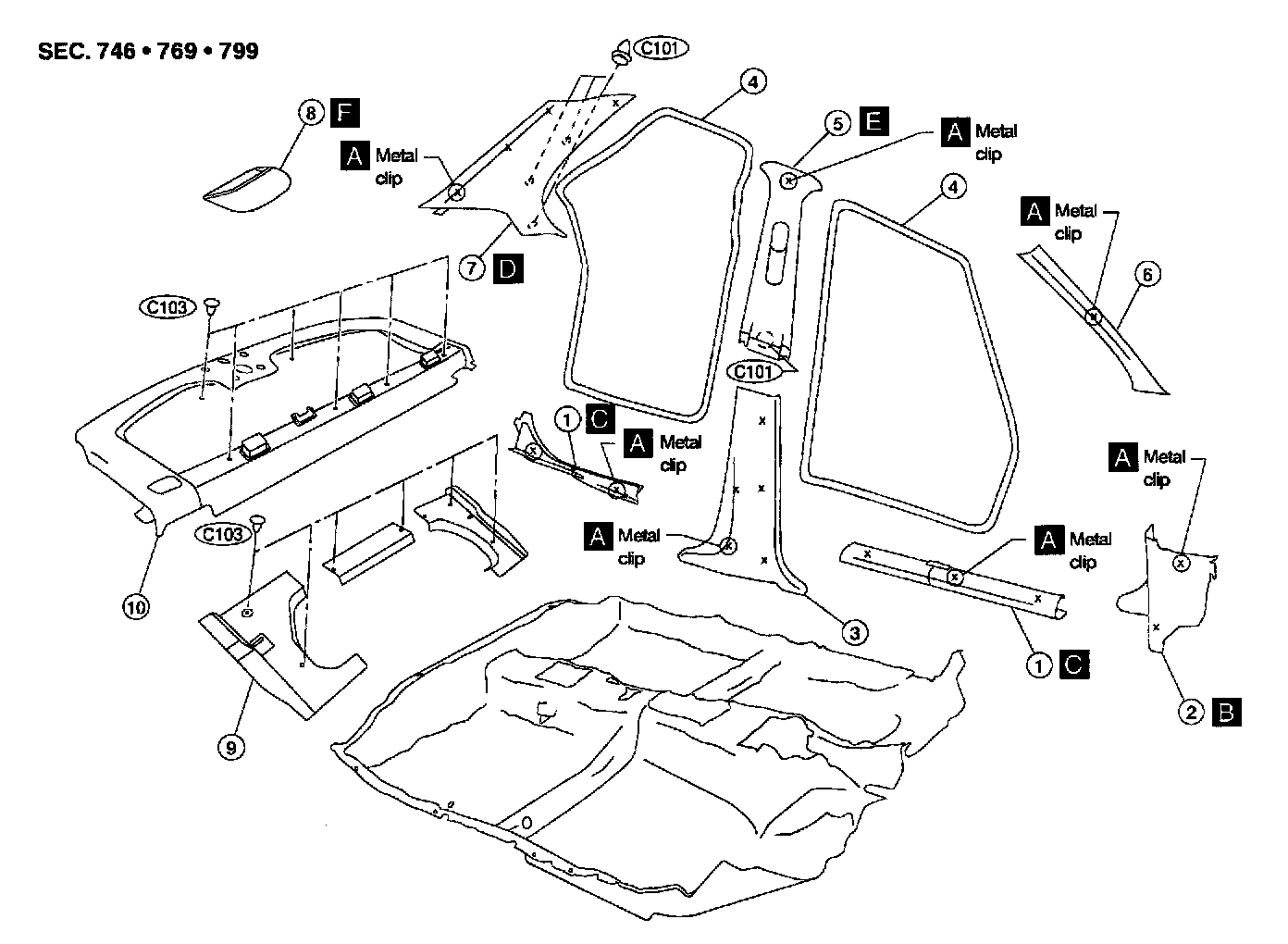

Part 1 Of 2:

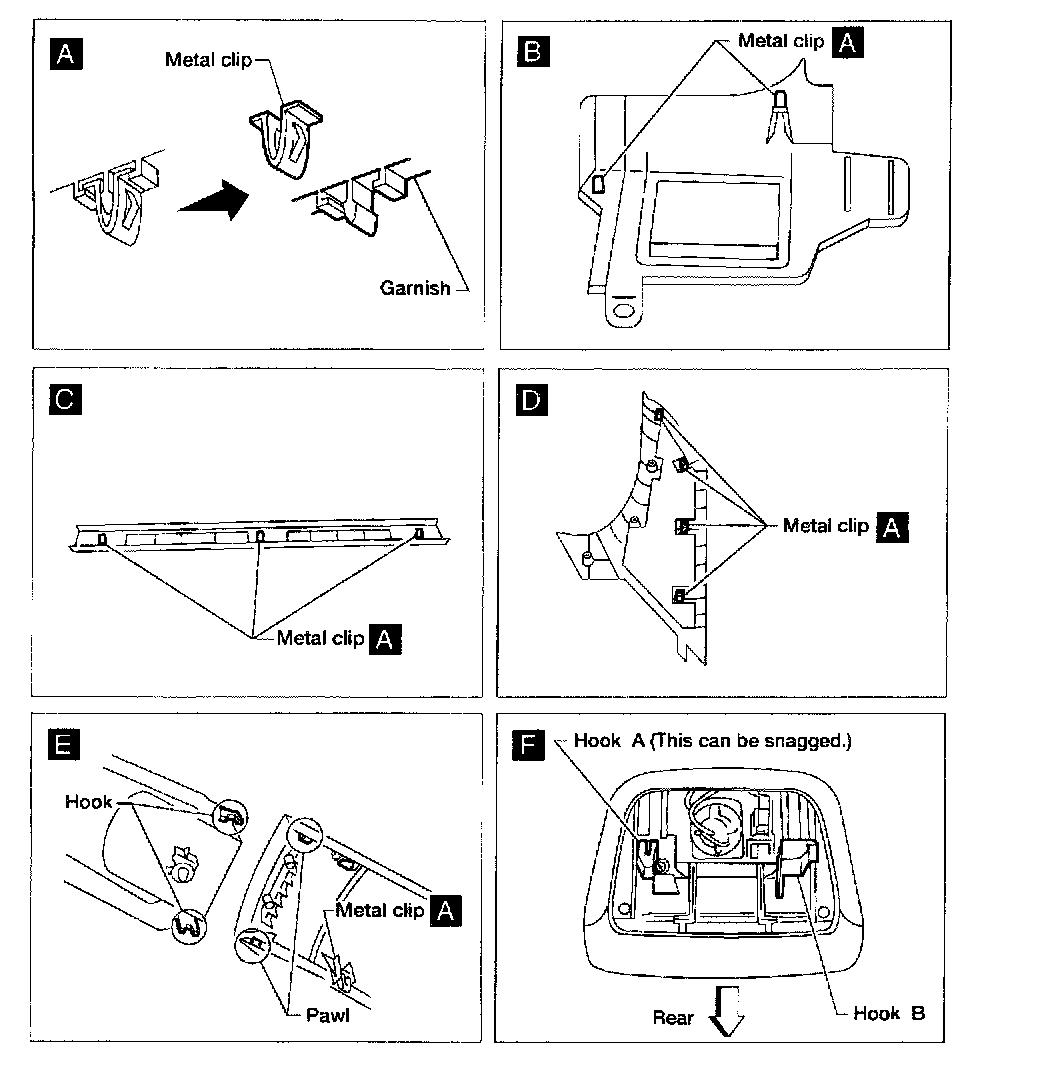

Part 2 Of 2:

REMOVAL - Body side trim
Remove front and rear seats and Seatbelts.
1. Remove front and rear kick plates. [C]
2. Remove dash side finisher. [B]
3. Remove center pillar lower garnish.
4. Remove front and rear body side welts.
5. Remove center pillar upper gamish. [E]
6. Remove front pillar garnish.
7. Remove rear pillar garnish. [D]
8. Remove center high mount stop lamp. [F]
9. Remove rear seat finisher.
10. Remove rear parcel shelf.
