Initial Inspection
Initial Inspection

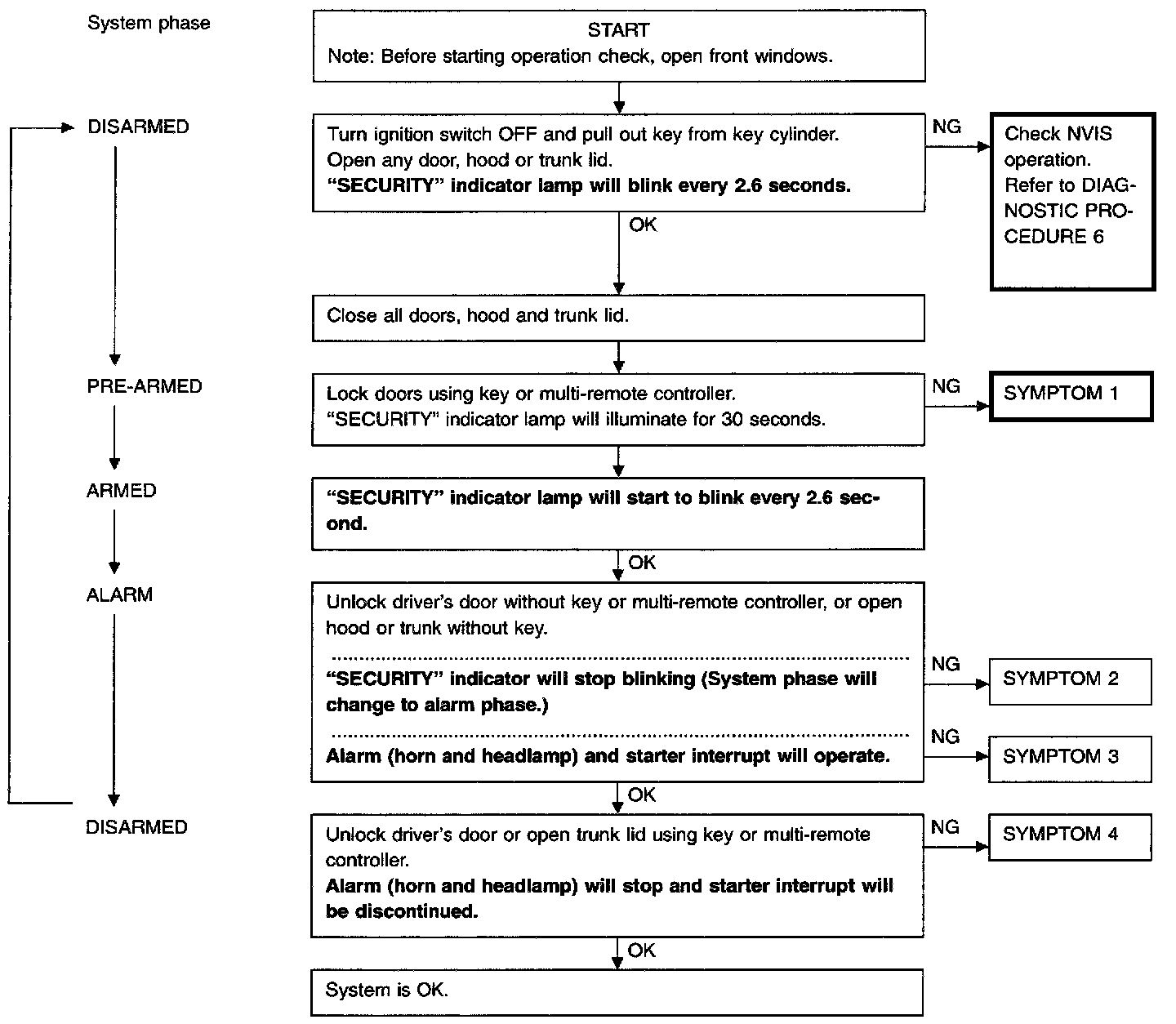

PRELIMINARY CHECK
The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.
After performing preliminary check, go to symptom chart.
